Park Position Solenoid Operation Chart

WARNING: This page is about a different variant/trim than selected.
PARK POSITION CLUTCH APPLICATION CHART

Base Selector Lever Position PCM Commanded Gear Shift Solenoid TCC (VFS) NL
SSA (VFS) NL (1, 2, 3, 4) SSB (VFS) NH (3, 5, R) SSC (VFS) NL (2, 6) SSD (VFS) NH (L, R/4, 5, 6) SSE (On/Off) NC
P P Off On Off Off On Off
NC = Normally closed
NH = Normally high
NL = Normally low

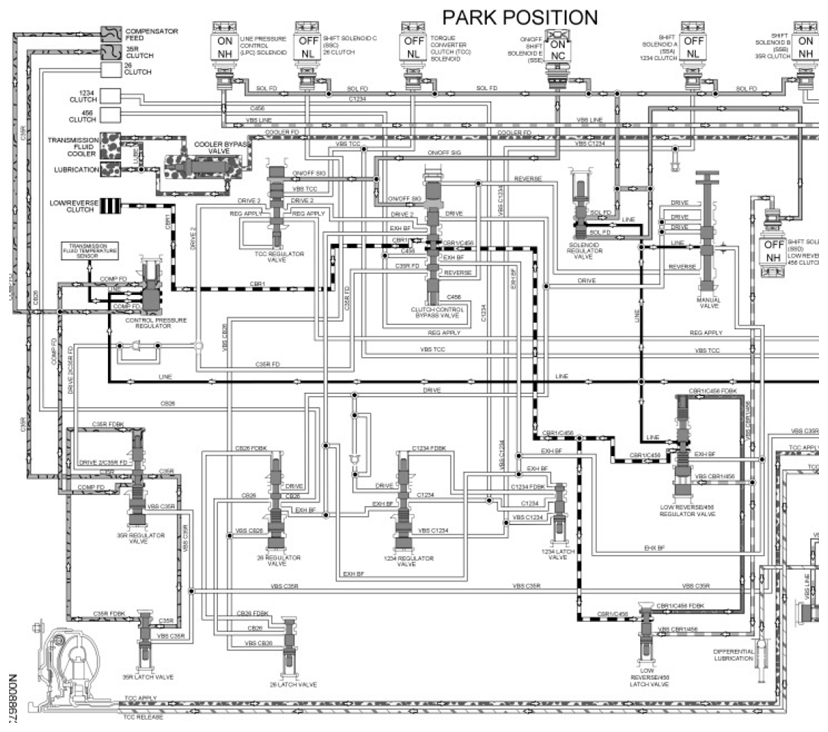

Fig 1: Park Position Power Flow Diagram
G07443710Courtesy of FORD MOTOR CO.
