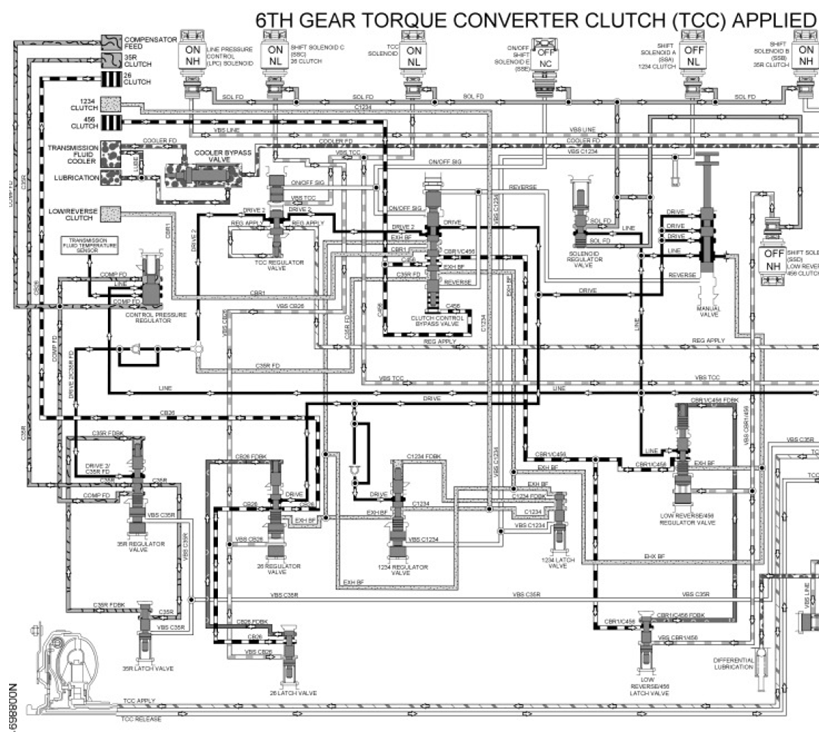

6th Gear TCC Applied Solenoid Operation Chart
WARNING: This page is about a different variant/trim than selected.
6TH GEAR TCC APPLIED CLUTCH APPLICATION CHART
| Base Selector Lever Position | PCM Commanded Gear | Shift Solenoid | TCC (VFS) NL | ||||
|---|---|---|---|---|---|---|---|
| SSA (VFS) NL (1, 2, 3, 4) | SSB (VFS) NH (3, 5, R) | SSC (VFS) NL (2, 6) | SSD (VFS) NH (L, R/4, 5, 6) | SSE (On/Off) NC | |||
| D | 6 | Off | On | On | Off | Off | On |
| NC = Normally closed NH = Normally high NL = Normally low |
|||||||
