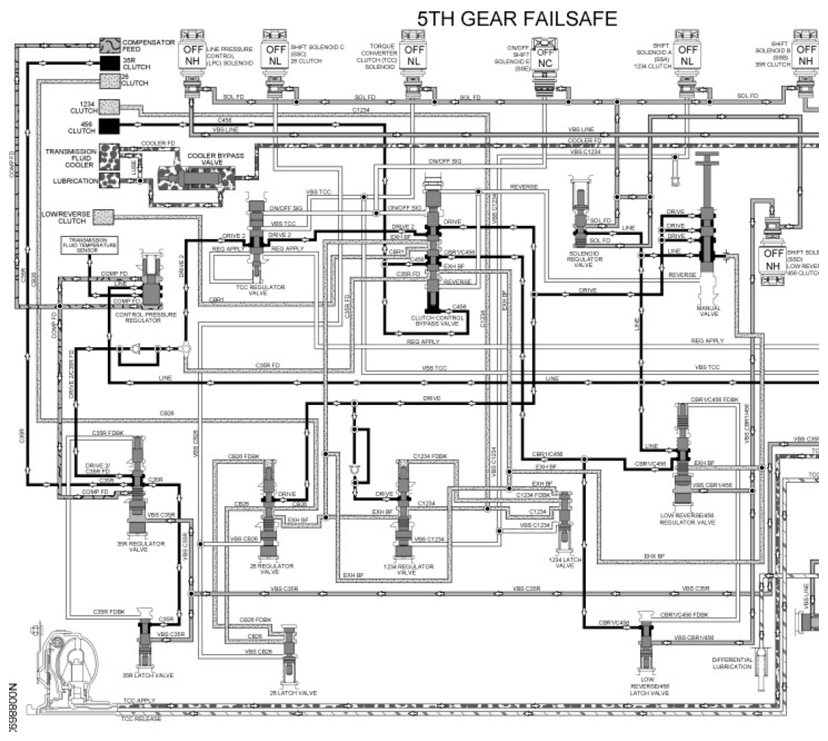

5th Gear Failsafe Solenoid Operation Chart
WARNING: This page is about a different variant/trim than selected.
5TH GEAR FAILSAFE CLUTCH APPLICATION CHART
| Base Selector Lever Position |
PCM Commanded Gear |
Shift Solenoid |
| SSA (VFS) NL (1, 2, 3, 4) |
SSB (VFS) NH (3, 5, R) |
SSC (VFS) NL (2, 6) |
SSD (VFS) NH (L, R/4, 5, 6) |
SSE (On/Off) NC |
| D |
5 |
Off |
Off |
Off |
Off |
Off |
NC = Normally closed
NH = Normally high
NL = Normally low |
Courtesy of FORD MOTOR CO.
