Section 11 (Automatic Transmission (6F35) (Except Hybrid))
>>
Description And Operation
>>
Transaxle Operation
>>
2nd Gear
>>
Notes
2nd Gear: Notes
WARNING:
This page is about a different variant/trim than selected.

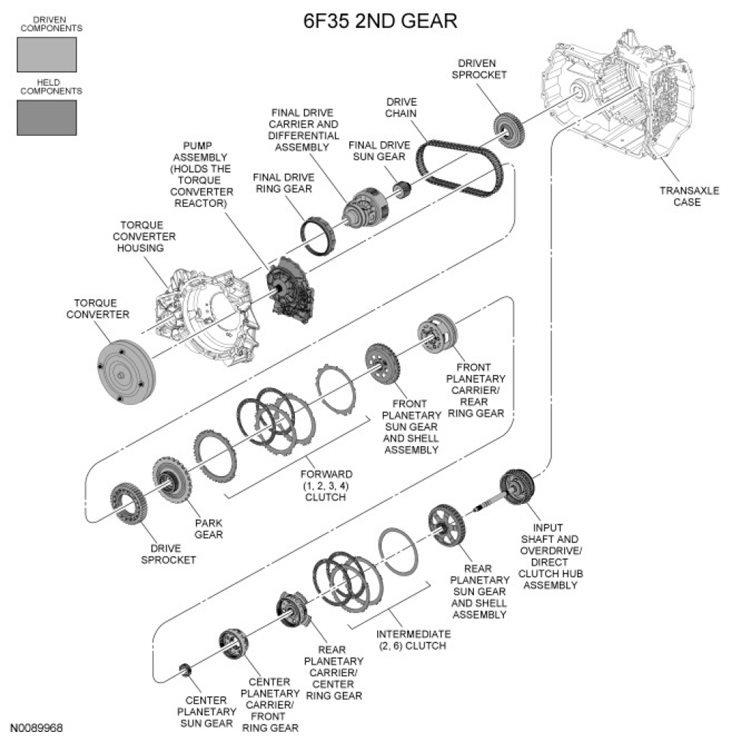

Fig 1: Exploded View Of 6F35 2nd Gear Components
Courtesy of FORD MOTOR CO.
