Section 11 (Automatic Transmission (6F35) (Except Hybrid))
>>
Description And Operation
>>
Transaxle Electronic Control System
>>
Line Pressure Control (LPC) Solenoid
>>
Line Pressure Control (LPC) Inversely Proportional Variable Force Solenoid (VFS)
Line Pressure Control (LPC) Inversely Proportional Variable Force Solenoid (VFS)
WARNING:
This page is about a different variant/trim than selected.

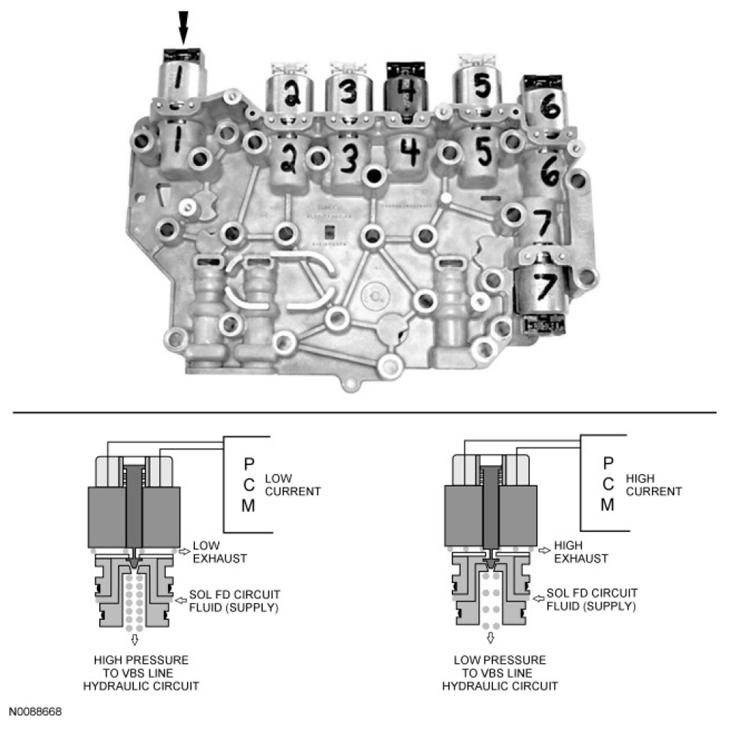

Fig 1: Line Pressure Control Inversely Proportional Variable Force Solenoid Flow Diagram
Courtesy of FORD MOTOR CO.
