Torque Converter Operation
WARNING: This page is about a different variant/trim than selected.

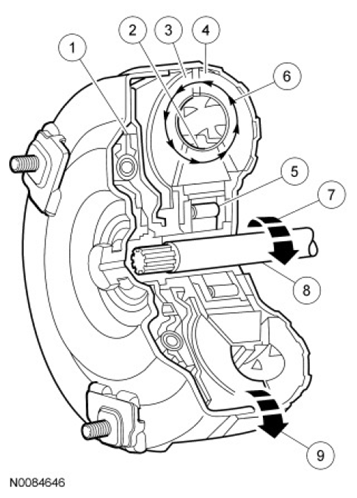

ITEM DESCRIPTION CHART
| Item | Description |
|---|---|
| 1 | Torque Converter Clutch (TCC) |
| 2 | Reactor |
| 3 | Turbine |
| 4 | Impeller and cover assembly |
| 5 | One-Way Clutch (OWC) |
| 6 | Fluid motion |
| 7 | Input shaft rotation |
| 8 | Input shaft |
| 9 | Engine rotation |
The Torque Converter Clutch (TCC) connects the torque converter housing to the damper when the TCC is applied.
During TCC release, the direction that the transmission fluid flows through the torque converter allows the TCC to release. During TCC apply, the transmission fluid flows in the opposite direction to apply the TCC .
The PCM controls TCC operation using the TCC solenoid in the solenoid body. TCC solenoid operation provides the modulation of hydraulic pressure to change the position of the TCC control valve and TCC regulator apply valve which changes the pressure and transmission fluid direction in the torque converter.
The TCC can be applied in 3rd, 4th, 5th and 6th gears.
