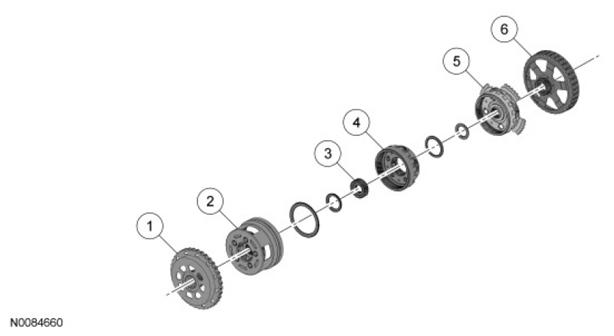

Planetary Gearset Exploded View
WARNING: This page is about a different variant/trim than selected.
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 7A019 | Front planetary sun gear and shell assembly |
| 2 | 7D491 | Front planetary carrier/rear planetary ring gear assembly |
| 3 | 7D063 | Gear - center planetary sun |
| 4 | 7D491 | Center planetary carrier/front ring gear assembly |
| 5 | 7D491 | Rear planetary carrier/center ring gear assembly |
| 6 | 7A019 | Rear planetary sun gear and shell assembly |
