Low One-Way Clutch (OWC) Exploded View

WARNING: This page is about a different variant/trim than selected.

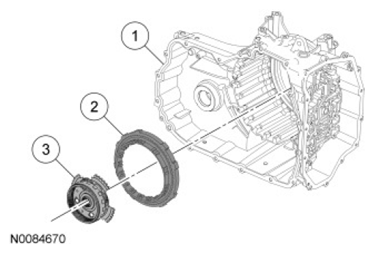

Fig 1: Exploded View Of Low One-Way Clutch (OWC) Components
G07443659Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 7005 Transaxle case
2 7A089 Low One-Way Clutch (OWC)
3 7D491 Rear planetary carrier
