Front Planetary Carrier Hub Exploded View

WARNING: This page is about a different variant/trim than selected.

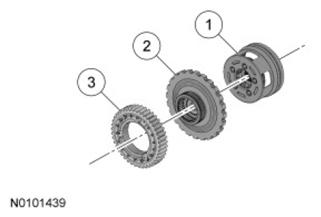

Fig 1: Exploded View Of Front Planetary Carrier Hub Components
G07443643Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 7D491 Front planetary carrier
2 7060 Front planetary carrier hub/park gear
3 7G132 Drive chain drive sprocket
