Forward (1, 2, 3, 4) Clutch Exploded View

WARNING: This page is about a different variant/trim than selected.

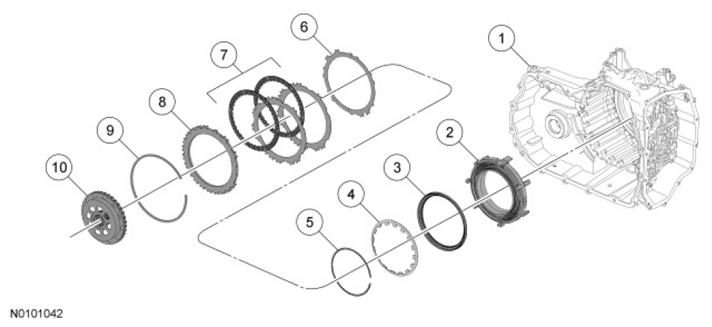

Fig 1: Exploded View Of Forward (1, 2, 3, 4) Clutch Components
G07443653Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 7005 Transaxle case
2 7L328 Center support
3 7A262 Forward clutch piston
4 7B070 Forward clutch piston return spring
5 7H365 Forward clutch piston return spring snap ring
6 7B070 Forward clutch wave spring
7 7B164 Forward (1, 2, 3, 4) clutch
8 7B066 Forward clutch pressure plate
9 7D483 Forward clutch snap ring
10 7A019 Front sun gear and shell assembly
