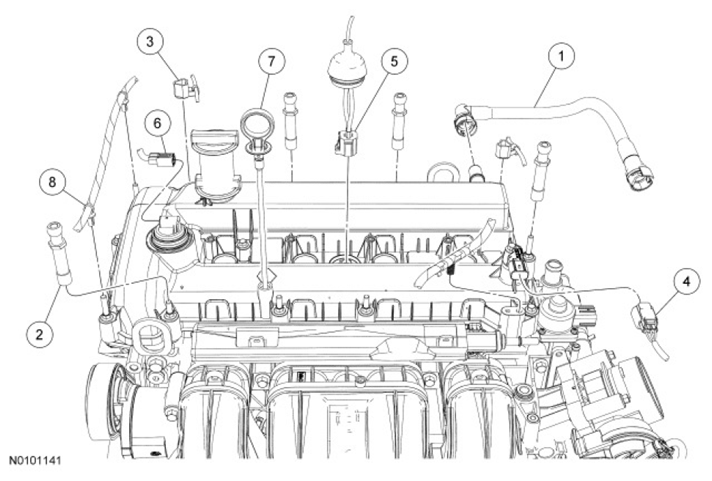

Valve Cover (View 1 of 2)
WARNING: This page is about a different variant/trim than selected.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 6853 | Crankcase vent hose |
| 2 | 6A957 | Engine cover stud (4 required) |
| 3 | 14A163 | Wire harness retainer (part of 12A581) |
| 4 | 14A464 | Camshaft Position (CMP) sensor electrical connector (part of 12A581) |
| 5 | 14A464 | Cylinder Head Temperature (CHT) sensor electrical connector (part of 12A581) |
| 6 | 14A464 | Variable Camshaft Timing (VCT) solenoid electrical connector (part of 12A581) |
| 7 | 6750 | Oil level indicator |
| 8 | - | High-voltage wiring harness retainer (2 required) |
