Oil Pump: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the engine in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING article.
  2. Remove the engine front cover. For additional information, refer to ENGINE FRONT COVER  in this service information.
  3. Drain the engine oil, then install the drain plug.
    • To install, tighten to 28 Nm (21 lb-ft).
  4. Remove the 4 oil pan-to-bellhousing bolts.
  5. Remove the 13 bolts and the oil pan.
    6. NOTE: Discard the gasket and clean and inspect the gasket mating surfaces.
  6. Remove the 2 bolts and the oil pump screen and pickup tube.
  7. Remove the oil pump drive chain tensioner.
    1. Release the tension on the tensioner spring.
    2. Remove the 2 shoulder bolts and the tensioner.

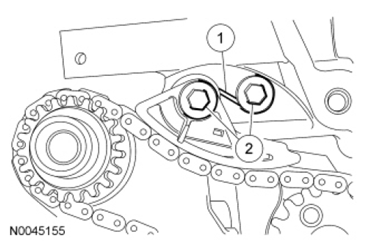

      Fig 1: Locating Shoulder Bolts And Tensioner
      G07441830Courtesy of FORD MOTOR CO.
  8. Remove the chain from the oil pump sprocket.
  9. Remove the bolt and oil pump sprocket.
  10. Remove the 4 bolts and the oil pump.
