Oil Pump: Installation
WARNING: This page is about a different variant/trim than selected.

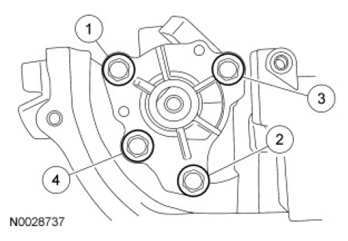

- Install the oil pump assembly. Tighten the 4 bolts in the sequence shown in illustration in 2 stages:
- Stage 1: Tighten to 10 Nm (89 lb-in).
- Stage 2: Tighten to 20 Nm (177 lb-in).
- Install the oil pump sprocket and bolt.
- Tighten to 25 Nm (18 lb-ft).
- Install the chain onto the oil pump sprocket.

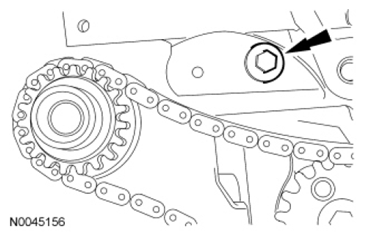

- Install the oil pump drive chain tensioner shoulder bolt.
- Tighten to 10 Nm (89 lb-in).

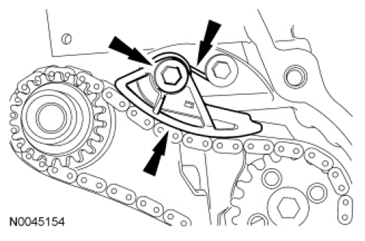

- Install the oil pump drive chain tensioner and bolt. Hook the tensioner spring around the shoulder bolt.
- Tighten to 10 Nm (89 lb-in).
- Install the oil pump screen and pickup tube and the 2 bolts.
- Tighten to 10 Nm (89 lb-in).
- Clean all mating surfaces with metal surface prep.

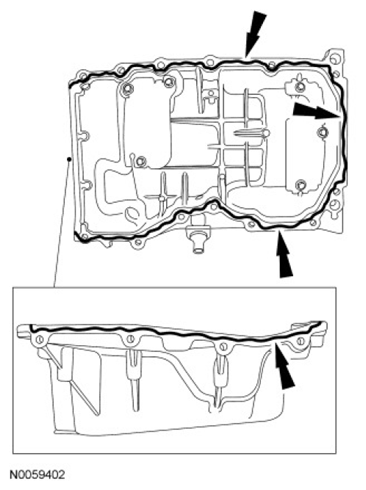

- Apply a 2.5 mm (0.09 in) bead of sealant gasket and sealant to the oil pan.
- Position the oil pan onto the engine and install the 2 rear oil pan bolts finger-tight.

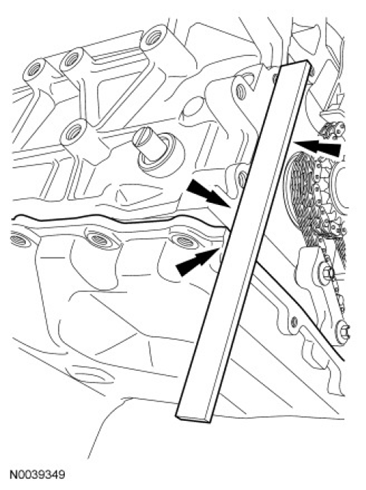

- Using a suitable straight edge, align the front surface of the oil pan flush with the front surface of the engine block.
- Install the remaining oil pan bolts.

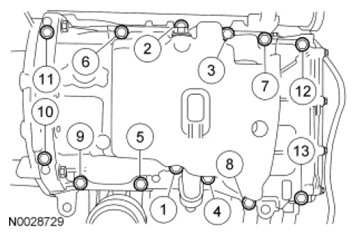

- Tighten in the sequence shown in illustration to 25 Nm (18 lb-ft).
- Install the 4 oil pan-to-bellhousing bolts.
- Tighten to 48 Nm (35 lb-ft).
- Install the engine front cover. For additional information, refer to ENGINE FRONT COVER in this service information.
- Fill the engine with clean engine oil.
NOTE:
Clean the oil pump and cylinder block mating surfaces with metal surface prep.
NOTE:
Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces to sealant.
NOTE:
If the oil pan is not secured within 4 minutes of sealant application, the sealant must be removed and the sealing area cleaned with metal surface prep. Allow to dry until there is no sign of wetness, or 4 minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.
