Crankshaft Pulley and Crankshaft Front Oil Seal
WARNING: This page is about a different variant/trim than selected.

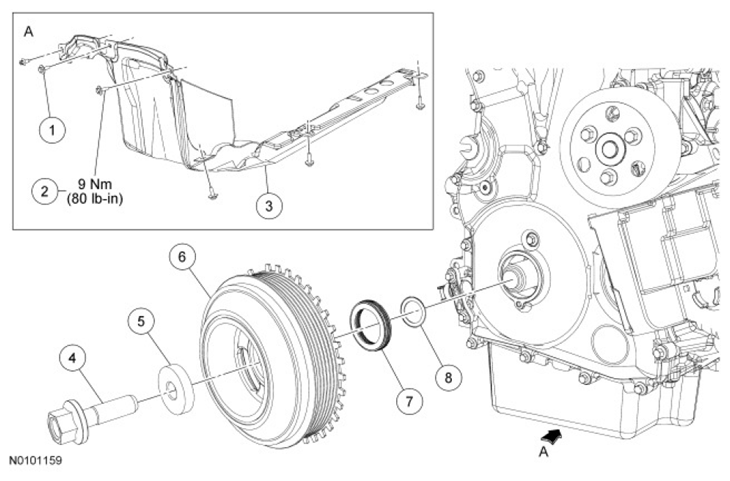

Fig 1: Exploded View Of Crankshaft Pulley And Crankshaft Front Oil Seal Components With Torque Specifications
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W706713 | RH splash shield pin-type retainer |
| 2 | W707257 | RH splash shield bolt (5 required) |
| 3 | 16A573 | RH splash shield |
| 4 | 6K340 | Crankshaft pulley bolt |
| 5 | - | Crankshaft pulley washer (part of 6K340) |
| 6 | 6316 | Crankshaft pulley |
| 7 | 6700 | Crankshaft front seal |
| 8 | 6378 | Diamond washer |
