Intake Manifold (View 2 of 2)

WARNING: This page is about a different variant/trim than selected.

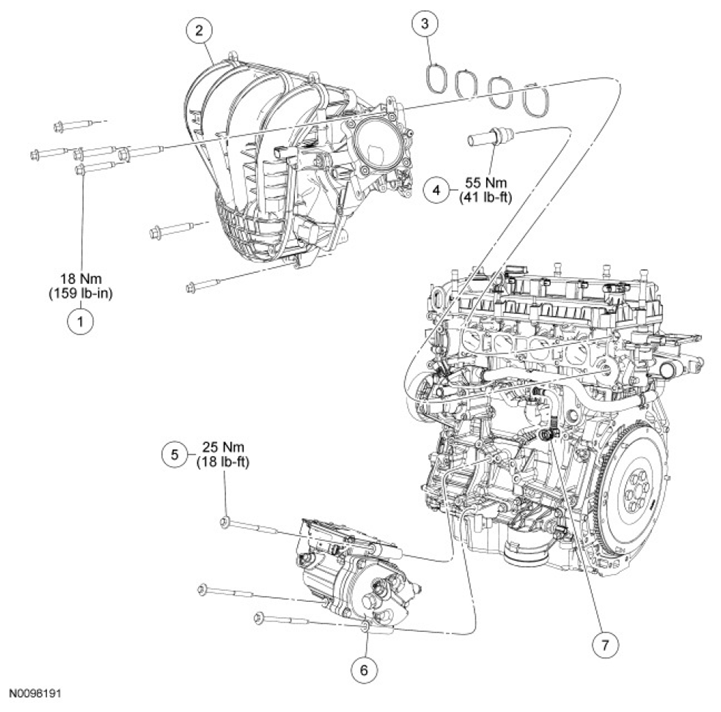

Fig 1: Intake Manifold Replacement Components With Torque Specifications (View 2 Of 2)
G07441662Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 W500311 Intake manifold bolt (7 required)
2 9424 Intake manifold
3 9441 Intake manifold gasket (4 required)
4 9E470 EGR tube
5 W500326 A/C compressor bolt (3 required)
6 19703 A/C compressor
7 6758 PCV hose connector
