Oil Pan, Oil Pump Screen and Pickup Tube
WARNING: This page is about a different variant/trim than selected.

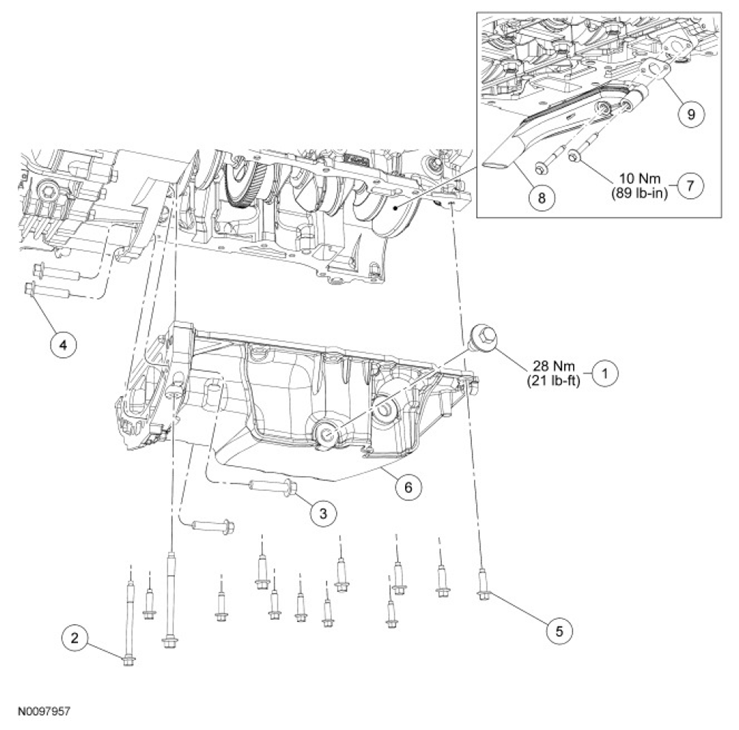

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 6730 | Drain plug |
| 2 | W706284 | Oil pan bolt (2 required) |
| 3 | W500122 | Oil pan-to-bellhousing bolt (2 required) |
| 4 | W500122 | Bellhousing-to-oil pan bolt (2 required) |
| 5 | W500224 | Oil pan bolt (11 required) |
| 6 | 6675 | Oil pan |
| 7 | W706282 | Oil pump screen and pickup tube bolt (2 required) |
| 8 | 6622 | Oil pump screen and pickup tube |
| 9 | 6625 | Oil pump screen and pickup tube gasket |
