Crankshaft Pulley: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install a new diamond washer.
  2. NOTE: Do not install the crankshaft pulley bolt at this time.
    NOTE: Apply clean engine oil on the seal area before installing.

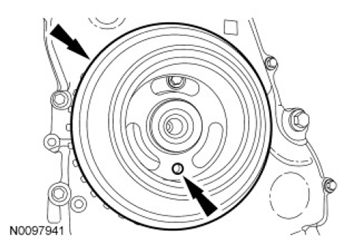

    Fig 1: Locating Crankshaft Pulley Hole
    G07441680Courtesy of FORD MOTOR CO.
  3. Position the crankshaft pulley onto the crankshaft with the hole in the pulley at the 6 o'clock position.
  4. NOTE: Only hand-tighten the 6 mm x 18 mm bolt or damage to the front cover can occur.
    NOTE: This step will correctly align the crankshaft pulley to the crankshaft.

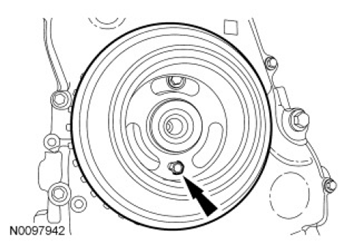

    Fig 2: Locating Bolt Through Crankshaft Pulley
    G07441681Courtesy of FORD MOTOR CO.
  5. Install a 6 mm x 18 mm bolt through the crankshaft pulley and thread it into the front cover.
  6. NOTE: The crankshaft must remain in the TDC  position during installation of the pulley bolt or damage to the engine can occur. Therefore, the crankshaft pulley must be held in place with the Crankshaft Damper Holding Tool and the bolt should be installed using hand tools only.
    NOTE: Do not reuse the crankshaft pulley bolt.
  7. Install a new crankshaft pulley bolt. Use the Crankshaft Damper Holding Tool and a suitable 1/2-in drive hand tool to hold the crankshaft pulley, tighten the crankshaft pulley bolt in 2 stages:
    • Stage 1: Tighten to 100 Nm (74 lb-ft).
    • Stage 2: Tighten an additional 90 degrees.

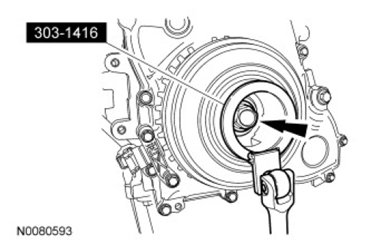

      Fig 3: Remove/Install Crankshaft Pulley Bolt Using Crankshaft Damper Holding Tool
      G07441682Courtesy of FORD MOTOR CO.
  8. Remove the 6 mm x 18 mm bolt.

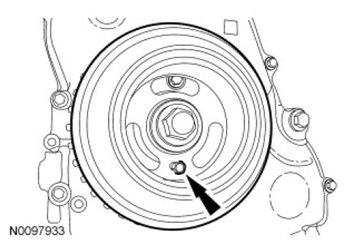

    Fig 4: Locating Crankshaft Pulley Bolt
    G07441683Courtesy of FORD MOTOR CO.
  9. Remove the Crankshaft TDC  Timing Peg.
    Fig 5: Locating Crankshaft TDC Timing Peg
    G07441684Courtesy of FORD MOTOR CO.
  10. Remove the Camshaft Alignment Plate.
    Fig 6: Identifying Camshaft Alignment Plate
    G07441685Courtesy of FORD MOTOR CO.
  11. NOTE: Only turn the engine in the normal direction of rotation.
  12. Turn the crankshaft clockwise one and three-fourths turns.
  13. Install the Crankshaft TDC  Timing Peg.
    Fig 7: Locating Crankshaft TDC Timing Peg
    G07441686Courtesy of FORD MOTOR CO.
  14. NOTE: Only turn the engine in the normal direction of rotation.

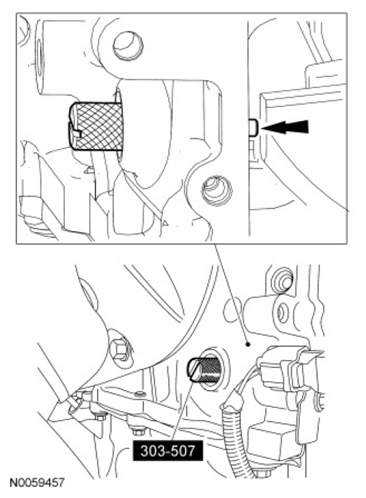

    Fig 8: Remove/Install Crankshaft TDC Timing Peg
    G07441687Courtesy of FORD MOTOR CO.
  15. Turn the crankshaft clockwise until the crankshaft contacts the Crankshaft TDC  Timing Peg.
  16. NOTE: Only hand-tighten the bolt or damage to the front cover can occur.
  17. Using the 6 mm x 18 mm bolt, check the position of the crankshaft pulley.
    • If it is not possible to install the bolt, the engine valve timing must be corrected by repeating this procedure.
      Fig 9: Locating Crankshaft Pulley Bolt
      G07441688Courtesy of FORD MOTOR CO.
  18. Install the Camshaft Alignment Plate to check the position of the camshafts.
    • If it is not possible to install the Camshaft Alignment Plate, the engine valve timing must be corrected by repeating this procedure.
      Fig 10: Identifying Camshaft Alignment Plate
      G07441689Courtesy of FORD MOTOR CO.
  19. Remove the Camshaft Alignment Plate.
    Fig 11: Identifying Camshaft Alignment Plate

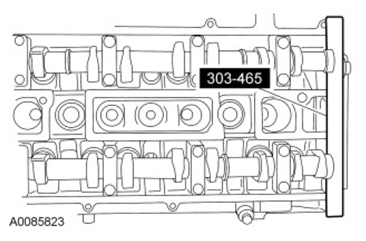

    G07441690Courtesy of FORD MOTOR CO.
  20. Remove the 6 mm x 18 mm bolt.
    Fig 12: Locating Crankshaft Pulley Bolt
    G07441691Courtesy of FORD MOTOR CO.
  21. Remove the Crankshaft TDC  Timing Peg.

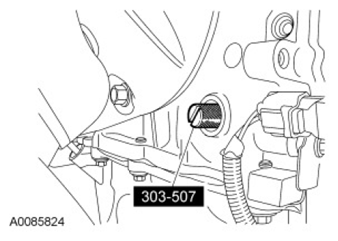

    Fig 13: Locating Crankshaft TDC Timing Peg
    G07441692Courtesy of FORD MOTOR CO.
  22. Install the engine plug bolt.
    • Tighten to 20 Nm (177 lb-in).
  23. Install the accessory drive belt. For additional information, refer to ACCESSORY DRIVE - HYBRID article.
  24. Install the RF wheel and tire. For additional information, refer to TIRES & WHEELS article.
  25. Install the valve cover. For additional information, refer to VALVE COVER  in this service information.
