Lower End Components - Exploded View, Crankshaft Pulley and Crankshaft Front Seal

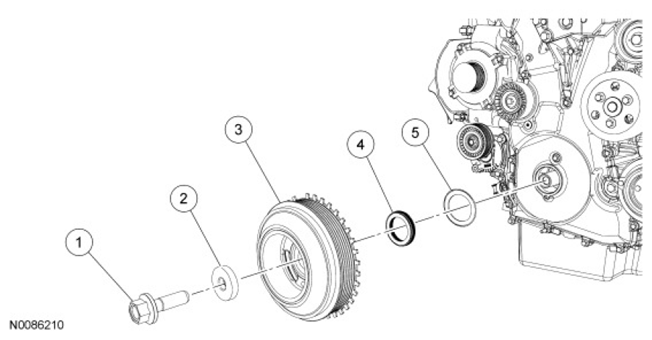

Fig 1: Exploded View Of Lower End Components

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	6K340	Crankshaft pulley bolt
2	-	Crankshaft pulley washer (part of 6K340)
3	6316	Crankshaft pulley
4	6700	Crankshaft front seal
5	6378	Diamond washer

1. For additional information, refer to the appropriate procedures in this service information.
