Glass, Frames and Mechanisms - Exploded View, Rear Door

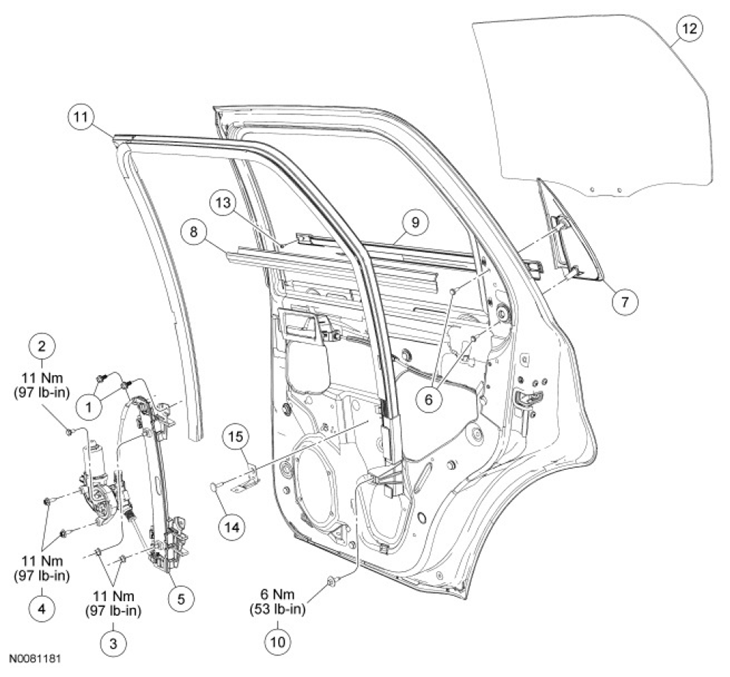

Fig 1: Exploded View Of Rear Door Glass, Frames And Mechanisms Components With Torque Specifications
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W707195 | Rear door window glass screws (2 required) |
| 2 | W701753 | Window regulator and motor bolt |
| 3 | W502111 | Window regulator and motor nuts (2 required) |
| 4 | - | Window regulator and motor bolts (2 required) |
| 5 | 23200 | Window regulator and motor |
| 6 | - | Rear door exterior sail panel screws (2 required) |
| 7 | 254A16 | Rear door exterior sail panel |
| 8 | 25842 | Interior door glass weatherstrip |
| 9 | 25554 | Exterior door glass weatherstrip |
| 10 | W500213 | Rear door glass top run bolt |
| 11 | 25766 | Rear door glass top run |
| 12 | 25712 | Rear door window glass |
| 13 | - | Exterior door glass weatherstrip screw |
| 14 | N805651 | Bracket bolt |
| 15 | - | Bracket |
- For additional information, refer to the appropriate procedure in this service information.
