Parking, Rear and License Lamps

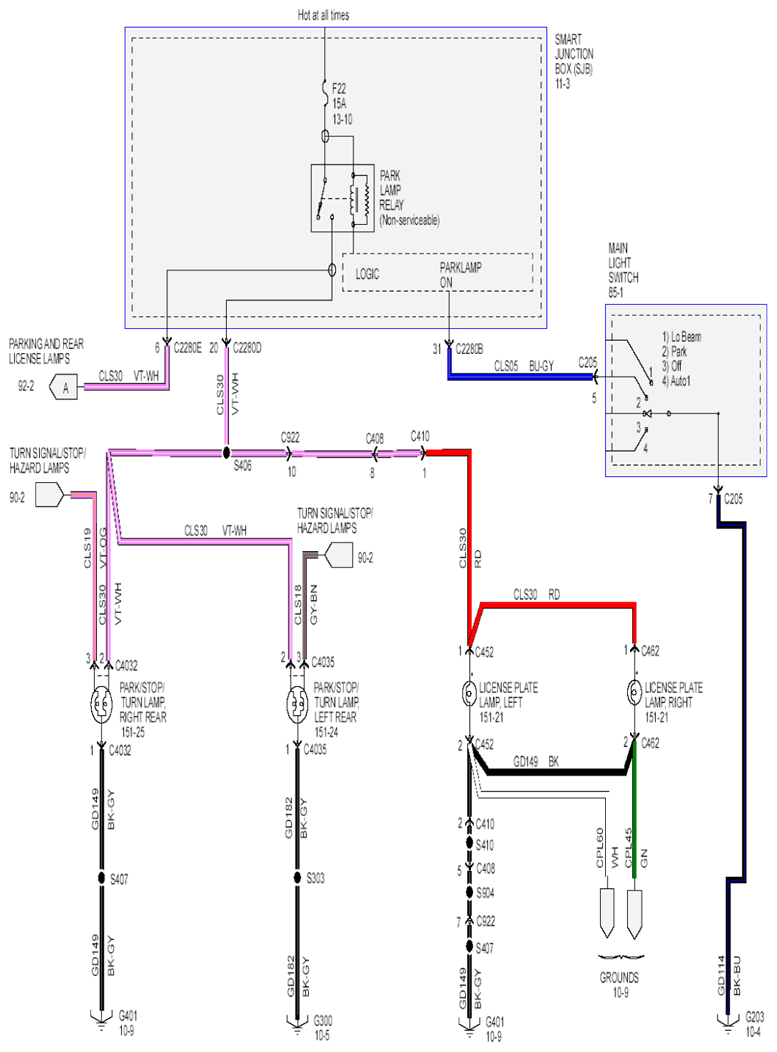

Fig 1: Parking, Rear And License Lamps Schematic (1 Of 2)

G07855394

Courtesy of FORD MOTOR CO.

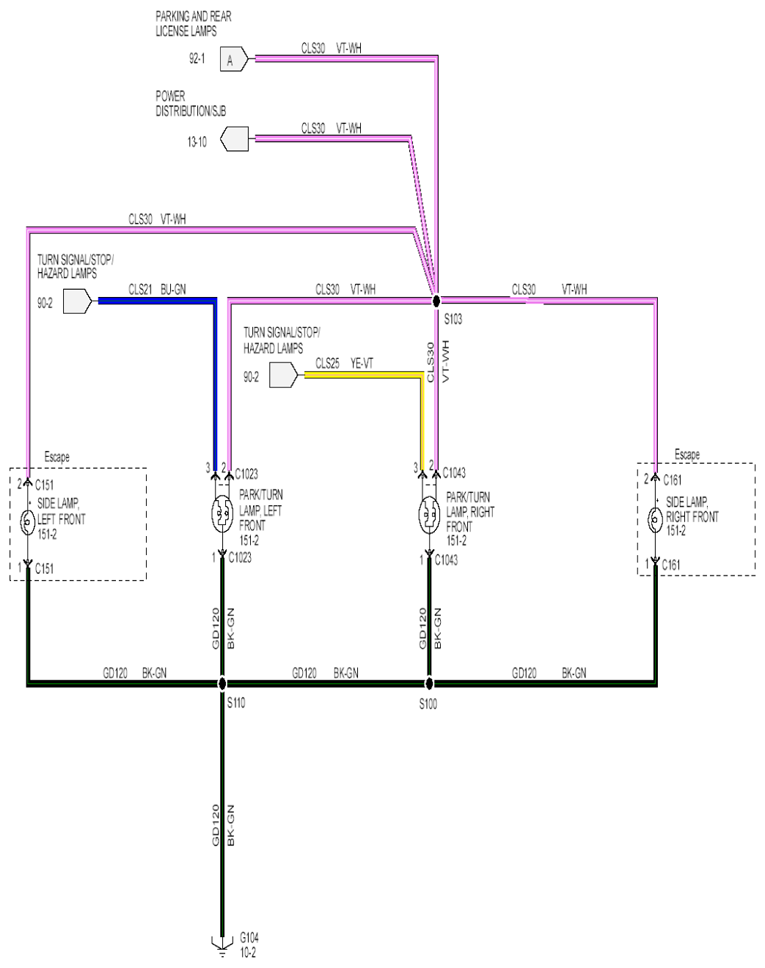

Fig 2: Parking, Rear And License Lamps Schematic (2 Of 2)

G07855395

Courtesy of FORD MOTOR CO.
