Without Roof Opening Panel

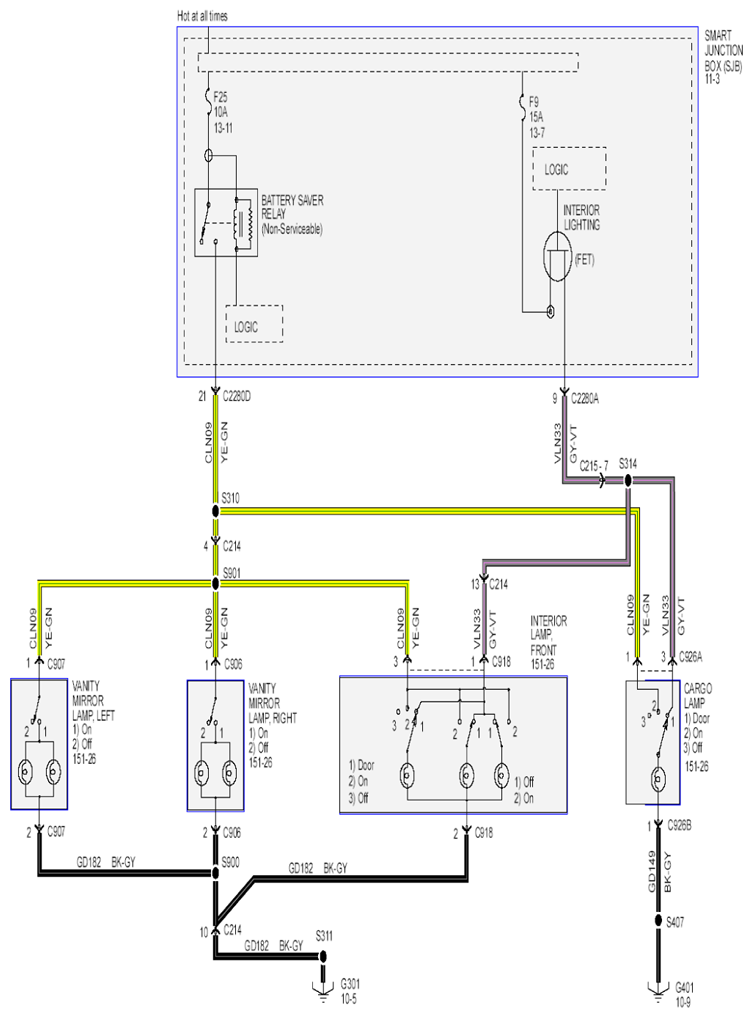

Fig 1: Interior Lamps Schematic - Without Roof Opening Panel (1 Of 3)
G07855389Courtesy of FORD MOTOR CO.

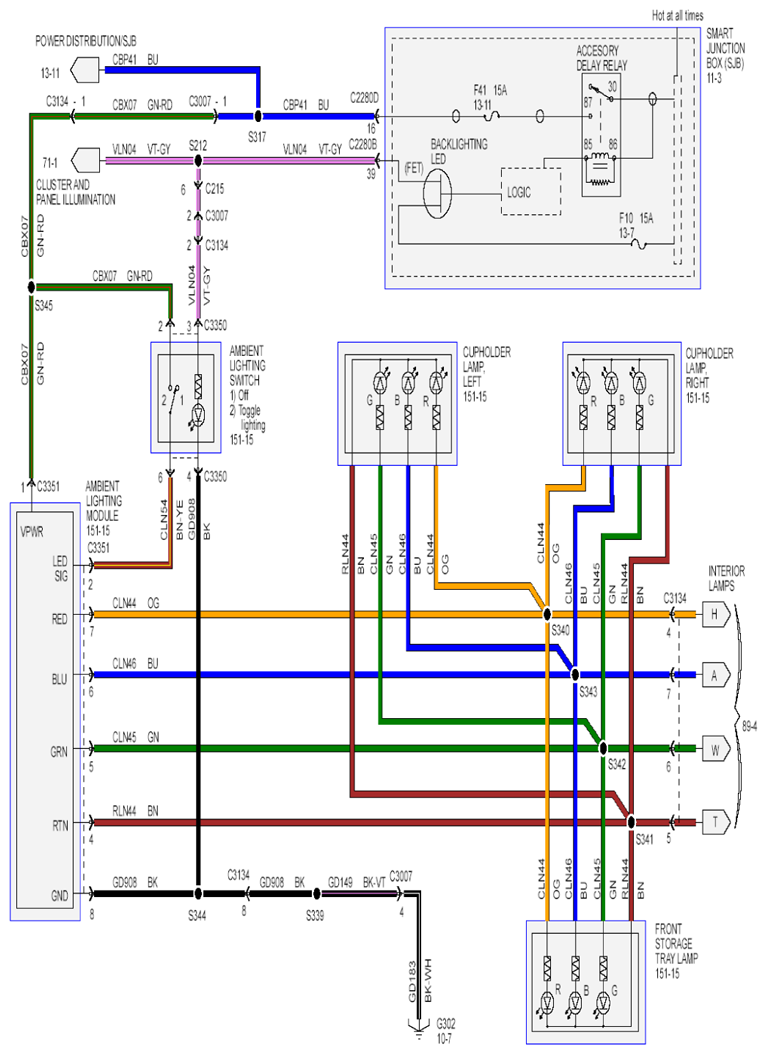

Fig 2: Interior Lamps Schematic - Without Roof Opening Panel (2 Of 3)
G07855390Courtesy of FORD MOTOR CO.

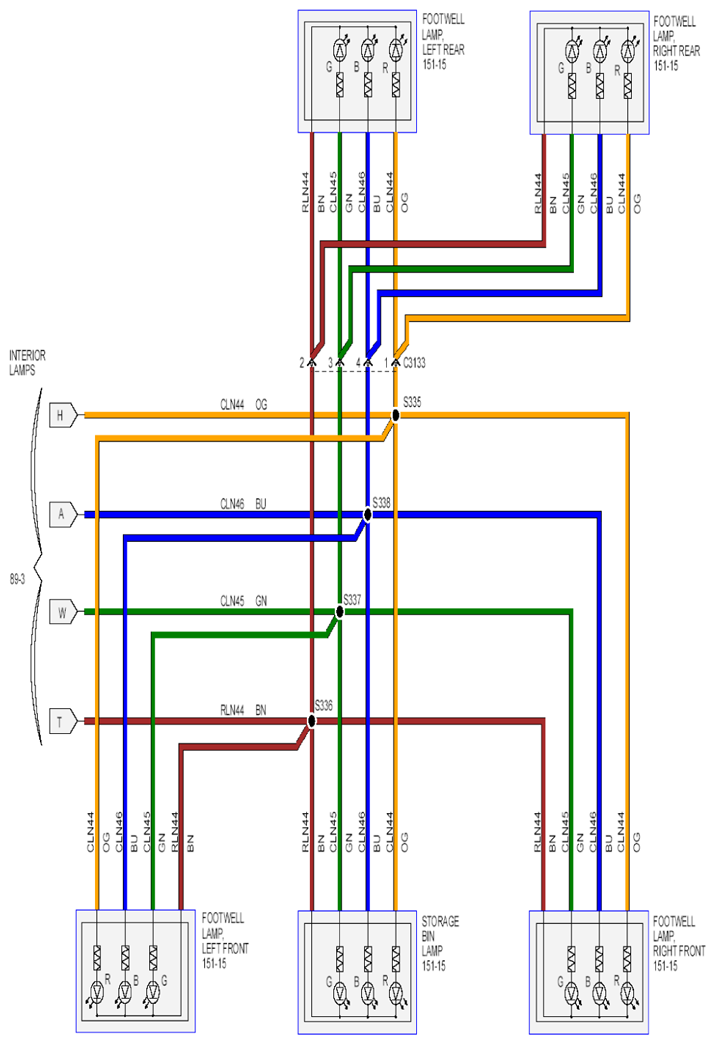

Fig 3: Interior Lamps Schematic - Without Roof Opening Panel (3 Of 3)
G07855391Courtesy of FORD MOTOR CO.
