G300, G301

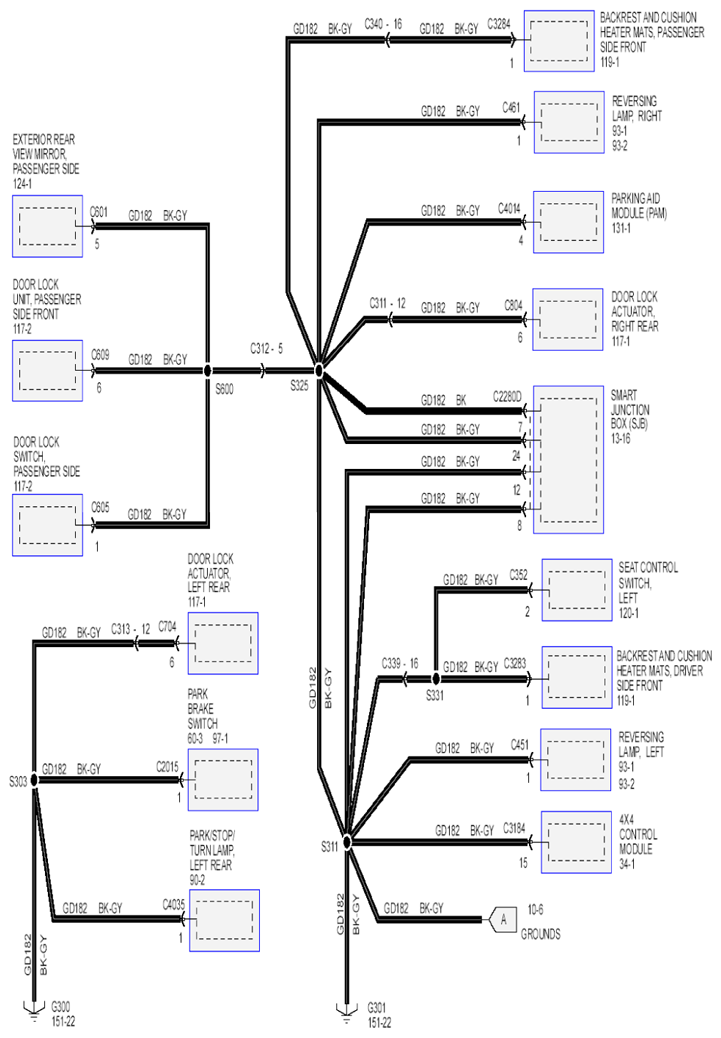

Fig 1: Grounds Schematic - G300, G301 (1 Of 2)

G07855308

Courtesy of FORD MOTOR CO.

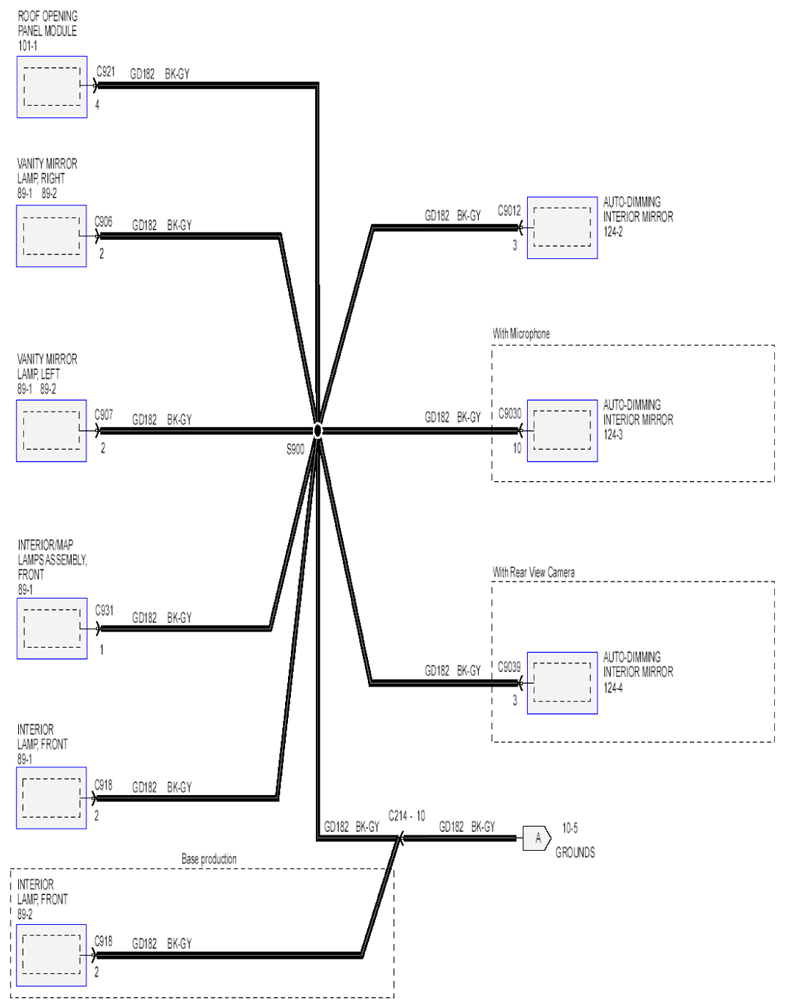

Fig 2: Grounds Schematic - G300, G301 (2 Of 2)

G07855309

Courtesy of FORD MOTOR CO.
