G100, G101, G102, G103, G105, G107, G108, G109, G110

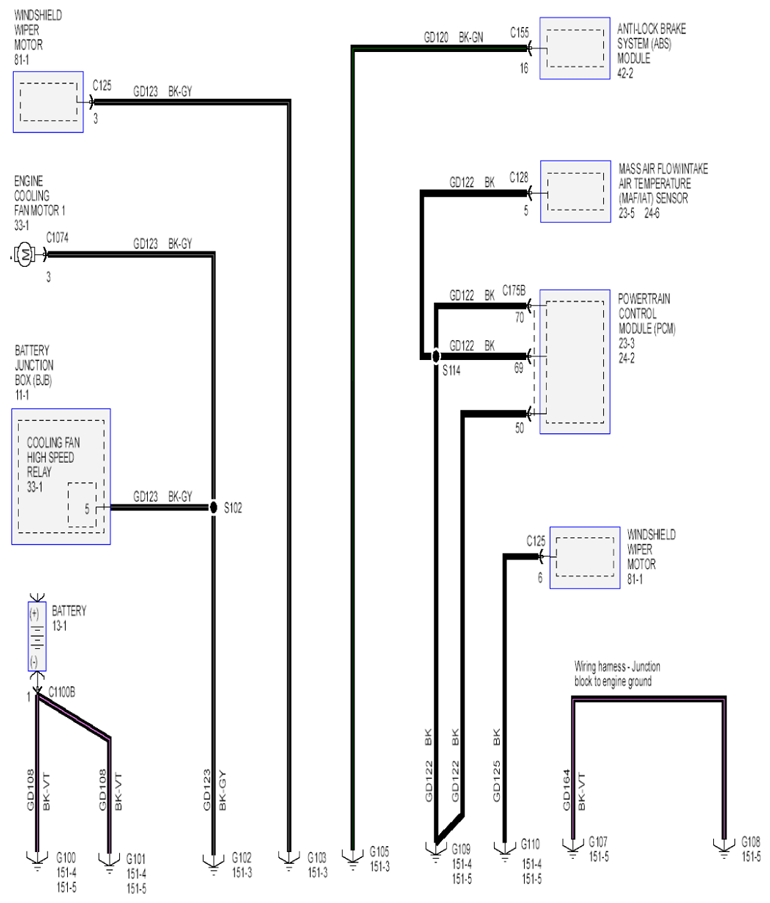

Fig 1: Grounds Schematic - G100, G101, G102, G103, G105, G107, G108, G109, G110

G07855304

Courtesy of FORD MOTOR CO.
