Thermostat - 3.0L (4V): Material
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® Premium Gold Engine Coolant VC-7-B (US); CVC-7-B (Canada) |
WSS-M97B51-A1 |
| Motorcraft® Specialty Orange Engine Coolant VC-3-B (US); CVC-3-B (Canada) |
WSS-M97B44-D |

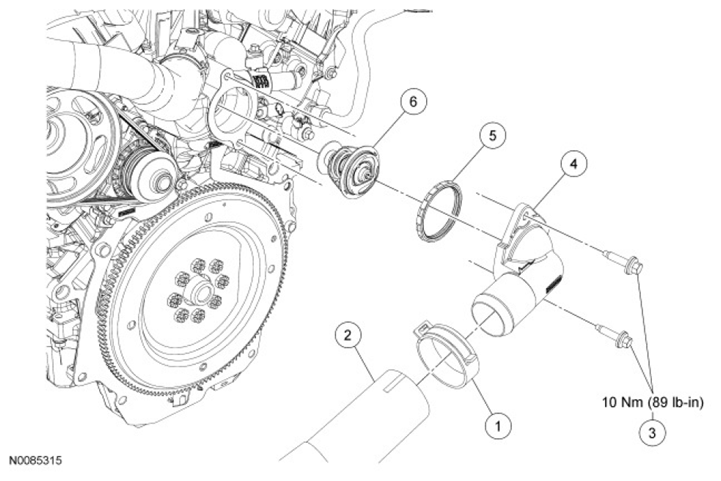

PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W527375 | Lower radiator hose clamp |
| 2 | 8B273 | Lower radiator hose |
| 3 | W500015 | Thermostat housing cover bolts (2 required) |
| 4 | 8K528 | Thermostat housing cover |
| 5 | N806807 | O-ring seal |
| 6 | 8575 | Thermostat |
