Coolant Inlet Pipe - 3.0L (4V): Material

MATERIAL SPECIFICATIONS

Item	Specification
Motorcraft® Premium Gold Engine Coolant VC-7-B (US); CVC-7-B (Canada)	WSS-M97B51-A1
Motorcraft® Specialty Orange Engine Coolant VC-3-B (US); CVC-3-B (Canada)	WSS-M97B44-D

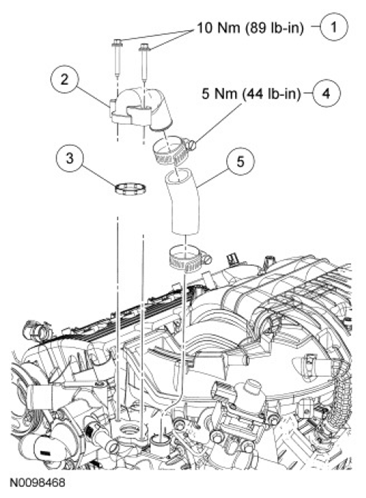

Fig 1: Coolant Inlet Pipe Replacement Components With Torque Specifications - 3.0L (4V)

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	W503281	Coolant inlet pipe bolts
2	8594	Coolant inlet pipe
3	8255	O-ring seal
4	W527485	Coolant inlet pipe clamp (2 required)
5	8B573	Coolant inlet pipe hose
