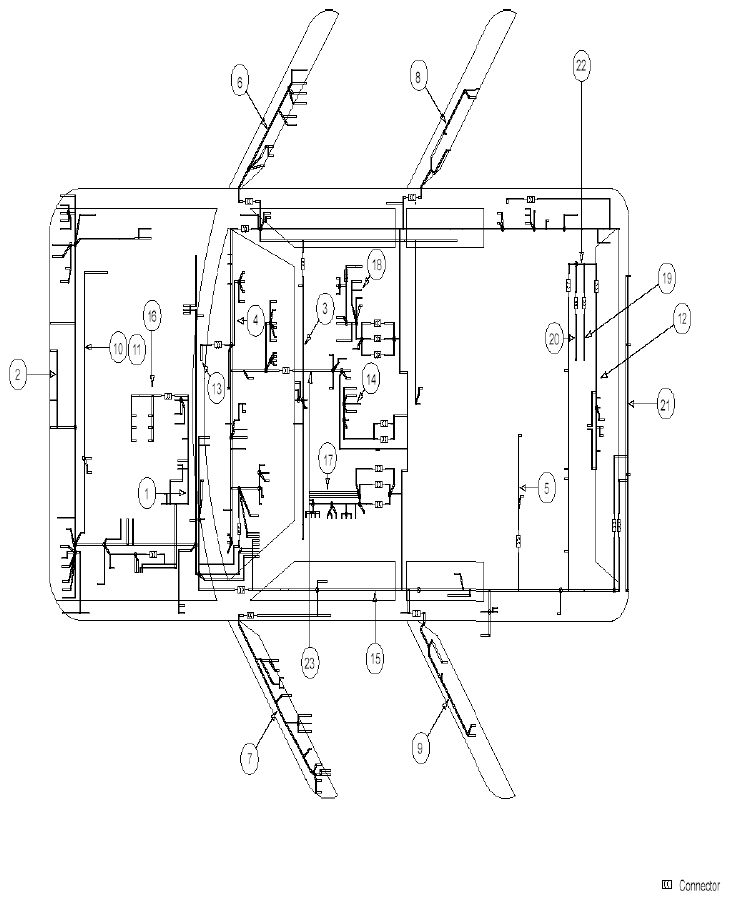

| 1 |
12C508 |
Wiring harness - Engine control sensor and fuel charge |
| 2 |
14290 |
Wiring harness - Dash panel to headlamp junction |
| 3 |
14334 |
Wiring harness - Interior lamps |
| 4 |
14401 |
Wiring harness - Main |
| 5 |
14C018 |
Wiring harness - Fuel/vapor canister |
| 6 |
14630 |
Wiring harness - Window regulator, right front door |
| 7 |
14631 |
Wiring harness - Window regulator, left front door |
| 8 |
14632 |
Wiring harness - Window regulator, right rear door |
| 9 |
14632 |
Wiring harness - Window regulator, left rear door |
| 10 |
14A120 |
Wiring harness - Battery to Starter |
| 11 |
14A280 |
Wiring harness - Battery |
| 12 |
14A583 |
Wiring harness - Tailgate warning switch |
| 13 |
19B107 |
Wiring harness - Radio jumper |
| 14 |
14B079 |
Wiring harness - Console panel |
| 15 |
14405 |
Wiring harness - Tail lamps |
| 16 |
14B485 |
Wiring harness - Fuel injector (3.0L) |
| 17 |
14C719 |
Wiring harness - Seat control feed jumper |
| 18 |
14A699 |
Wiring harness - power seats |
| 19 |
13B472 |
Wiring harness - High mounted stoplamp |
| 20 |
18C673 |
Wiring harness - Rear window switch |
| 21 |
15K868 |
Wiring harness - Parking aid sensor, rear |
| 22 |
13A412 |
Wiring harness - rear lamps jumper |
| 23 |
19A118 |
Wiring harness - SDARS/amplifier jumper |
