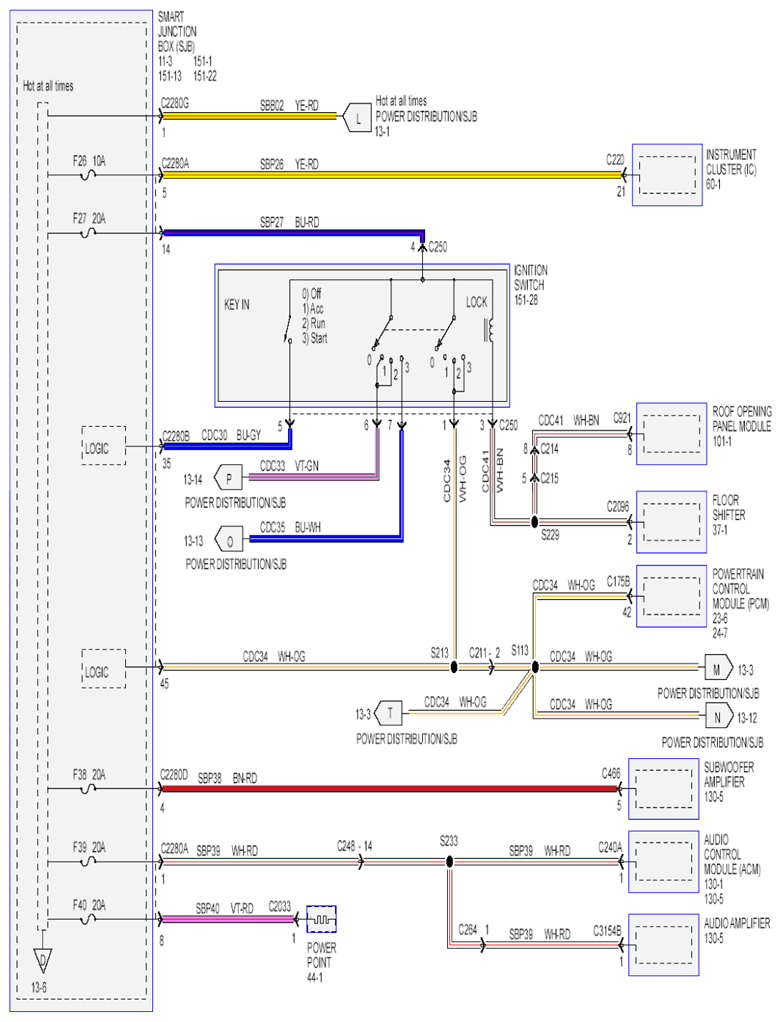

Home >> Ford >> 2011 >> Escape Base, 2.5 7, AWD, Standard >> Repair and Diagnosis (Single Page) >> Electrical >> Wiring Diagrams >> OEM Wiring Diagrams (Except Hybrid) >> Power Distribution_SJB >> F26, F27, F38, F39, F40
