Escape Base, 2.5 7, AWD, Standard
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams (Except Hybrid)
>>
Supplemental Restraint System
Supplemental Restraint System

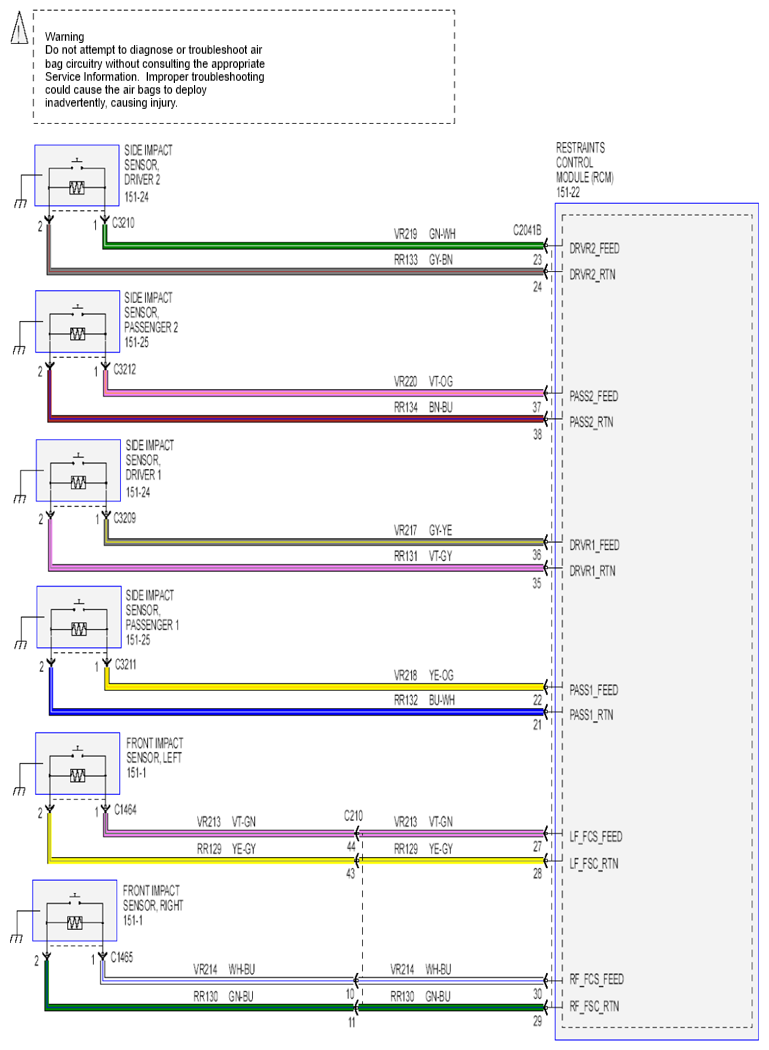

Fig 1: Supplemental Restraint System Schematic (1 Of 4)
Courtesy of FORD MOTOR CO.

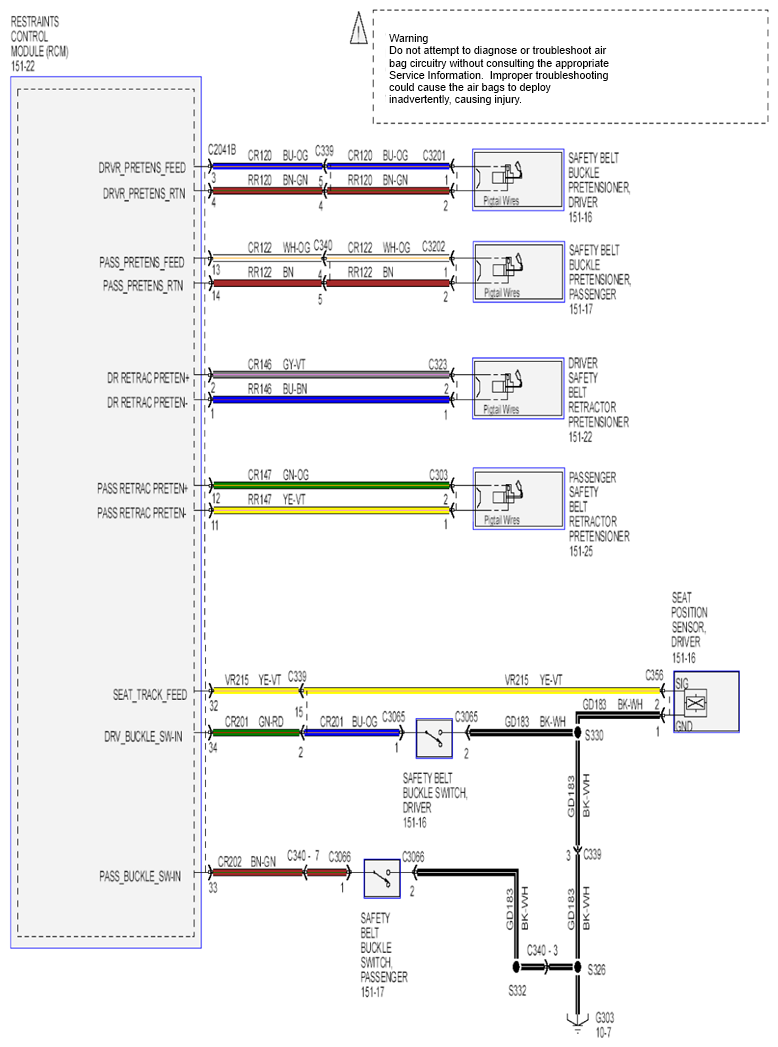

Fig 2: Supplemental Restraint System Schematic (2 Of 4)
Courtesy of FORD MOTOR CO.

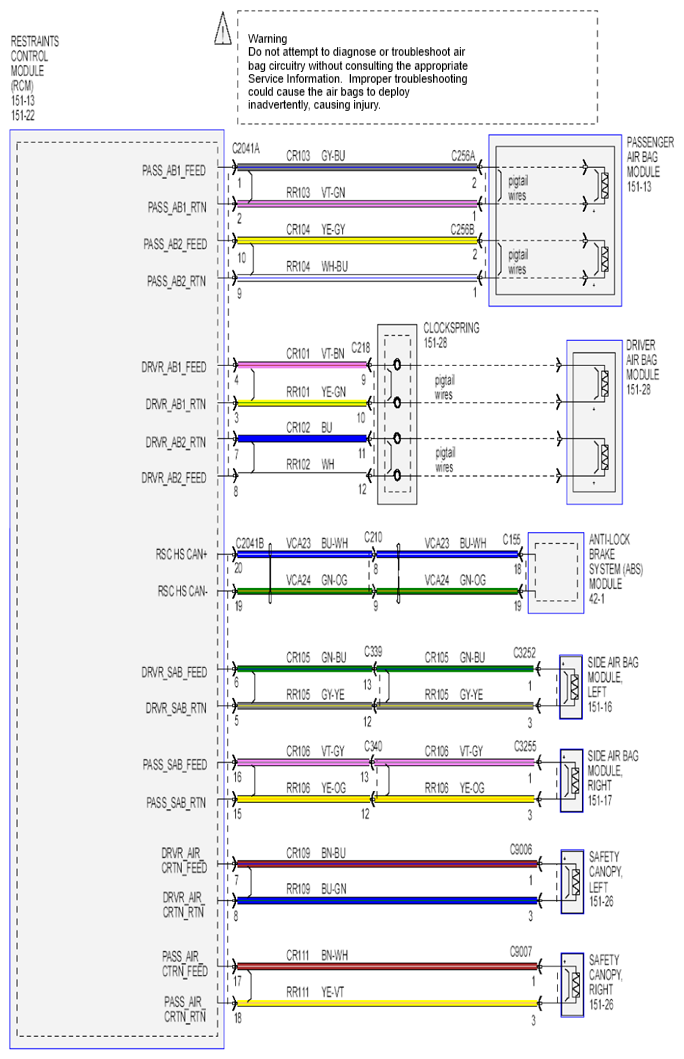

Fig 3: Supplemental Restraint System Schematic (3 Of 4)
Courtesy of FORD MOTOR CO.

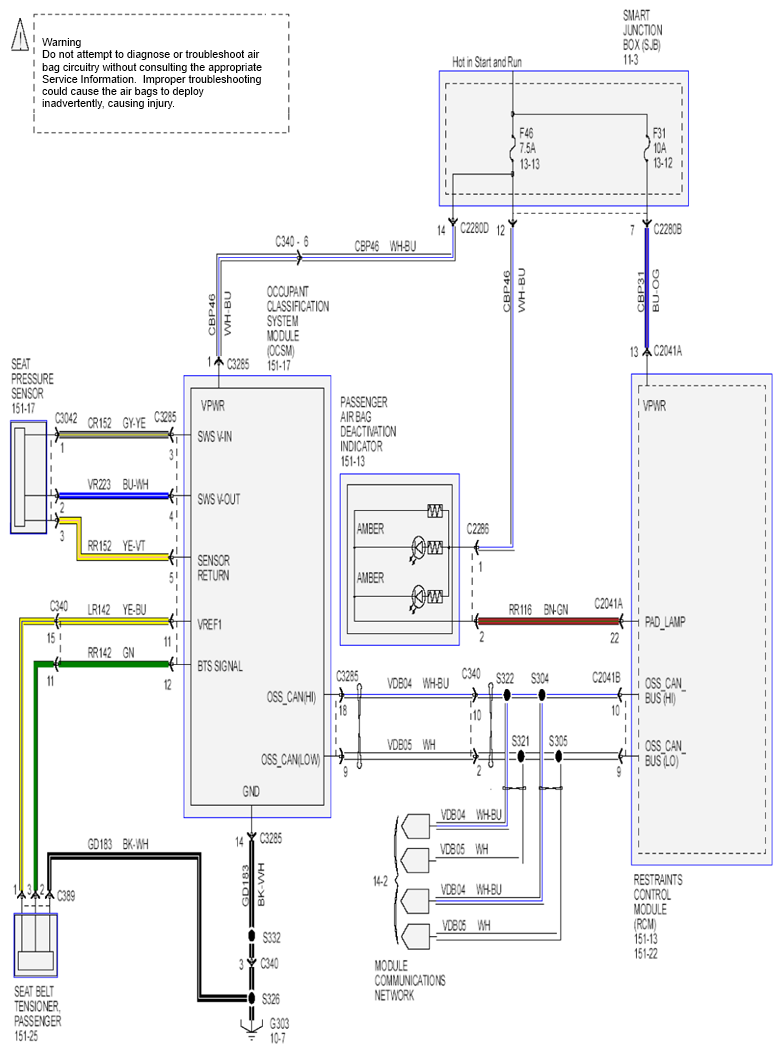

Fig 4: Supplemental Restraint System Schematic (4 Of 4)
