OEM Wiring Diagrams (Except Hybrid): Seating

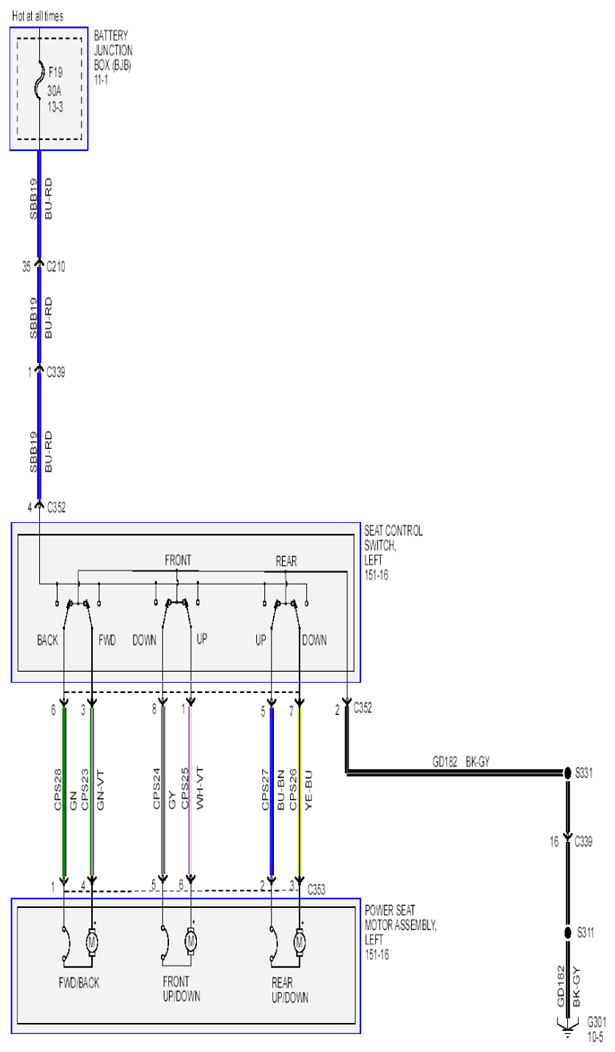

Fig 1: Seating Schematic

G07855410

Courtesy of FORD MOTOR CO.
