Remote Keyless Entry and Alarm

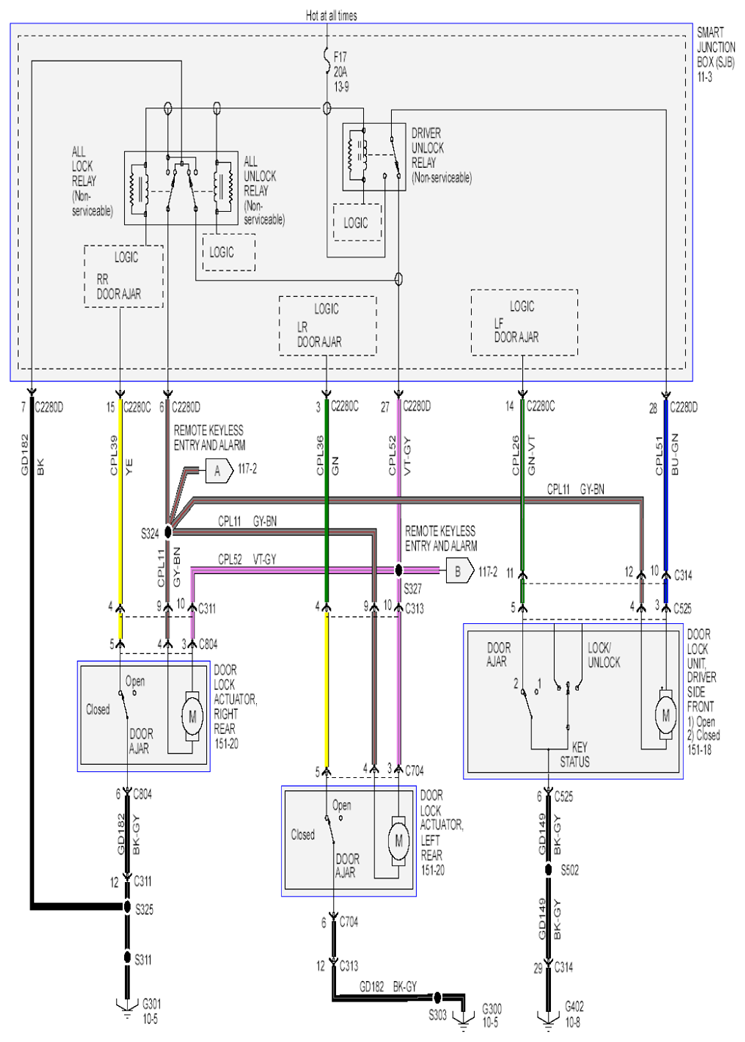

Fig 1: Remote Keyless Entry And Alarm Schematic (1 Of 4)
G07855405Courtesy of FORD MOTOR CO.

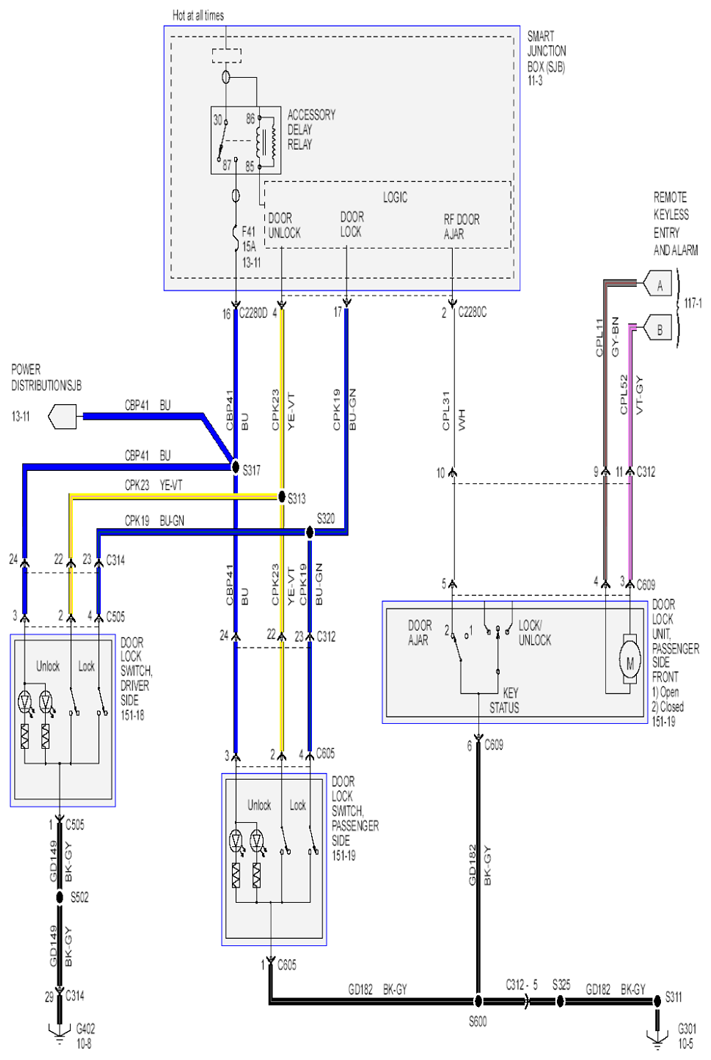

Fig 2: Remote Keyless Entry And Alarm Schematic (2 Of 4)
G07855406Courtesy of FORD MOTOR CO.

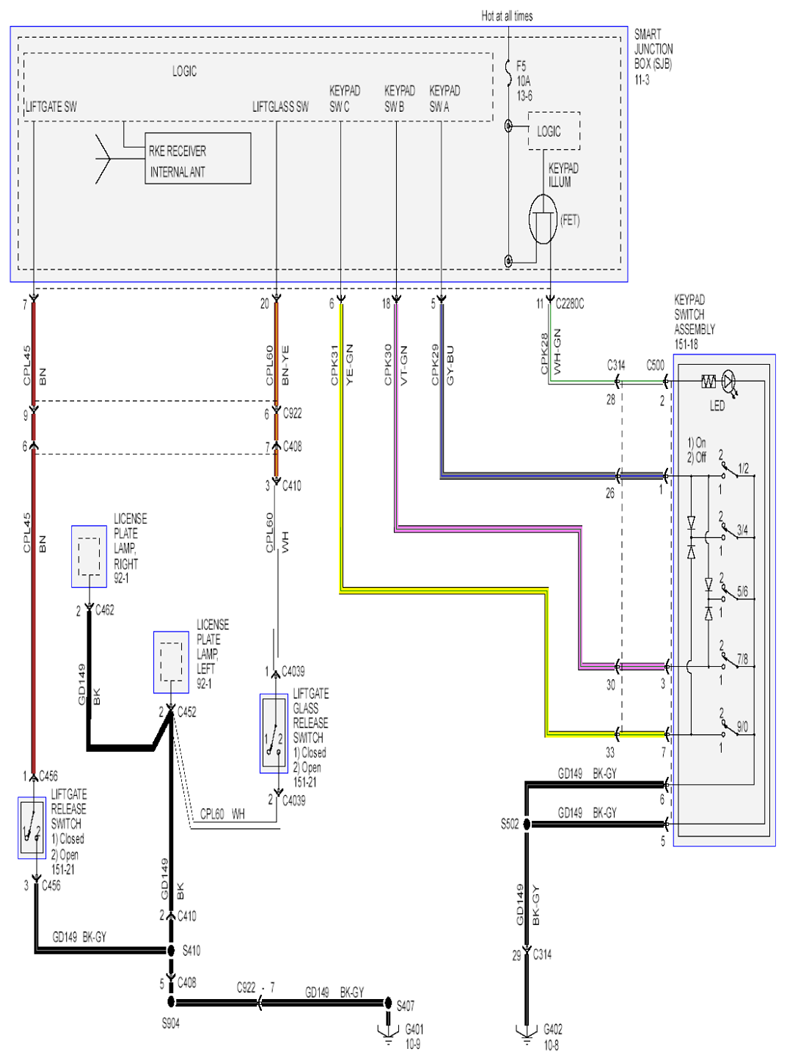

Fig 3: Remote Keyless Entry And Alarm Schematic (3 Of 4)
G07855407Courtesy of FORD MOTOR CO.

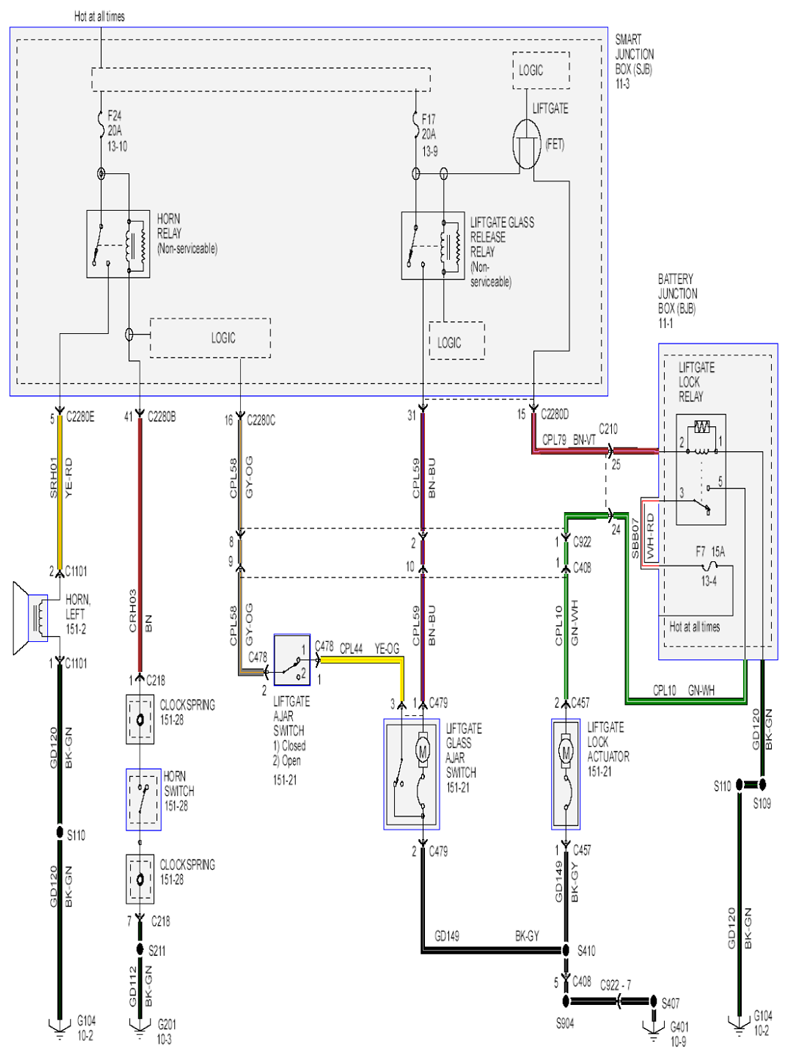

Fig 4: Remote Keyless Entry And Alarm Schematic (4 Of 4)
G07855408Courtesy of FORD MOTOR CO.
