Heated Window
Heated Window

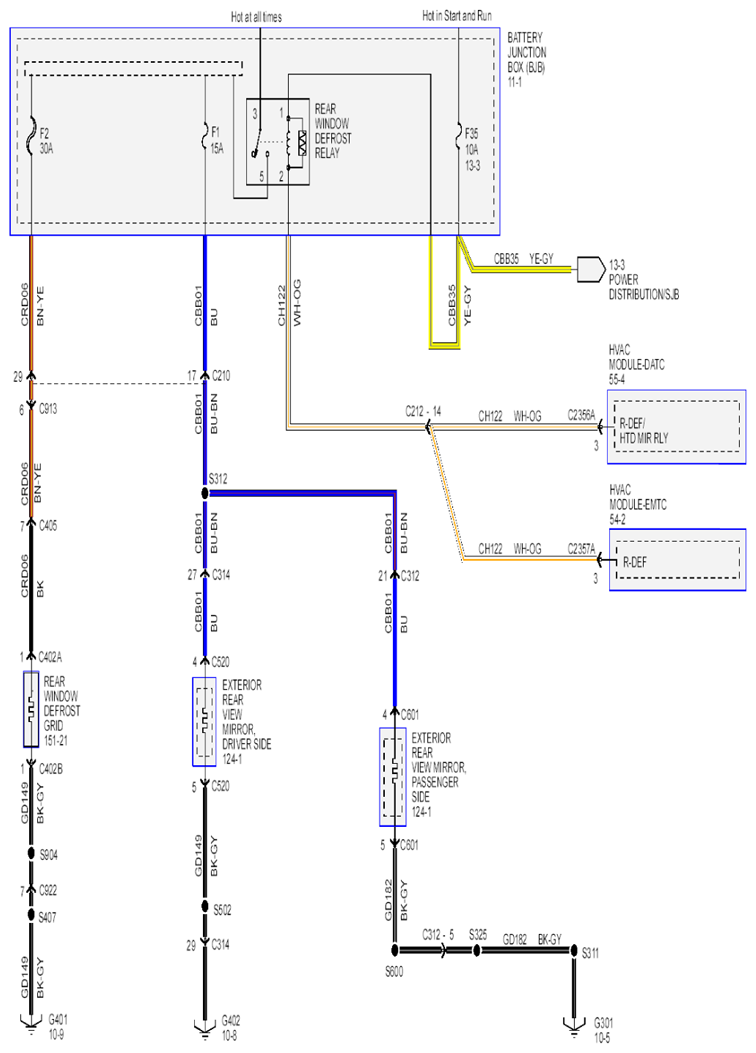

Fig 1: Heated Window Schematic
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
