Escape Base, 2.5 7, AWD, Standard
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams (Except Hybrid)
>>
Four Wheel Drive Systems
Four Wheel Drive Systems

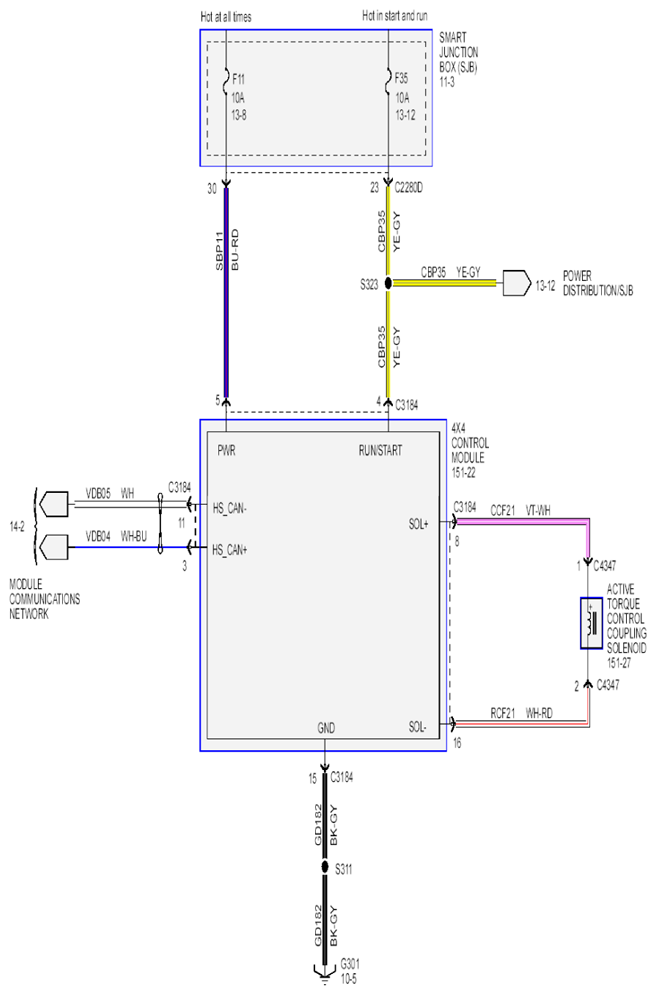

Fig 1: Four Wheel Drive Systems Schematic
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
