Climate Controlled Seats
Climate Controlled Seats

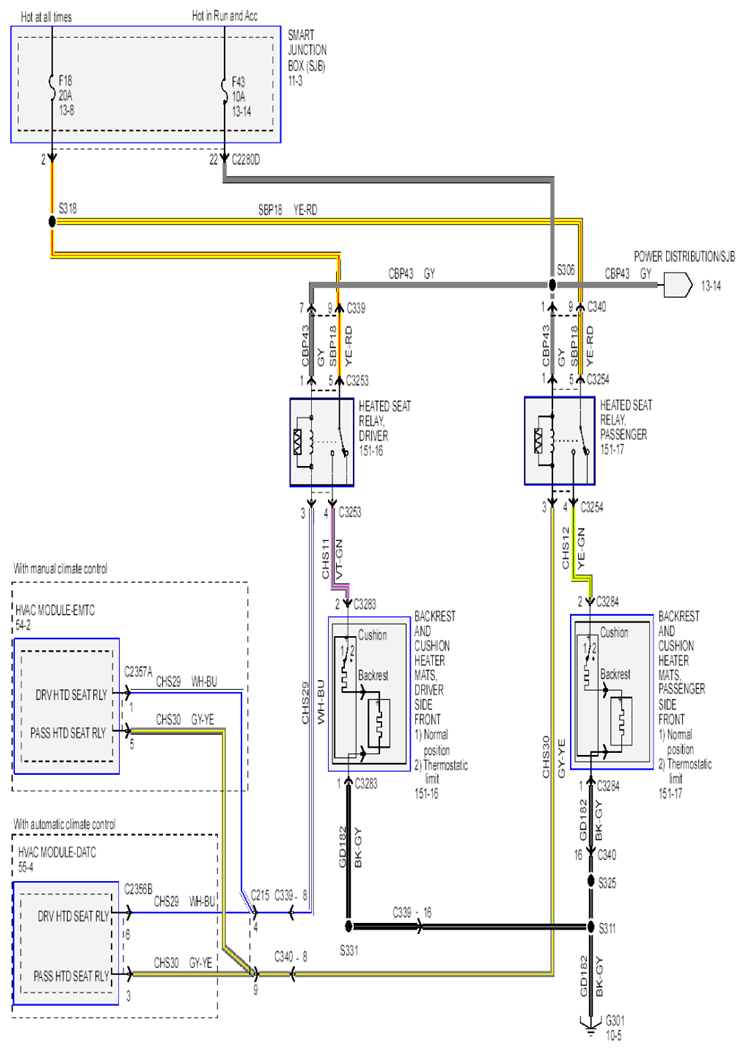

Fig 1: Climate Controlled Seats Schematic
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
