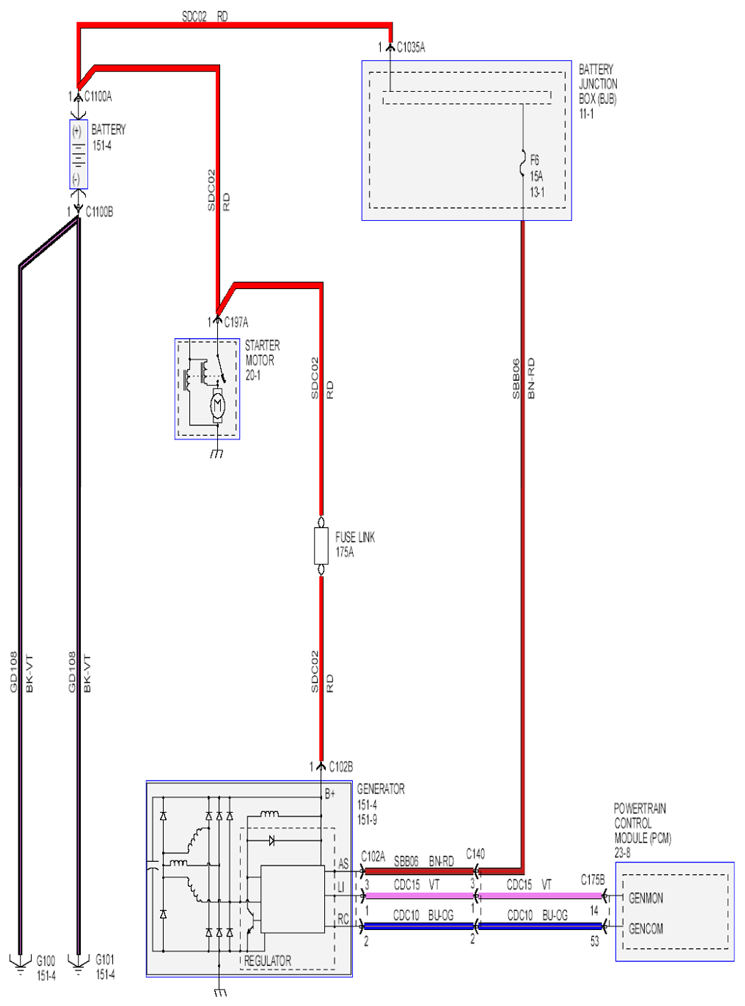

Home >> Ford >> 2011 >> Escape Base, 2.5 7, AWD, Standard >> Repair and Diagnosis (Single Page) >> Electrical >> Motors, Switches, Relays >> OEM Wiring Diagrams (Except Hybrid) >> Charging System >> 2.5L
