PREMIUM AUDIO with NAVIGATION
PREMIUM AUDIO with NAVIGATION

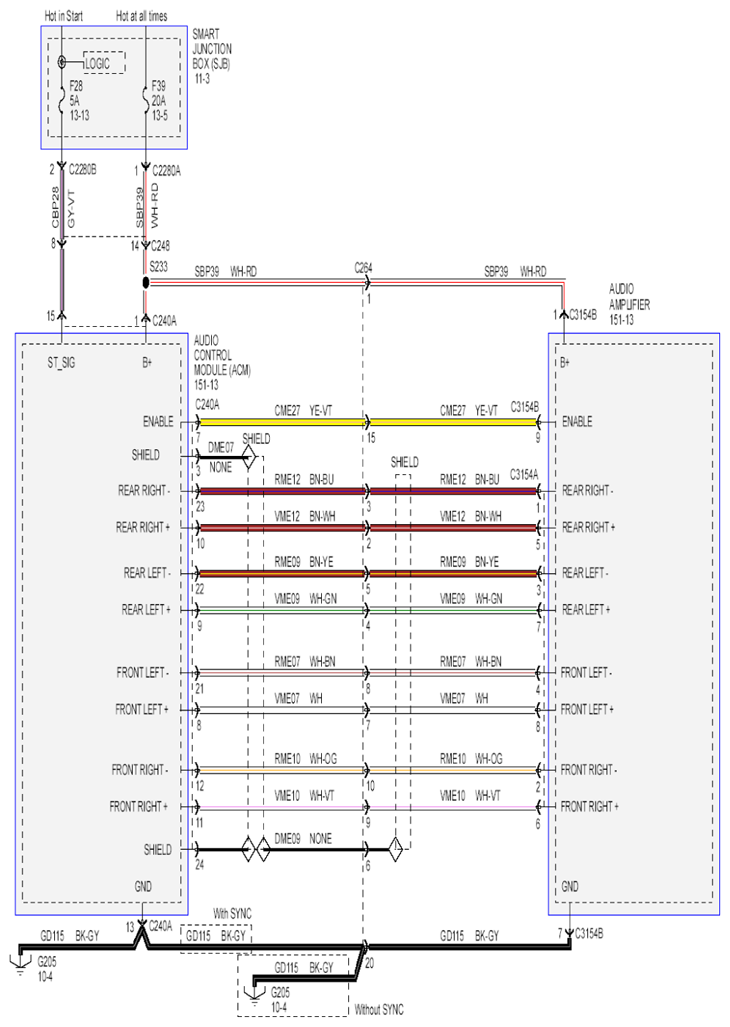

Fig 1: Audio System Navigation Schematic - Premium Audio With Navigation (1 Of 2)
Courtesy of FORD MOTOR CO.

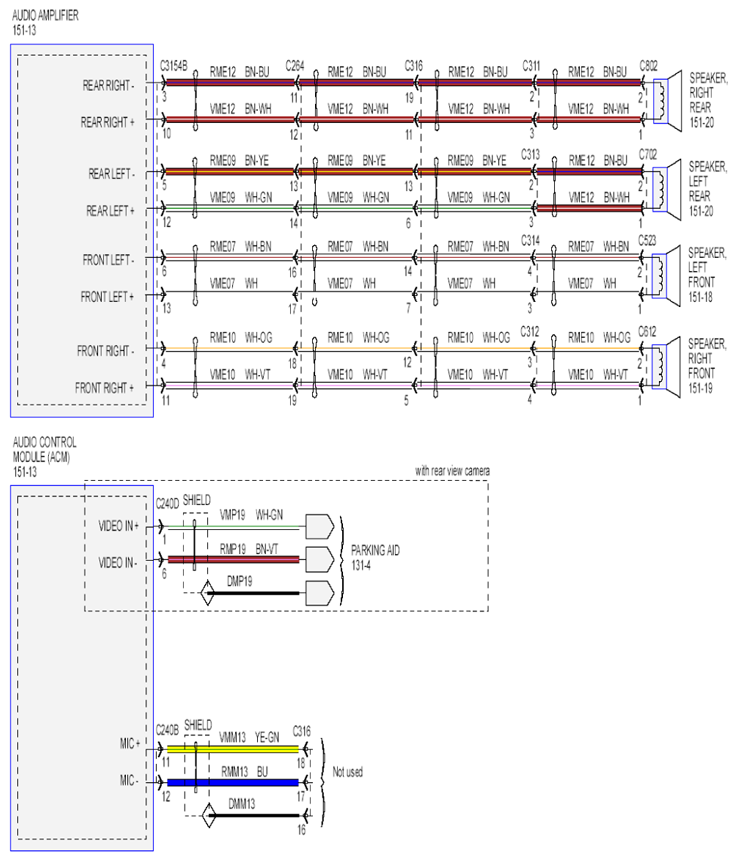

Fig 2: Audio System Navigation Schematic - Premium Audio With Navigation (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
