Right Rear Park Lamp / Stop Lamp / Turn Lamp Connector End View (C4032)
Right Rear Park Lamp / Stop Lamp / Turn Lamp Connector End View (C4032)

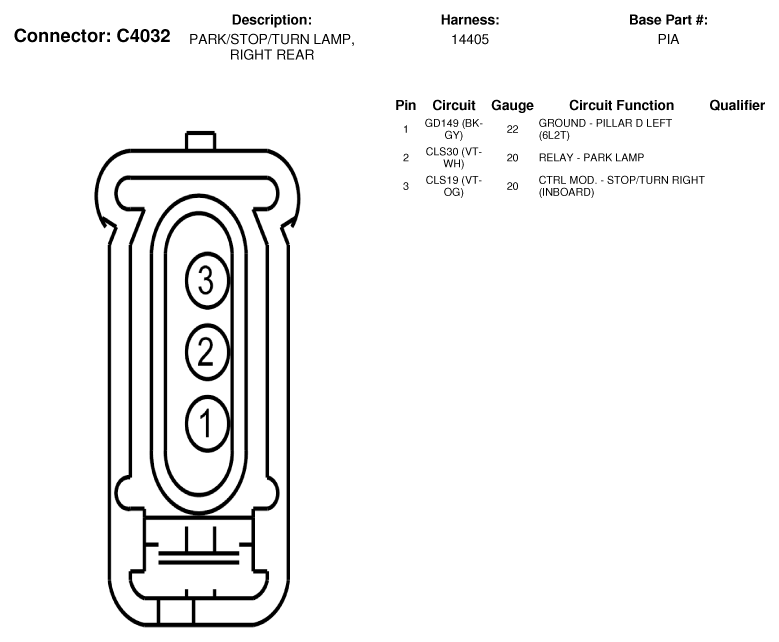

Fig 1: Right Rear Park Lamp / Stop Lamp / Turn Lamp Connector End View (C4032)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
