Passenger Seat Belt Tensioner Connector End View (C389)

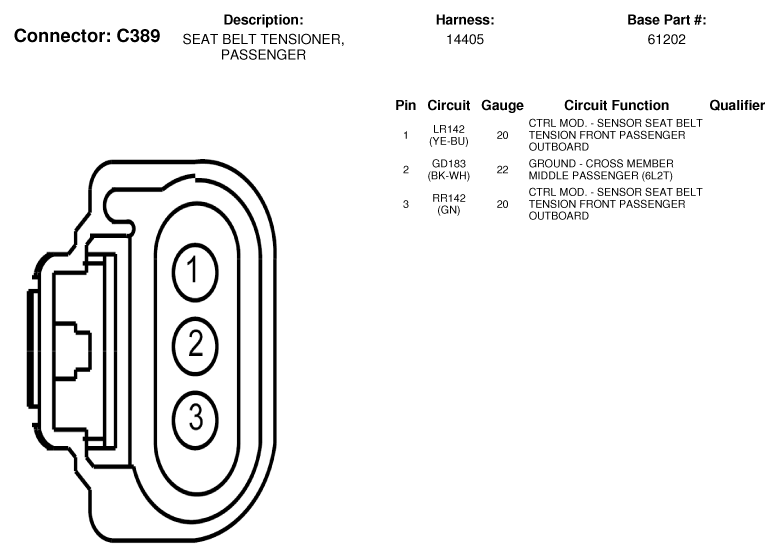

Fig 1: Passenger Seat Belt Tensioner Connector End View (C389)

G07333941

Courtesy of FORD MOTOR CO.
