Passenger Safety Belt Buckle Pretensioner Connector End View (C3202)

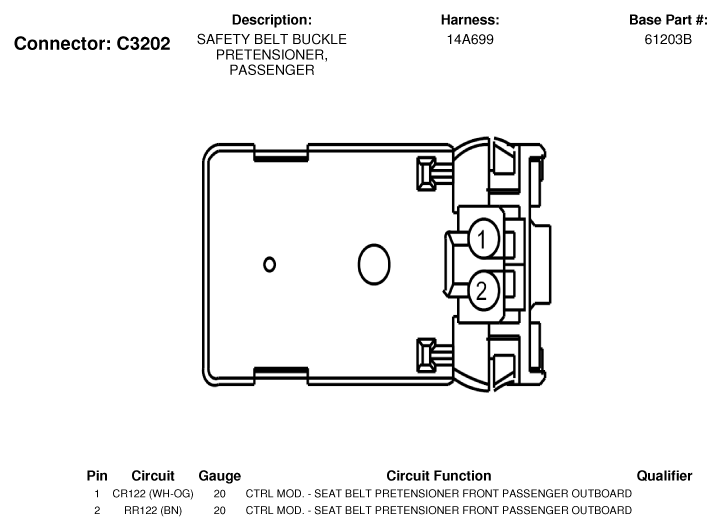

Fig 1: Passenger Safety Belt Buckle Pretensioner Connector End View (C3202)

G07334082

Courtesy of FORD MOTOR CO.
