Left Rear Park Lamp / Stop Lamp / Turn Lamp Connector End View (C4035)
Left Rear Park Lamp / Stop Lamp / Turn Lamp Connector End View (C4035)

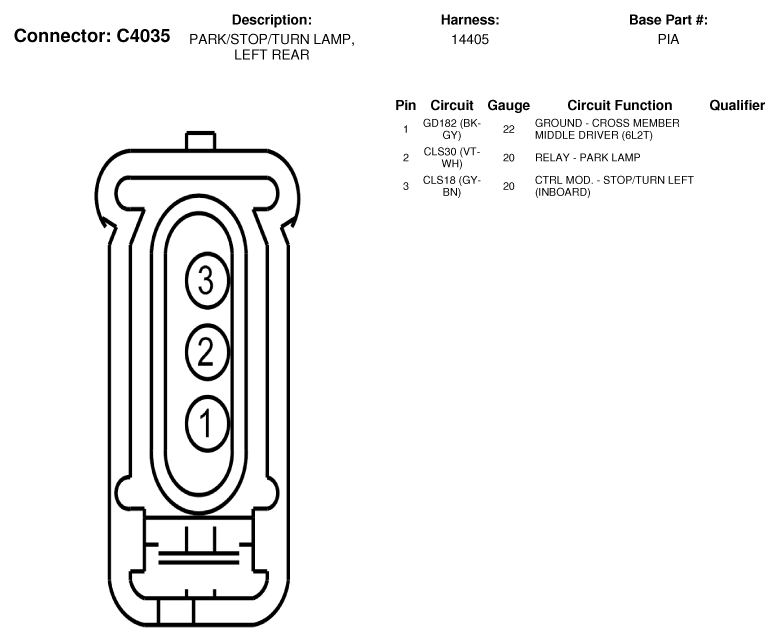

Fig 1: Left Rear Park Lamp / Stop Lamp / Turn Lamp Connector End View (C4035)
Courtesy of FORD MOTOR CO.
