2011 Escape/Mariner Location Index: Connectors

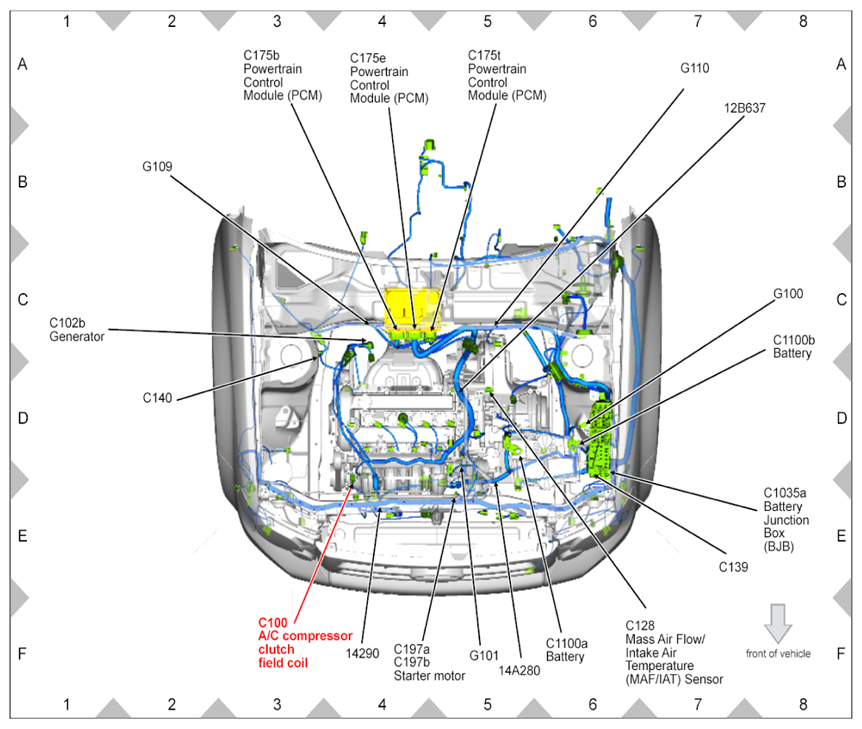

Fig 1: Identifying C100 A/C Compressor Clutch Field Coil Location - (2.5L) Right Front Of Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 2: Identifying C100 A/C Compressor Clutch Field Coil Location - (3.0L) Right Front Of Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 3: Identifying C101 Crankshaft Position Sensor (CKP) Location - (3.0L) Front Of Engine, Near Crankshaft Pulley

Courtesy of FORD MOTOR CO.

Fig 4: Identifying C102A Generator Location - (2.5L) Front Of Engine, On Right Side, At Generator

Courtesy of FORD MOTOR CO.

Fig 5: Identifying C102B Generator Location - (2.5L) Right Rear Corner Of Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 6: Identifying C103 Oil Pressure Switch Location - (2.5L) Left Side Of Engine, Near Oil Filter

Courtesy of FORD MOTOR CO.

Fig 7: Identifying C103 Oil Pressure Switch Location - (3.0L) Front Of Engine, Near Oil Filter

Courtesy of FORD MOTOR CO.

Fig 8: Identifying C107 Cylinder Head Temperature (CHT) Sensor Location - Rear Of Engine, Rear Bank Cylinder Head

Courtesy of FORD MOTOR CO.

Fig 9: Identifying C108 Knock Sensor 2 (KS2) Location - Top Of Engine

Courtesy of FORD MOTOR CO.

Fig 10: Identifying C109 Knock Sensor 1 (KS1) Location - Top Of Engine

Courtesy of FORD MOTOR CO.

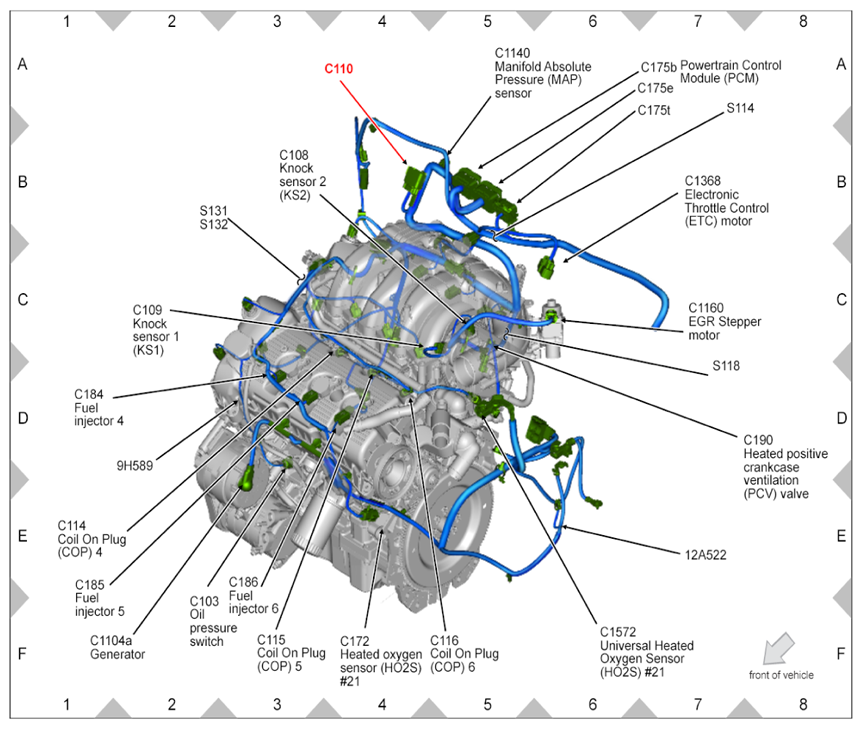

Fig 11: Identifying C110 Connector Location - Top Of Engine, Above Right Valve Cover

Courtesy of FORD MOTOR CO.

Fig 12: Identifying C110 Connector Location - (3.0L) Top Of Engine, Above Right Valve Cover

Courtesy of FORD MOTOR CO.

Fig 13: Identifying C111 Coil On Plug (COP) 1 Location - (2.5L) Top Of Engine, On Valve Cover

Courtesy of FORD MOTOR CO.

Fig 14: Identifying C111 Coil On Plug (COP) 1 Location - (3.0L) Top Of Engine, On Right Valve Cover

Courtesy of FORD MOTOR CO.

Fig 15: Identifying C112 Coil On Plug (COP) 2 Location - (2.5L) Top Of Engine, On Valve Cover

Courtesy of FORD MOTOR CO.

Fig 16: Identifying C112 Coil On Plug (COP) 2 Location - (3.0L) Top Of Engine, On Right Valve Cover

Courtesy of FORD MOTOR CO.

Fig 17: Identifying C113 Coil On Plug (COP) 3 Location - (2.5L) Top Of Engine, On Valve Cover

Courtesy of FORD MOTOR CO.

Fig 18: Identifying C113 Coil On Plug (COP) 3 Location - (3.0L) Top Of Engine, On Right Valve Cover

Courtesy of FORD MOTOR CO.

Fig 19: Identifying C114 Coil On Plug (COP) 4 Location - (2.5L) Top Of Engine, On Valve Cover

Courtesy of FORD MOTOR CO.

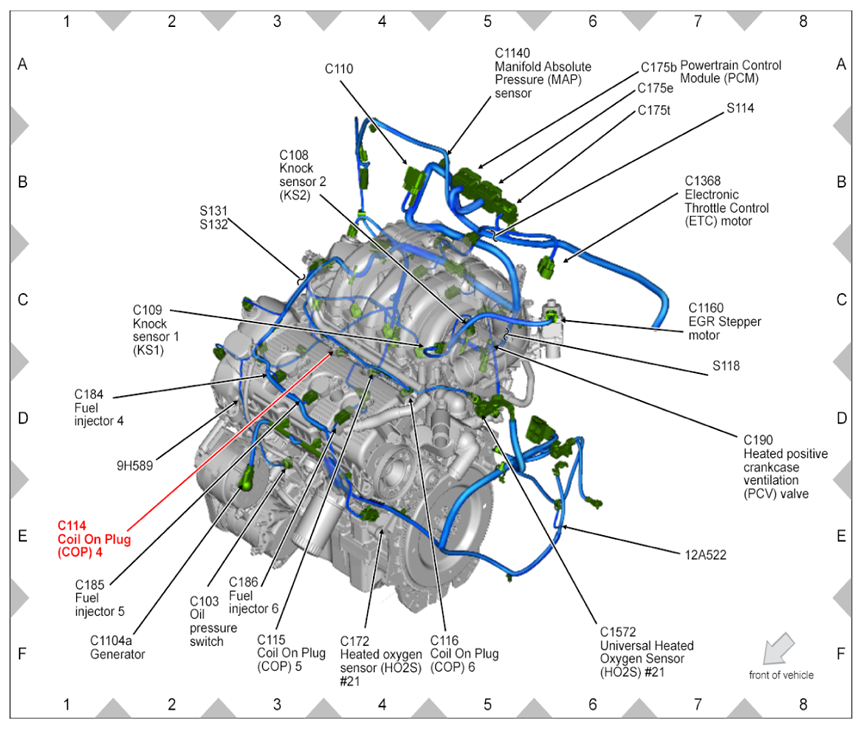

Fig 20: Identifying C114 Coil On Plug (COP) 4 Location - (3.0L) Top Of Engine, On Left Valve Cover

Courtesy of FORD MOTOR CO.

Fig 21: Identifying C115 Coil On Plug (COP) 5 Location - (3.0L) Top Of Engine, On Left Valve Cover

Courtesy of FORD MOTOR CO.

Fig 22: Identifying C116 Coil On Plug (COP) 6 Location - (3.0L) Top Of Engine, On Left Valve Cover

Courtesy of FORD MOTOR CO.

Fig 23: Identifying C123 Evaporative Emission (EVAP) Canister Purge Valve Location - Rear Center Of Engine Compartment

Courtesy of FORD MOTOR CO.

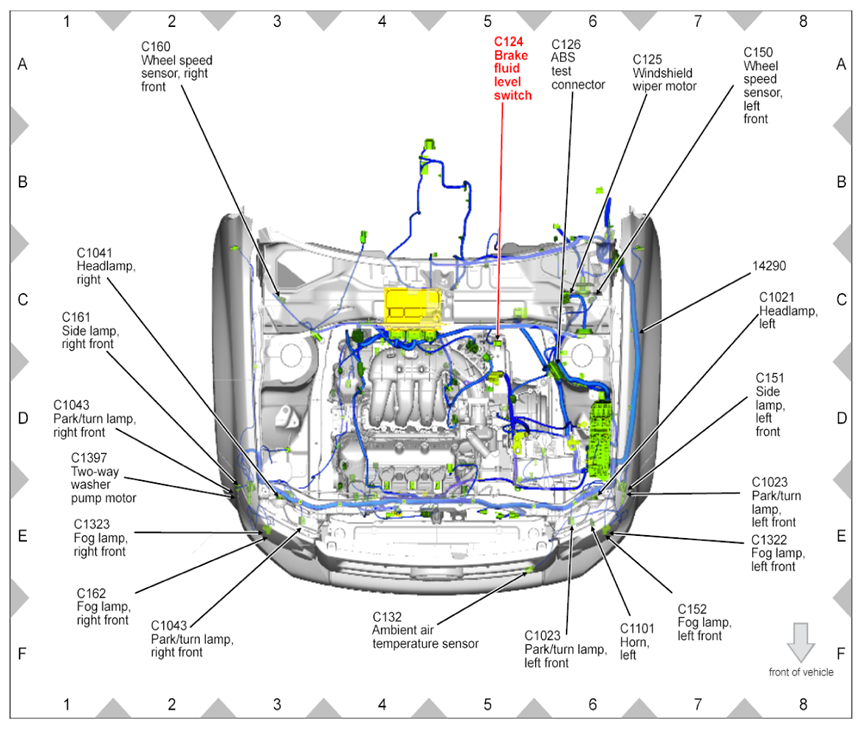

Fig 24: Identifying C124 Brake Fluid Level Switch Location - Left Rear Corner Of Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 25: Identifying C125 Windshield Wiper Motor Location - Left Rear Corner Of Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 26: Identifying C126 ABS Test Connector Location - Left Rear Corner Of Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 27: Identifying C128 Mass Air Flow/Intake Air Temperature (MAF/IAT) Sensor Location - (2.5L) Top Of Engine, Near Air Cleaner

Courtesy of FORD MOTOR CO.

Fig 28: Identifying C128 Mass Air Flow/Intake Air Temperature (MAF/IAT) Sensor Location - (3.0L) Top Of Engine, Near Air Cleaner

Courtesy of FORD MOTOR CO.

Fig 29: Identifying C130 A/C Pressure Transducer Location - Right Rear Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 30: Identifying C132 Ambient Air Temperature Sensor Location - Front Of Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 31: Identifying C133 Connector Location - Rear Center Of Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 32: Identifying C134 Connector Location - Left Front Corner Of Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 33: Identifying C139/C1035A Battery Junction Box (BJB) Location - Left Front Corner Of Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 34: Identifying C140 Connector Location - Right Rear Corner Of Engine Compartment

Courtesy of FORD MOTOR CO.

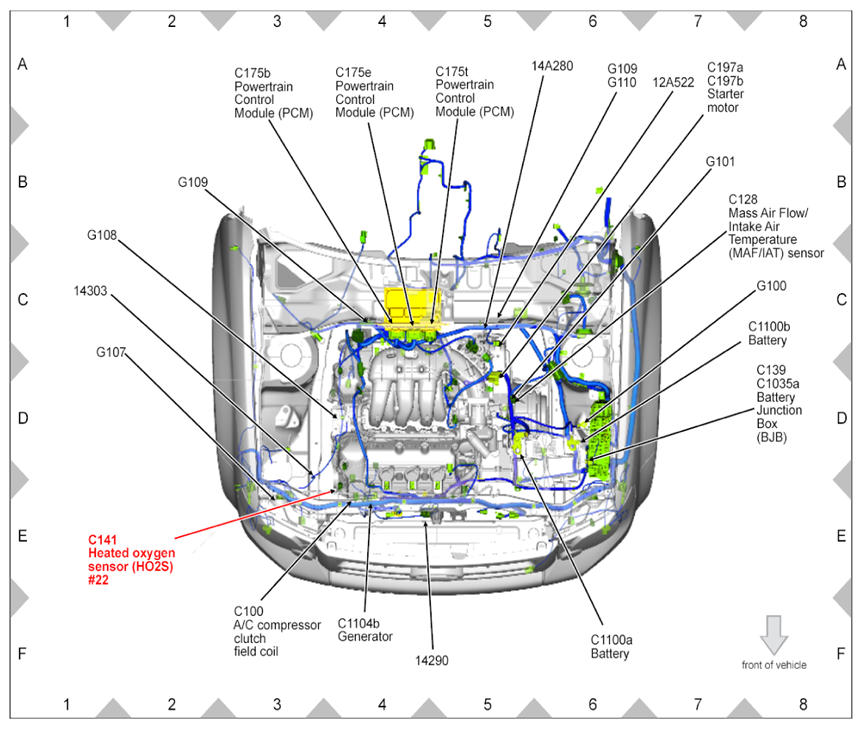

Fig 35: Identifying C141 Heated Oxygen Sensor (HO2S) #22 Location - Right Front Of Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 36: Identifying C142 Heated Oxygen Sensor (HO2S) #12 Location - (2.5L) Rear Of Engine Near Generator

Courtesy of FORD MOTOR CO.

Fig 37: Identifying C142 Heated Oxygen Sensor (HO2S) #12 Location - (3.0L) Front Of Engine, Near Crankshaft Pulley

Courtesy of FORD MOTOR CO.

Fig 38: Identifying C150 Wheel Speed Sensor, Left Front Location - Left Rear Corner Of Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 39: Identifying C151 Side Lamp, Left Front Location - (ESCAPE) Left Front Of Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 40: Identifying C152 Fog Lamp, Left Front Location - (MARINER) Left Front Corner Of Vehicle

Courtesy of FORD MOTOR CO.

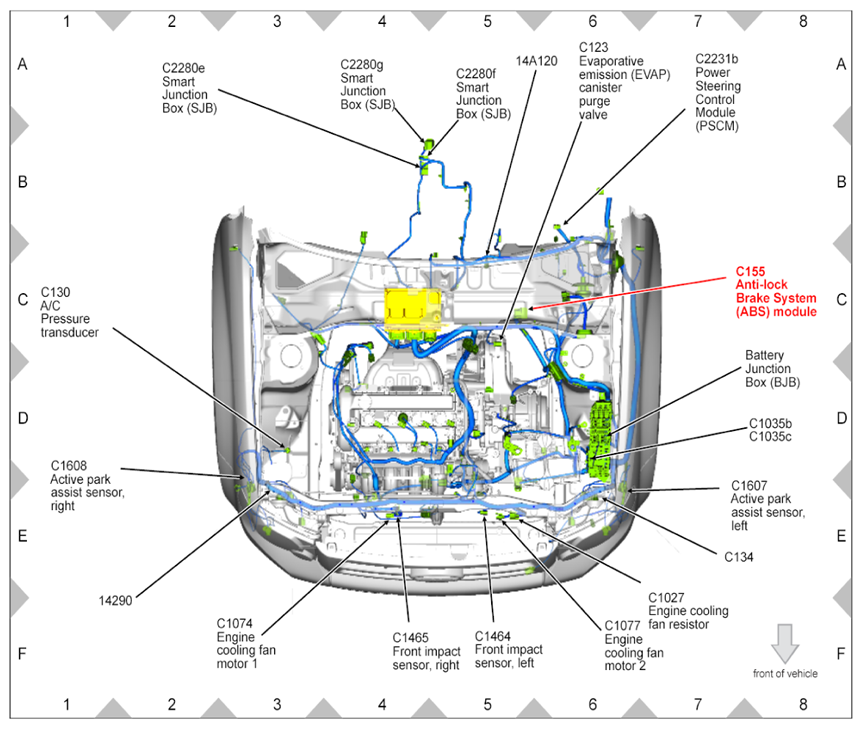

Fig 41: Identifying C155 Anti-Lock Brake System (ABS) System Location - Left Rear Corner Of Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 42: Identifying C160 Wheel Speed Sensor, Right Front Location - Right Rear Corner Of Engine Compartment

Courtesy of FORD MOTOR CO.

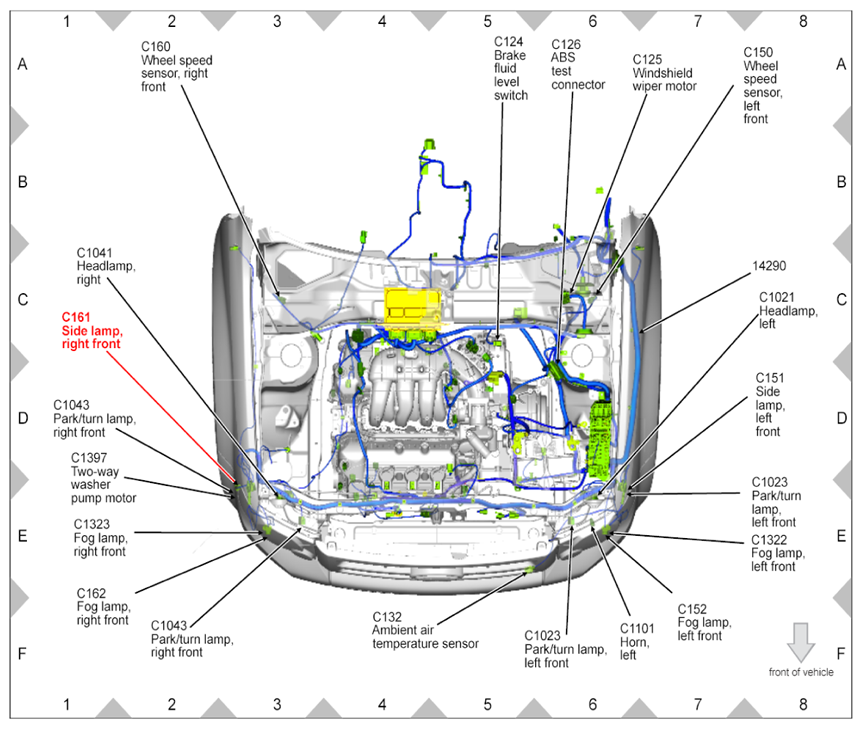

Fig 43: Identifying C161 Side Lamp, Right Front Location - (ESCAPE) Right Front Of Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 44: Identifying C162 Fog Lamp, Right Front Location - (MARINER) Right Front Corner Of Vehicle

Courtesy of FORD MOTOR CO.

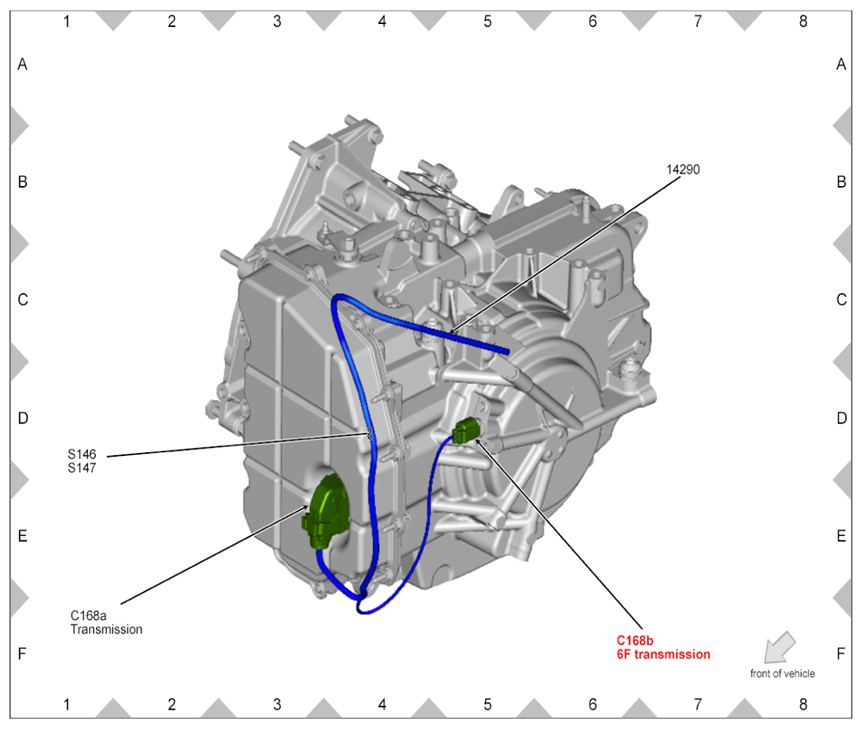

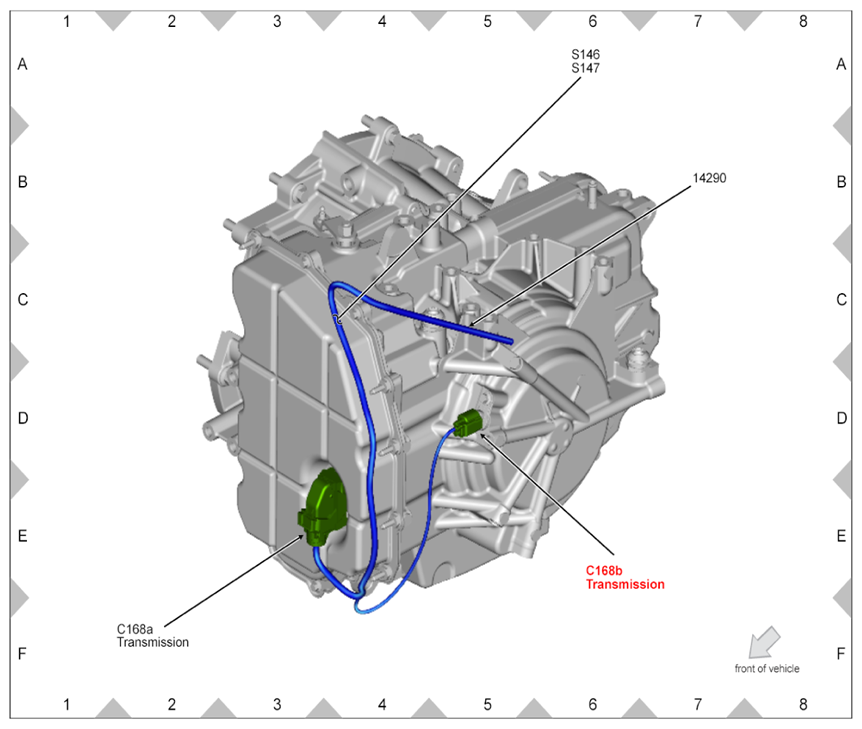

Fig 45: Identifying C168A Transmission Location - Front Of Engine Compartment, Near Transmission

Courtesy of FORD MOTOR CO.

Fig 46: Identifying C168B 6F Transmission Location - Left Side Of Engine Compartment, On Transmission

Courtesy of FORD MOTOR CO.

Fig 47: Identifying C168B Transmission Location - (2.5L) LH Of Engine Compartment, Above Transmission

Courtesy of FORD MOTOR CO.

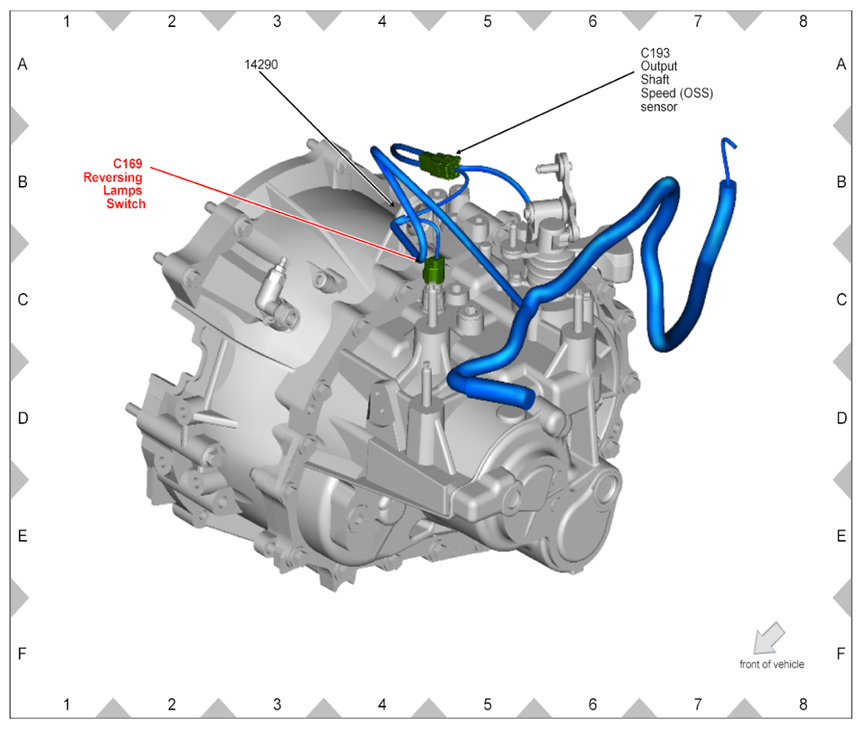

Fig 48: Identifying C169 Reversing Lamp Switch Location - (Manual Transmission) Left Side Of Engine Compartment, On Transmission

Courtesy of FORD MOTOR CO.

Fig 49: Identifying C171 Heated Oxygen Sensor (HO2S) #11 Location - (2.5L) Rear Center Of Engine Compartment, Near Bulkhead

Courtesy of FORD MOTOR CO.

Fig 50: Identifying C172 Heated Oxygen Sensor (HO2S) #21 Location - Front Of Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 51: Identifying C174 Ignition Transformer Capacitor 1 Location - (2.5L) Top Of Engine, Left Side Near Valve Cover

Courtesy of FORD MOTOR CO.

Fig 52: Identifying C174 Ignition Transformer Capacitor 1 Location - (3.0L) Front Of Engine, Near Right Cylinder Head

Courtesy of FORD MOTOR CO.

Fig 53: Identifying C175B Powertrain Control Module (PCM) Location - (2.5L) Rear Of Engine Compartment, On Bulkhead

Courtesy of FORD MOTOR CO.

Fig 54: Identifying C175B Powertrain Control Module (PCM) Location - (3.0L) Rear Of Engine Compartment, On Bulkhead

Courtesy of FORD MOTOR CO.

Fig 55: Identifying C175E Powertrain Control Module (PCM) Location - (2.5L) Rear Of Engine Compartment, On Bulkhead

Courtesy of FORD MOTOR CO.

Fig 56: Identifying C175E Connector Location - (2.5L) Rear Of Engine Compartment, On Bulkhead

Courtesy of FORD MOTOR CO.

Fig 57: Identifying C175E Powertrain Control Module (PCM) Location - (3.0L) Rear Of Engine Compartment, On Bulkhead

Courtesy of FORD MOTOR CO.

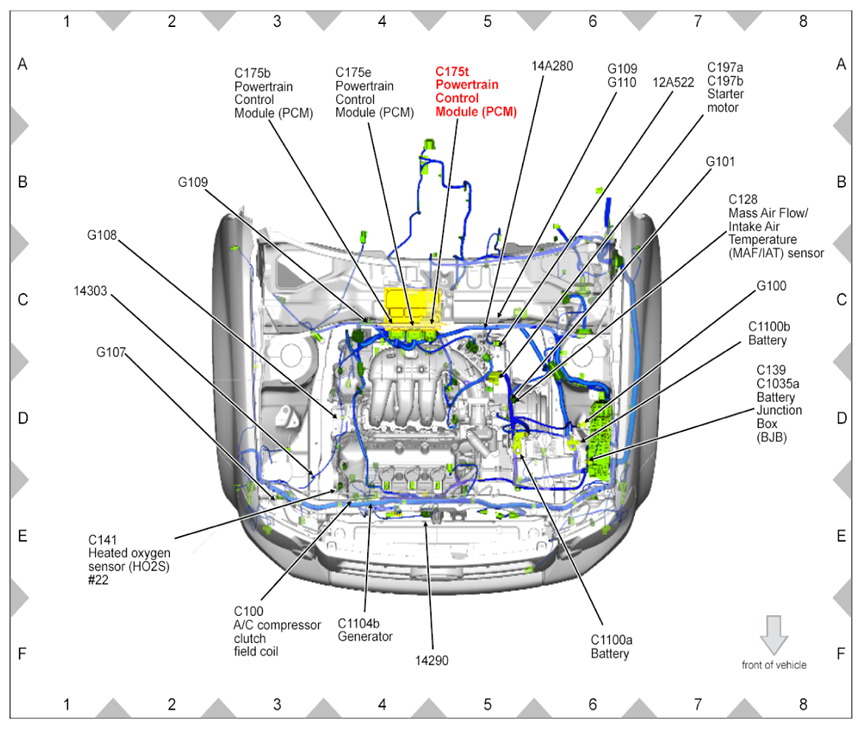

Fig 58: Identifying C175T Powertrain Control Module (PCM) Location - (2.5L) Rear Of Engine Compartment, On Bulkhead

Courtesy of FORD MOTOR CO.

Fig 59: Identifying C175T Powertrain Control Module (PCM) Location - (3.0L) Rear Of Engine Compartment, On Bulkhead

Courtesy of FORD MOTOR CO.

Fig 60: Identifying C181 Fuel Injector 1 Location - (2.5L) Top Of Engine, Above Intake Manifold

Courtesy of FORD MOTOR CO.

Fig 61: Identifying C181 Fuel Injector 1 Location - (3.0L) Top Of Engine Top, Under Intake Manifold

Courtesy of FORD MOTOR CO.

Fig 62: Identifying C182 Fuel Injector 2 Location - (2.5L) Top Of Engine, Above Intake Manifold

Courtesy of FORD MOTOR CO.

Fig 63: Identifying C182 Fuel Injector 2 Location - (3.0L) Top Of Engine, Under Intake Manifold

Courtesy of FORD MOTOR CO.

Fig 64: Identifying C183 Fuel Injector 3 Location - (2.5L) Top Of Engine, Above Intake Manifold

Courtesy of FORD MOTOR CO.

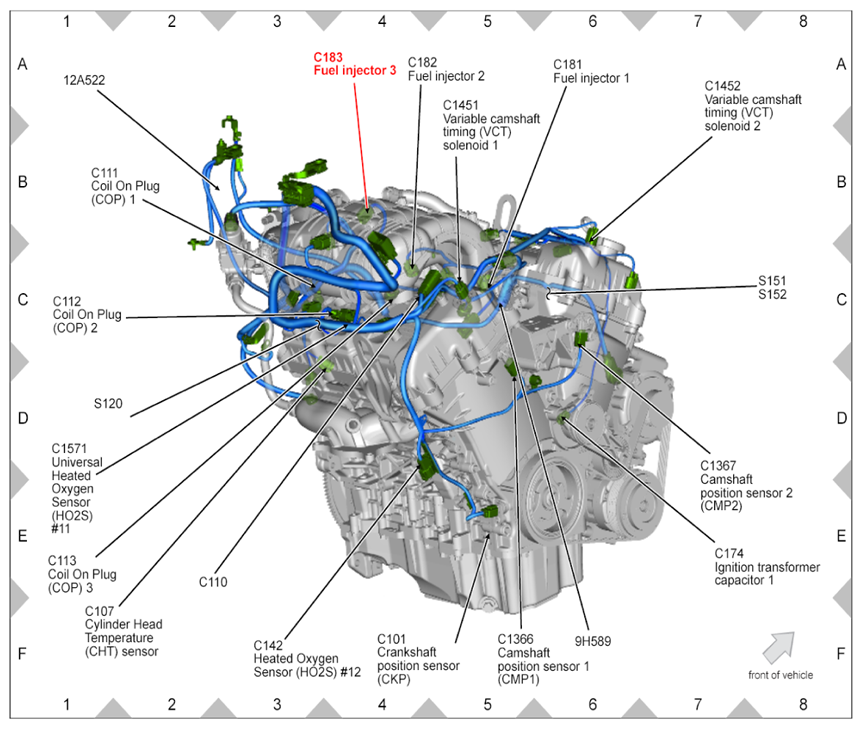

Fig 65: Identifying C183 Fuel Injector 3 Location - (3.0L) Top Of Engine, Under Intake Manifold

Courtesy of FORD MOTOR CO.

Fig 66: Identifying C184 Fuel Injector 4 Location - Top Of Engine, On Left Valve Cover

Courtesy of FORD MOTOR CO.

Fig 67: Identifying C184 Fuel Injector 4 Location - (2.5L) Top Of Engine, Above Intake Manifold

Courtesy of FORD MOTOR CO.

Fig 68: Identifying C185 Fuel Injector 5 Location - Top Of Engine, On Left Valve Cover

Courtesy of FORD MOTOR CO.

Fig 69: Identifying C186 Fuel Injector 6 Location - Top Of Engine, On Left Valve Cover

Courtesy of FORD MOTOR CO.

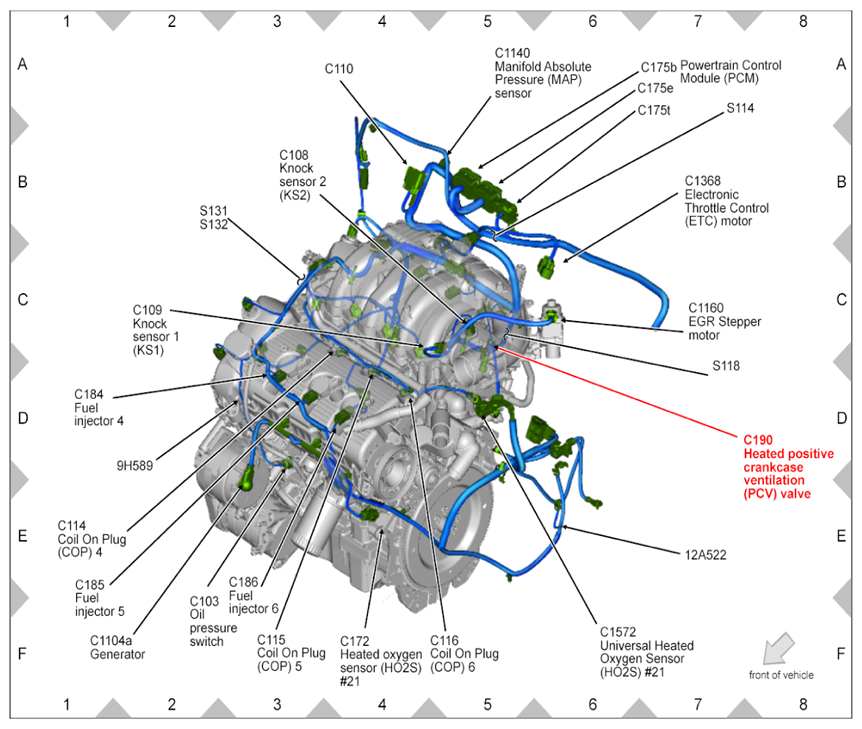

Fig 70: Identifying C190 Heated Positive Crankcase Ventilation (PCV) Valve Location - Top Of Engine

Courtesy of FORD MOTOR CO.

Fig 71: Identifying C193 Output Shaft Speed (OSS) Sensor Location - (Manual Transmission) On Transmission, RH

Courtesy of FORD MOTOR CO.

Fig 72: Identifying C197A Starter Motor Location - Left Side Of Engine, Near Transmission

Courtesy of FORD MOTOR CO.

Fig 73: Identifying C197B Starter Motor Location - Left Side Of Engine, Near Transmission

Courtesy of FORD MOTOR CO.

Fig 74: Identifying C202 Multifunction Switch Location - On Steering Column

Courtesy of FORD MOTOR CO.

Fig 75: Identifying C205 Main Light Switch Location - Behind Instrument Panel Left Side

Courtesy of FORD MOTOR CO.

Fig 76: Identifying C210 Connector Location - Behind Instrument Panel Top Left

Courtesy of FORD MOTOR CO.

Fig 77: Identifying C211 Connector Location - Behind Instrument Panel Top Left

Courtesy of FORD MOTOR CO.

Fig 78: Identifying C212 Connector Location - Behind Instrument Panel Top Left

Courtesy of FORD MOTOR CO.

Fig 79: Identifying C214 Connector Location - Bottom Left Side A-Pillar

Courtesy of FORD MOTOR CO.

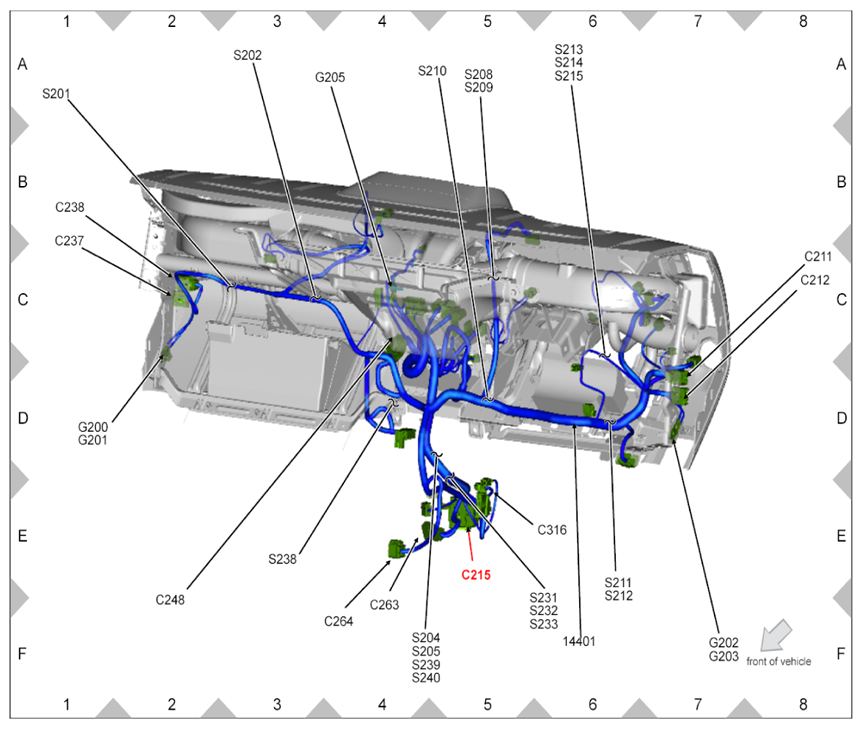

Fig 80: Identifying C215 Connector Location - Under Center Console

Courtesy of FORD MOTOR CO.

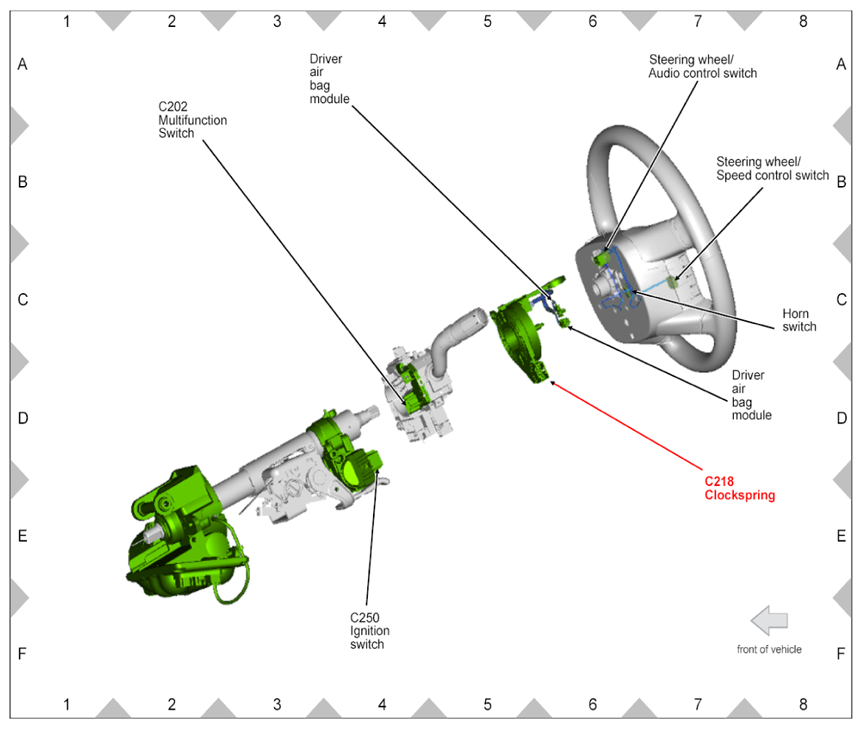

Fig 81: Identifying C218 Clockspring Location - Behind Steering Wheel On Steering Column

Courtesy of FORD MOTOR CO.

Fig 82: Identifying C220 Instrument Cluster (IC) Location - Behind Instrument Panel Left Side

Courtesy of FORD MOTOR CO.

Fig 83: Identifying C233 In-Vehicle Temperature Sensor Location - Behind Instrument Panel Center

Courtesy of FORD MOTOR CO.

Fig 84: Identifying C237 Connector Location - Behind Instrument Panel Right Side

Courtesy of FORD MOTOR CO.

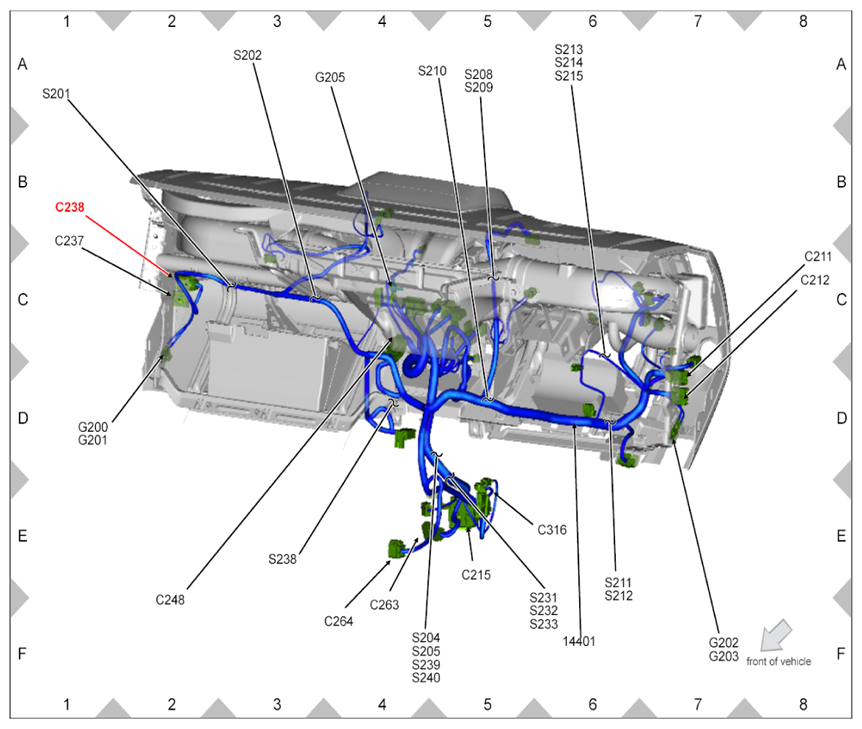

Fig 85: Identifying C238 Connector Location - Behind Instrument Panel Right Side

Courtesy of FORD MOTOR CO.

Fig 86: Identifying C240A Audio Control Module (ACM) Location - Behind Instrument Panel Upper Center

Courtesy of FORD MOTOR CO.

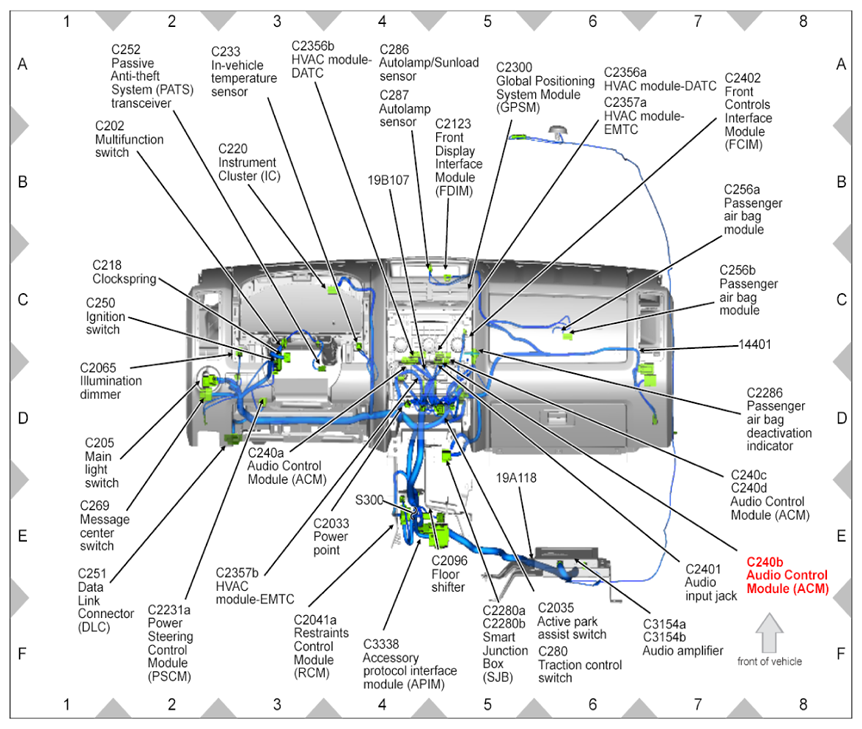

Fig 87: Identifying C240B Audio Control Module (ACM) Location - Behind Instrument Panel Upper Center

Courtesy of FORD MOTOR CO.

Fig 88: Identifying C240C Audio Control Module (ACM) Location - Behind Instrument Panel Upper Center

Courtesy of FORD MOTOR CO.

Fig 89: Identifying C240D Audio Control Module (ACM) Location - Behind Instrument Panel Upper Center

Courtesy of FORD MOTOR CO.

Fig 90: Identifying C248 Connector Location - Behind Dash Center

Courtesy of FORD MOTOR CO.

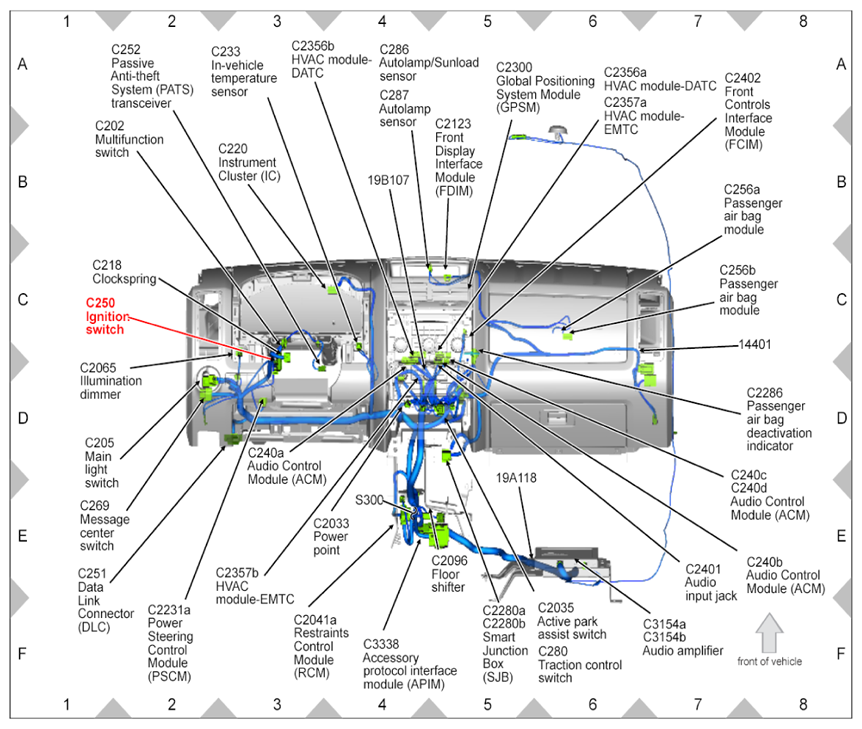

Fig 91: Identifying C250 Ignition Switch Location - On Steering Column

Courtesy of FORD MOTOR CO.

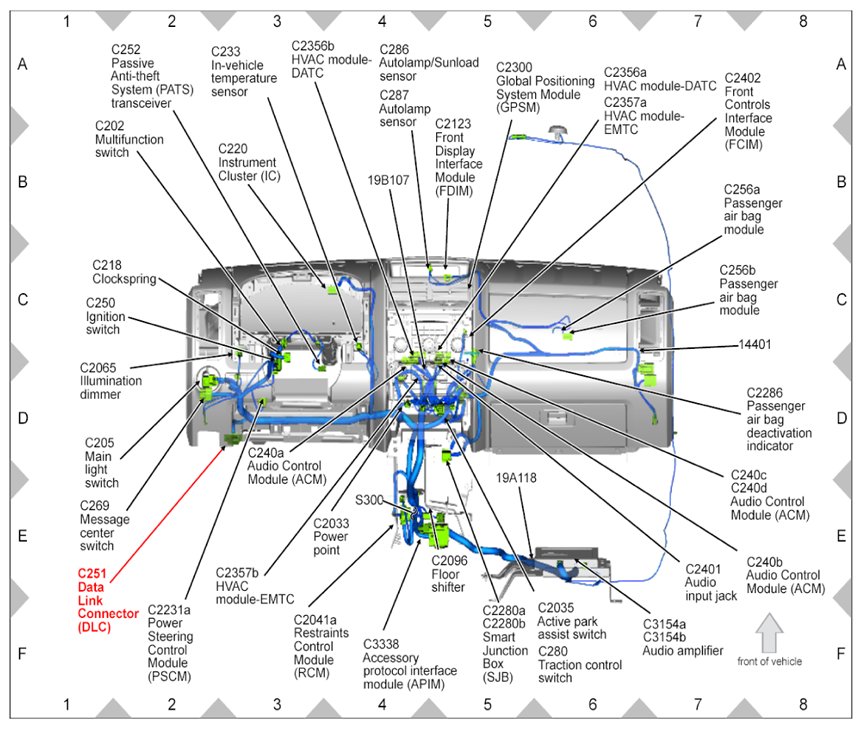

Fig 92: Identifying C251 Data Link Connector (DLC) Location - Below Left Side Of Instrument Panel

Courtesy of FORD MOTOR CO.

Fig 93: Identifying C252 Passive Anti-theft System (PATS) Transceiver Location - On Steering Column

Courtesy of FORD MOTOR CO.

Fig 94: Identifying C256A Passenger Air Bag Module Location - Behind Instrument Panel Right Center

Courtesy of FORD MOTOR CO.

Fig 95: Identifying C256B Passenger Air Bag Module Location - Behind Instrument Panel Right Center

Courtesy of FORD MOTOR CO.

Fig 96: Identifying C263 Connector Location - Under Center Console

Courtesy of FORD MOTOR CO.

Fig 97: Identifying C264 Connector Location - Under Center Console

Courtesy of FORD MOTOR CO.

Fig 98: Identifying C269 Message Center Switch Location - Behind Instrument Panel Left Side

Courtesy of FORD MOTOR CO.

Fig 99: Identifying C278 Brake Pedal Position Switch Location - Behind Left Side Of Instrument Panel, Near Pedal Support

Courtesy of FORD MOTOR CO.

Fig 100: Identifying C280 Traction Control Switch Location - Behind Instrument Panel Center

Courtesy of FORD MOTOR CO.

Fig 101: Identifying C286 Autolamp/Sunload Sensor Location - Behind Instrument Panel Upper Center

Courtesy of FORD MOTOR CO.

Fig 102: Identifying C287 Autolamp Sensor Location - Behind Instrument Panel Upper Center

Courtesy of FORD MOTOR CO.

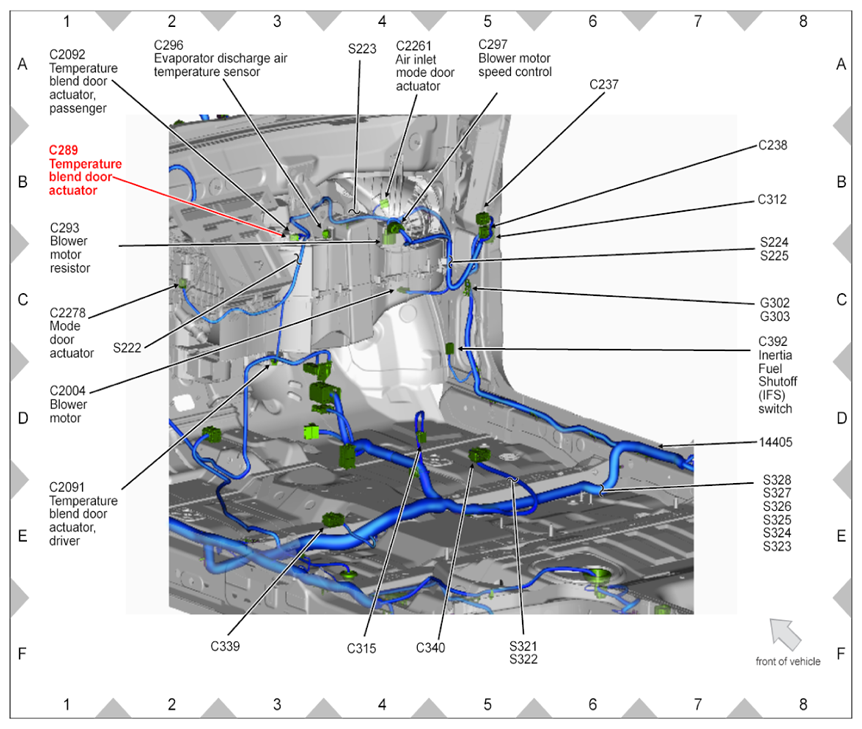

Fig 103: Identifying C289 Temperature Blend Door Actuator Location - (Manual A/C) On HVAC Case, Top

Courtesy of FORD MOTOR CO.

Fig 104: Identifying C293 Blower Motor Resistor Location - (Manual A/C) On HVAC Case, Right Side

Courtesy of FORD MOTOR CO.

Fig 105: Identifying C296 Evaporator Discharge Air Temperature Sensor Location - On HVAC Case, Top

Courtesy of FORD MOTOR CO.

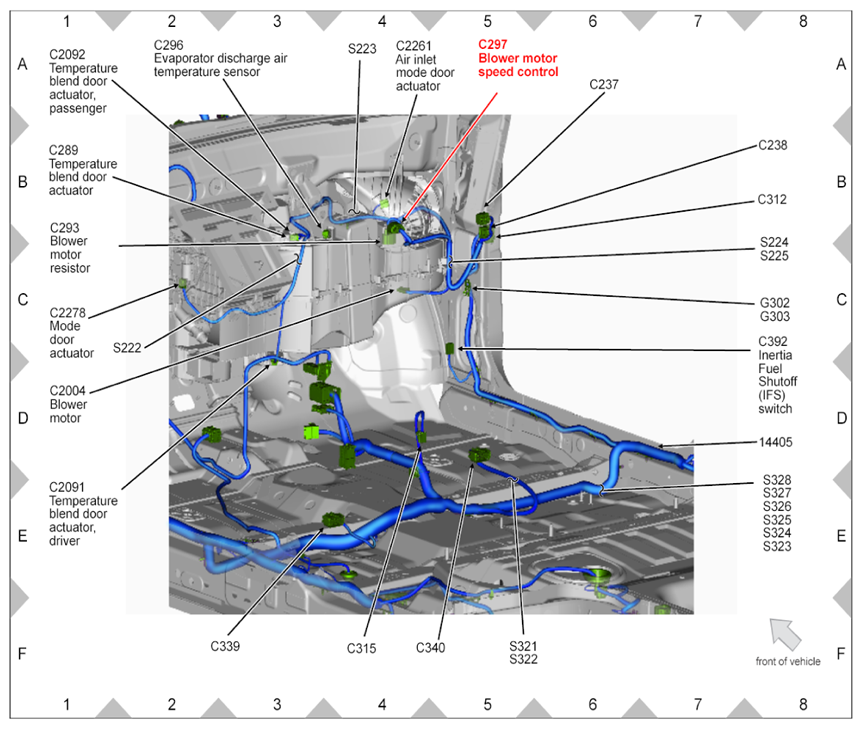

Fig 106: Identifying C297 Blower Motor Speed Control Location - On HVAC Case, Right Side

Courtesy of FORD MOTOR CO.

Fig 107: Identifying C303 Passenger Safety Belt Retractor Pretensioner Location - Right Side B-Pillar

Courtesy of FORD MOTOR CO.

Fig 108: Identifying C311 Connector Location - Right B Pillar

Courtesy of FORD MOTOR CO.

Fig 109: Identifying C312 Connector Location - In Right A Pillar

Courtesy of FORD MOTOR CO.

Fig 110: Identifying C313 Connector Location - Left B Pillar

Courtesy of FORD MOTOR CO.

Fig 111: Identifying C314 Connector Location - In Left A Pillar

Courtesy of FORD MOTOR CO.

Fig 112: Identifying C315 Connector Location - Under Center Console

Courtesy of FORD MOTOR CO.

Fig 113: Identifying C316 Connector Location - Under Center Console

Courtesy of FORD MOTOR CO.

Fig 114: Identifying C323 Driver Safety Belt Retractor Pretensioner Location - Left B-Pillar

Courtesy of FORD MOTOR CO.

Fig 115: Identifying C327 Connector Location - Under Left Center Of Body

Courtesy of FORD MOTOR CO.

Fig 116: Identifying C337/C3255 Side Air Bag Module, Right Location - In Passenger Seat, Left Side

Courtesy of FORD MOTOR CO.

Fig 117: Identifying C339 Connector Location - In Driver Seat, Front

Courtesy of FORD MOTOR CO.

Fig 118: Identifying C340 Connector Location - In Passenger Seat, Front

Courtesy of FORD MOTOR CO.

Fig 119: Identifying C352 Seat Control Switch, Left Location - In Driver Seat, Left Side

Courtesy of FORD MOTOR CO.

Fig 120: Identifying C353 Power Seat Motor Assembly, Left Location - In Driver Seat, Left Side

Courtesy of FORD MOTOR CO.

Fig 121: Identifying C356 Seat Position Sensor, Driver Location - In Driver Seat, Right Side

Courtesy of FORD MOTOR CO.

Fig 122: Identifying C377 EVAP Canister Vent Control Solenoid Location - Under Left Center Of Body

Courtesy of FORD MOTOR CO.

Fig 123: Identifying C380 Power Point, Console Location - Center Console, Rear

Courtesy of FORD MOTOR CO.

Fig 124: Identifying C389 Safety Belt Tensioner, Passenger Location - Bottom Right Side B-Pillar

Courtesy of FORD MOTOR CO.

Fig 125: Identifying C392 Inertia Fuel Shutoff (IFS) Switch Location - Passenger Side Kick Panel

Courtesy of FORD MOTOR CO.

Fig 126: Identifying C402A Rear Window Defrost Grid Location - Right Side Of Rear Window

Courtesy of FORD MOTOR CO.

Fig 127: Identifying C402B Rear Window Defrost Grid Location - Left Side Of Rear Window

Courtesy of FORD MOTOR CO.

Fig 128: Identifying C405 Connector Location - Top Right Side Of Liftgate

Courtesy of FORD MOTOR CO.

Fig 129: Identifying C408 Connector Location - Left Side Of Liftgate

Courtesy of FORD MOTOR CO.

Fig 130: Identifying C410 Connector Location - Center Of Liftgate

Courtesy of FORD MOTOR CO.

Fig 131: Identifying C421 Connector Location - Left Rear Vehicle Under Bumper

Courtesy of FORD MOTOR CO.

Fig 132: Identifying C421 Connector Location - (With Parking Aid) Left Rear Vehicle Under Bumper

Courtesy of FORD MOTOR CO.

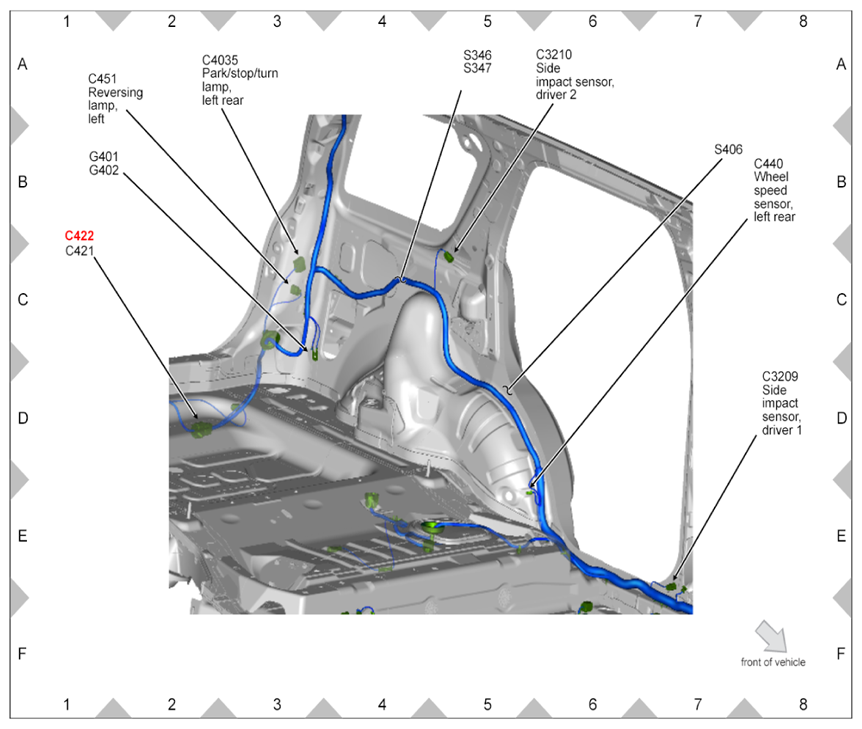

Fig 133: Identifying C422 Connector Location - (With Parking Aid) Left Rear Vehicle Under Bumper

Courtesy of FORD MOTOR CO.

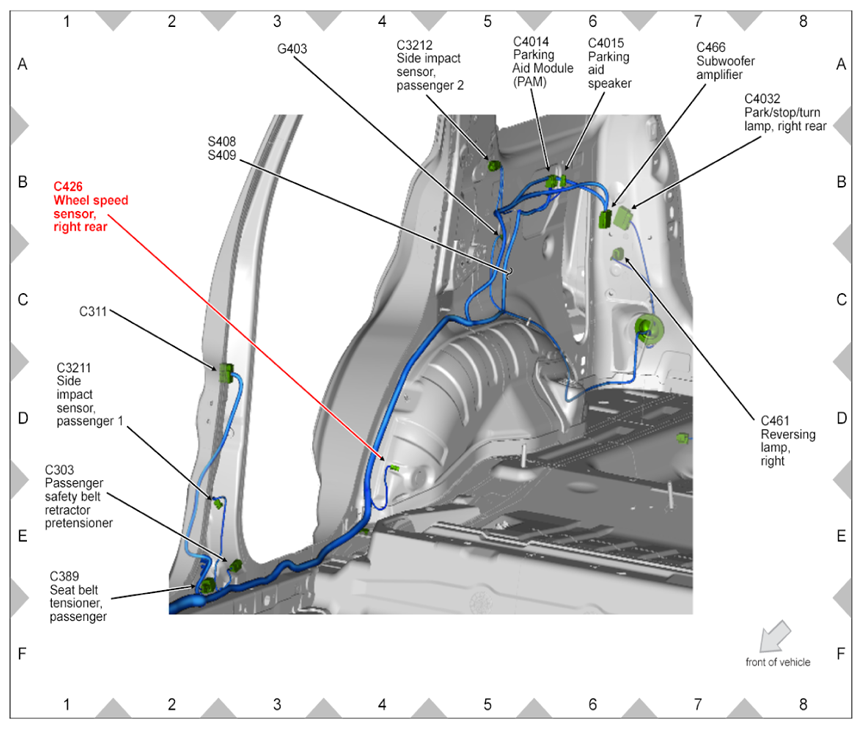

Fig 134: Identifying C426 Wheel Speed Sensor, Right Rear Location - Right Side Of Cargo Area, Near Front Of Wheel House

Courtesy of FORD MOTOR CO.

Fig 135: Identifying C433 Fuel Tank Unit Location - Under Left Rear Of Body

Courtesy of FORD MOTOR CO.

Fig 136: Identifying C435 Fuel Tank Pressure Sensor Location - Under Left Rear Of Body

Courtesy of FORD MOTOR CO.

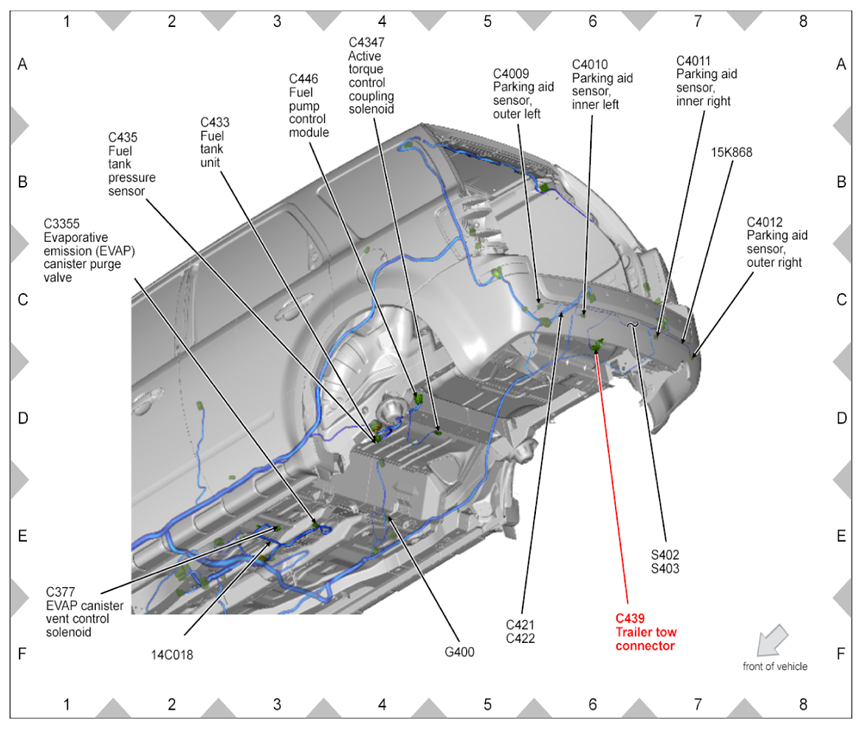

Fig 137: Identifying C439 Trailer Tow Connector Location - Rear Bumper, Center

Courtesy of FORD MOTOR CO.

Fig 138: Identifying C440 Wheel Speed Sensor, Left Rear Location - Left Side Of Cargo Area, Near Front Of Wheel House

Courtesy of FORD MOTOR CO.

Fig 139: Identifying C446 Fuel Pump Control Module Location - Under Left Rear Of Body

Courtesy of FORD MOTOR CO.

Fig 140: Identifying C451 Reversing Lamp, Left Location - Left Rear Corner Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 141: Identifying C452 Licence Plate Lamp, Left Location - Center Of Liftgate, Below Rear Window

Courtesy of FORD MOTOR CO.

Fig 142: Identifying C456 Liftgate Release Switch Location - Center Of Liftgate, Below Rear Window

Courtesy of FORD MOTOR CO.

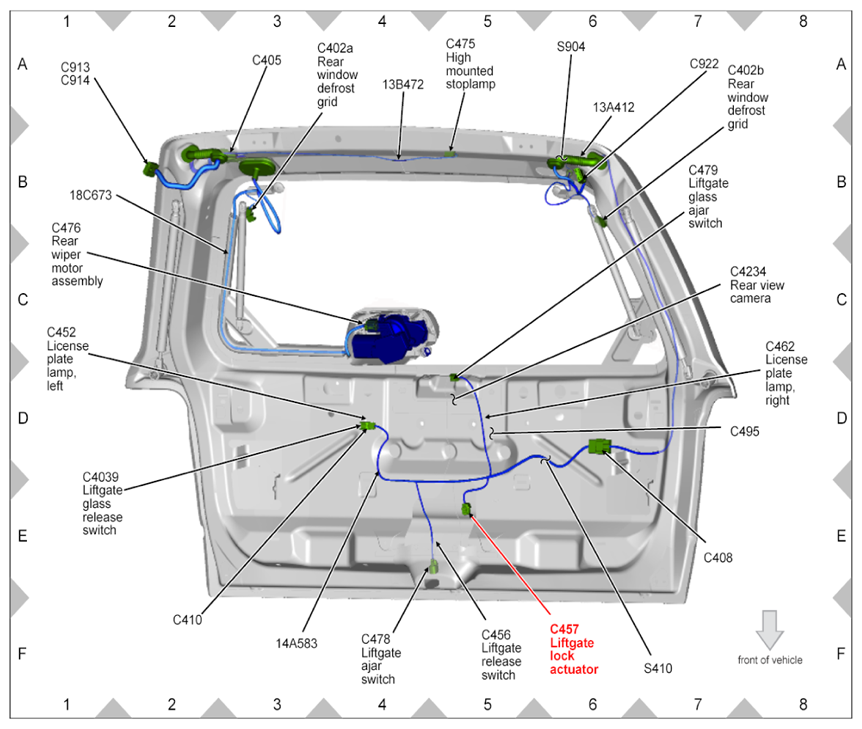

Fig 143: Identifying C457 Liftgate Lock Actuator Location - Bottom Center Of Liftgate

Courtesy of FORD MOTOR CO.

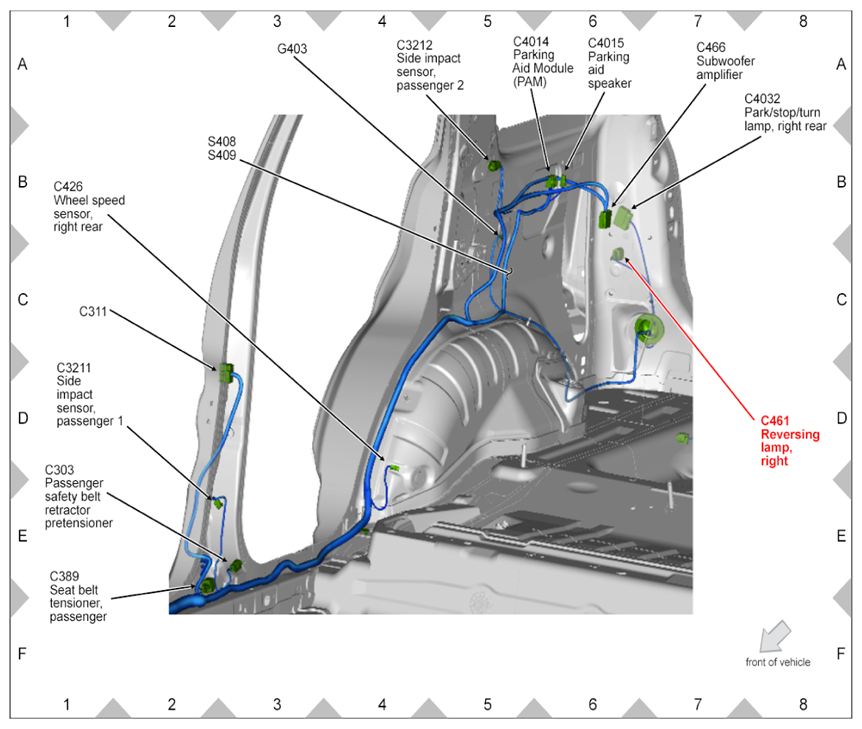

Fig 144: Identifying C461 Reversing Lamp, Right Location - Right Rear Corner Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 145: Identifying C462 Licence Plate Lamp, Right Location - Center Of Liftgate, Below Rear Window

Courtesy of FORD MOTOR CO.

Fig 146: Identifying C466 Subwoofer Amplifier Location - Right Side Of Cargo Area, Behind Wheel House

Courtesy of FORD MOTOR CO.

Fig 147: Identifying C475 High Mounted Stoplamp Location - Top Center Of Liftgate, Above Rear Window

Courtesy of FORD MOTOR CO.

Fig 148: Identifying C476 Rear Wiper Motor Assembly Location - In Liftgate, At Bottom Of Rear Window

Courtesy of FORD MOTOR CO.

Fig 149: Identifying C478 Liftgate Ajar Switch Location - Bottom Center Of Liftgate

Courtesy of FORD MOTOR CO.

Fig 150: Identifying C479 Liftgate Glass Ajar Switch Location - Center Of Liftgate, Below Rear Window

Courtesy of FORD MOTOR CO.

Fig 151: Identifying C495 Connector Location - Center Of Liftgate, Below Rear Window

Courtesy of FORD MOTOR CO.

Fig 152: Identifying C500 Keypad Switch Assembly Location - In Driver Door, Top Rear

Courtesy of FORD MOTOR CO.

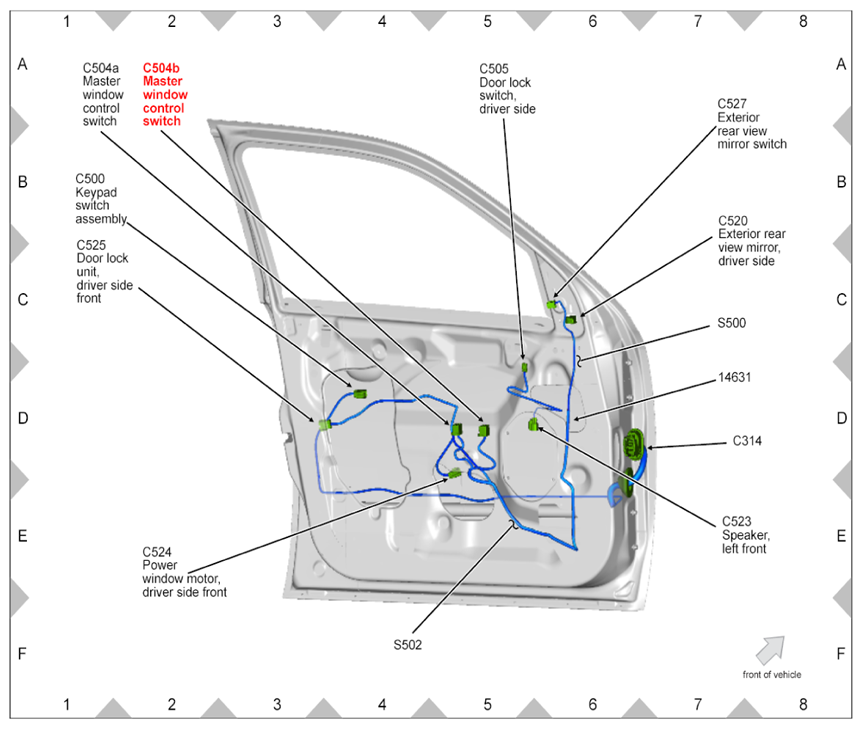

Fig 153: Identifying C504A Master Window Control Switch Location - In Driver Door, Center

Courtesy of FORD MOTOR CO.

Fig 154: Identifying C504B Master Window Control Switch Location - In Driver Door, Center

Courtesy of FORD MOTOR CO.

Fig 155: Identifying C505 Door Lock Switch, Driver Side Location - In Driver Door, Front

Courtesy of FORD MOTOR CO.

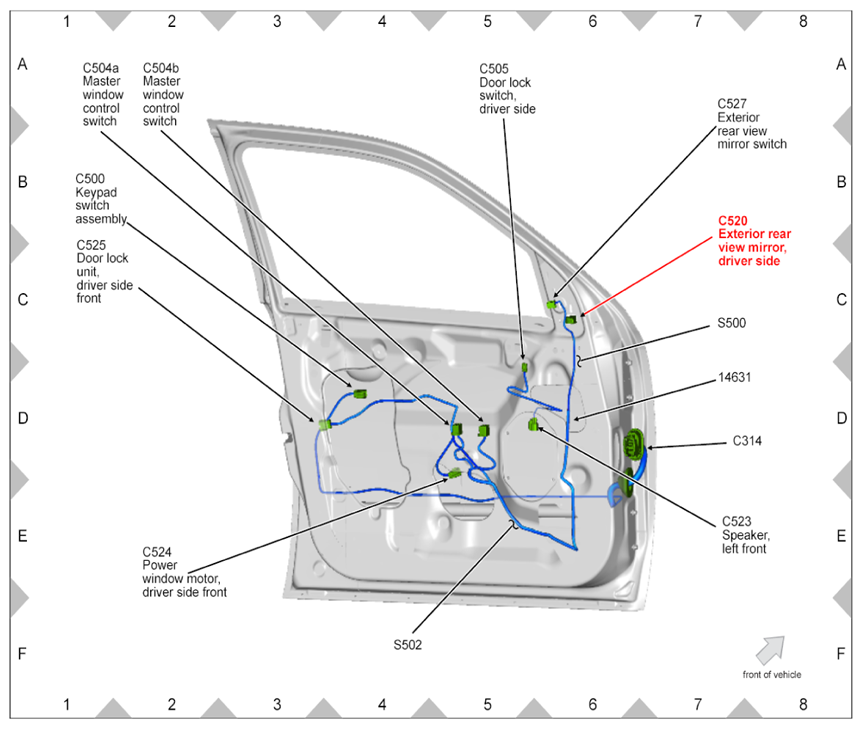

Fig 156: Identifying C520 Extension Rear View Mirror, Driver Side Location - In Driver Door, Top Front

Courtesy of FORD MOTOR CO.

Fig 157: Identifying C523 Speaker, Left Front Location - In Left Front Door, Front

Courtesy of FORD MOTOR CO.

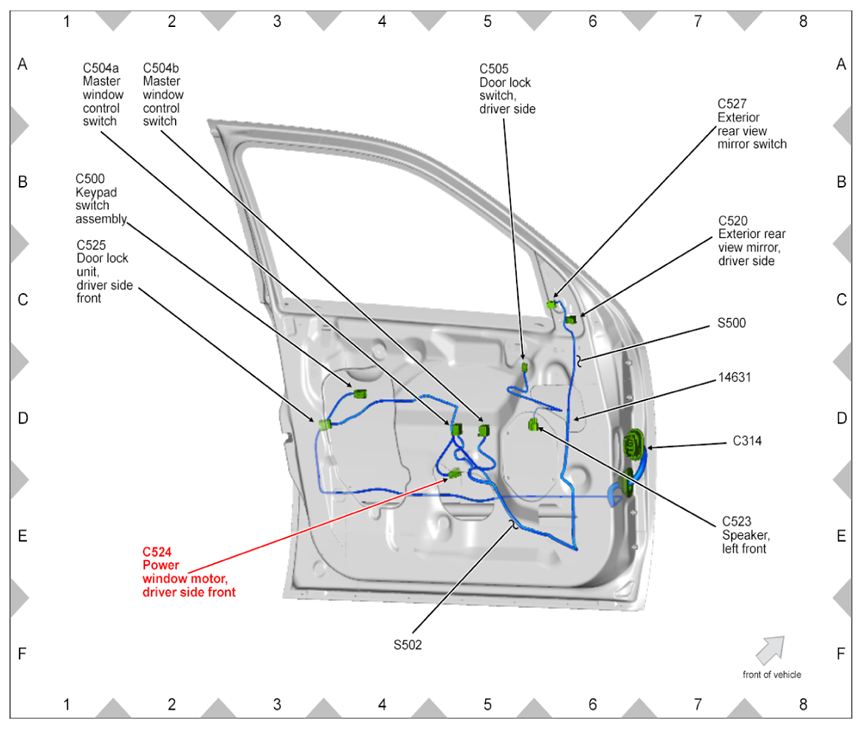

Fig 158: Identifying C524 Power Window Motor, Driver Side Front Location - In Driver Door, Center

Courtesy of FORD MOTOR CO.

Fig 159: Identifying C525 Door Lock Unit, Driver Side Front Location - In Driver Door, Rear

Courtesy of FORD MOTOR CO.

Fig 160: Identifying C527 Exterior Rear View Mirror Switch Location - In Driver Door, Top Front

Courtesy of FORD MOTOR CO.

Fig 161: Identifying C601 Exterior Rear View Mirror, Passenger Side Location - In Right Front Door, Top Front

Courtesy of FORD MOTOR CO.

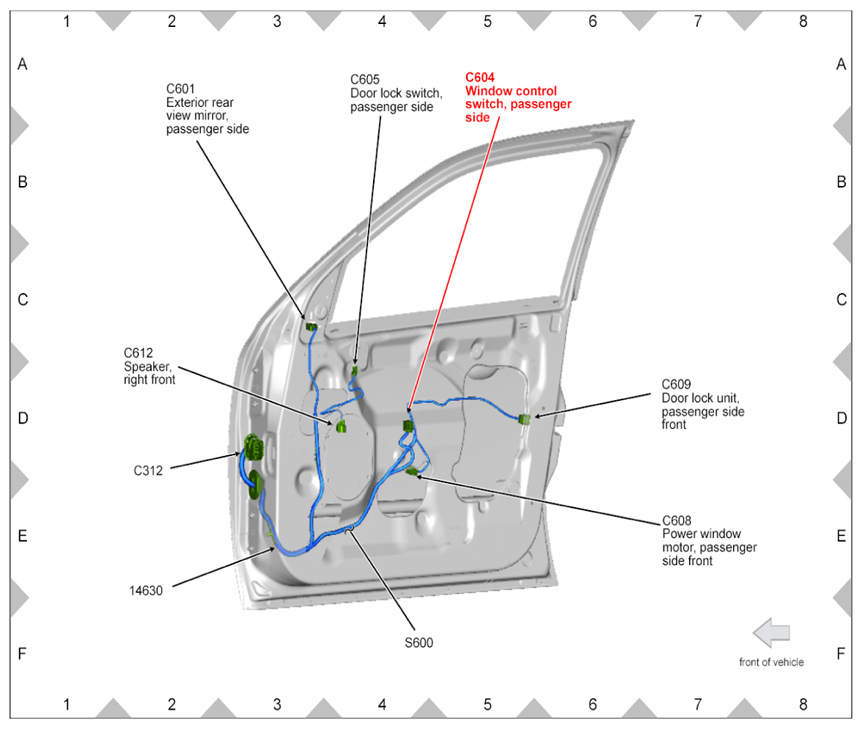

Fig 162: Identifying C604 Window Control Switch, Passenger Side Location - In Right Front Door, Center

Courtesy of FORD MOTOR CO.

Fig 163: Identifying C605 Door Lock Switch, Passenger Side Location - In Right Front Door, Front

Courtesy of FORD MOTOR CO.

Fig 164: Identifying C608 Power Window Motor, Passenger Side Front Location - In Right Front Door, Center

Courtesy of FORD MOTOR CO.

Fig 165: Identifying C609 Door Lock Unit, Passenger Side Front Location - In Right Front Door, Rear

Courtesy of FORD MOTOR CO.

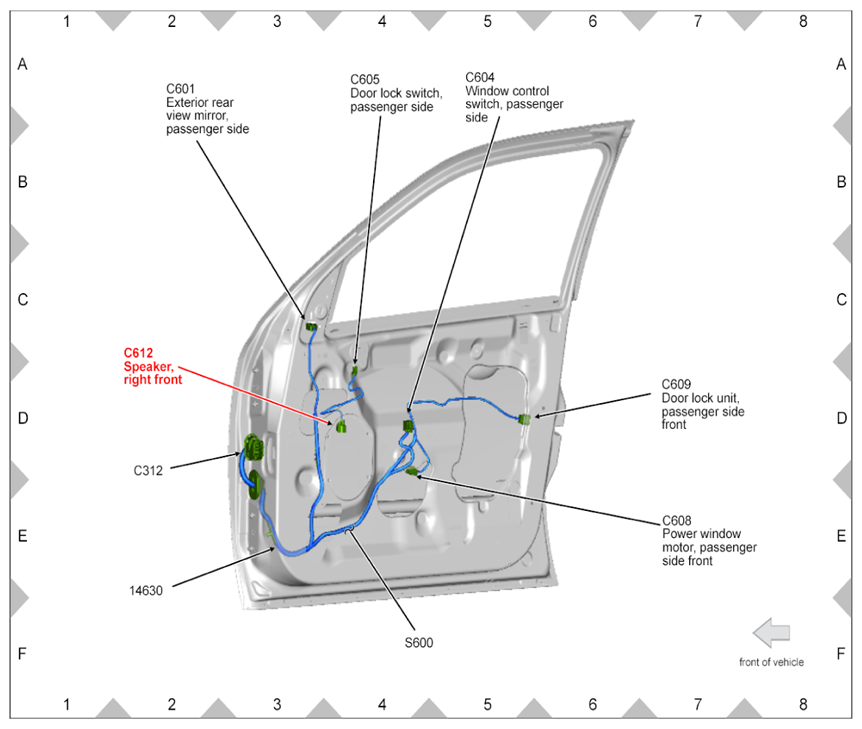

Fig 166: Identifying C612 Speaker, Right Front Location - In Right Front Door, Front

Courtesy of FORD MOTOR CO.

Fig 167: Identifying C701 Window Control Switch, Left Rear Location - In Right Rear Door, Center

Courtesy of FORD MOTOR CO.

Fig 168: Identifying C702 Speaker, Left Rear Location - In Left Rear Door, Front Bottom

Courtesy of FORD MOTOR CO.

Fig 169: Identifying C703 Power Window Motor, Left Rear Location - In Left Rear Door, Center

Courtesy of FORD MOTOR CO.

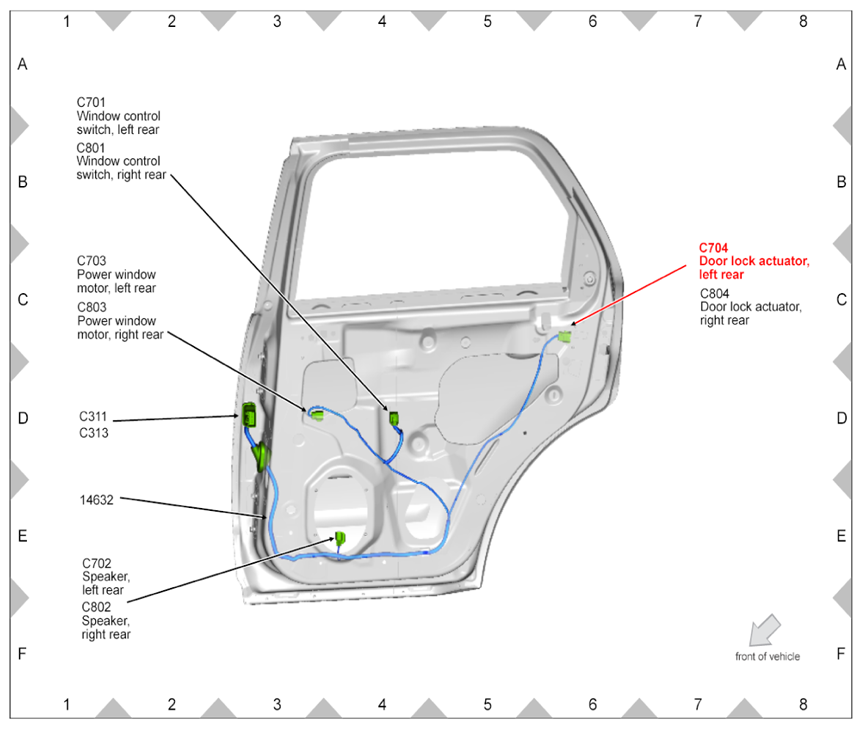

Fig 170: Identifying C704 Door Lock Actuator, Left Rear Location - In Left Rear Door, Rear

Courtesy of FORD MOTOR CO.

Fig 171: Identifying C801 Window Control Switch, Right Rear Location - In Right Rear Door, Center

Courtesy of FORD MOTOR CO.

Fig 172: Identifying C802 Speaker, Right Rear Location - In Right Rear Door, Front Bottom

Courtesy of FORD MOTOR CO.

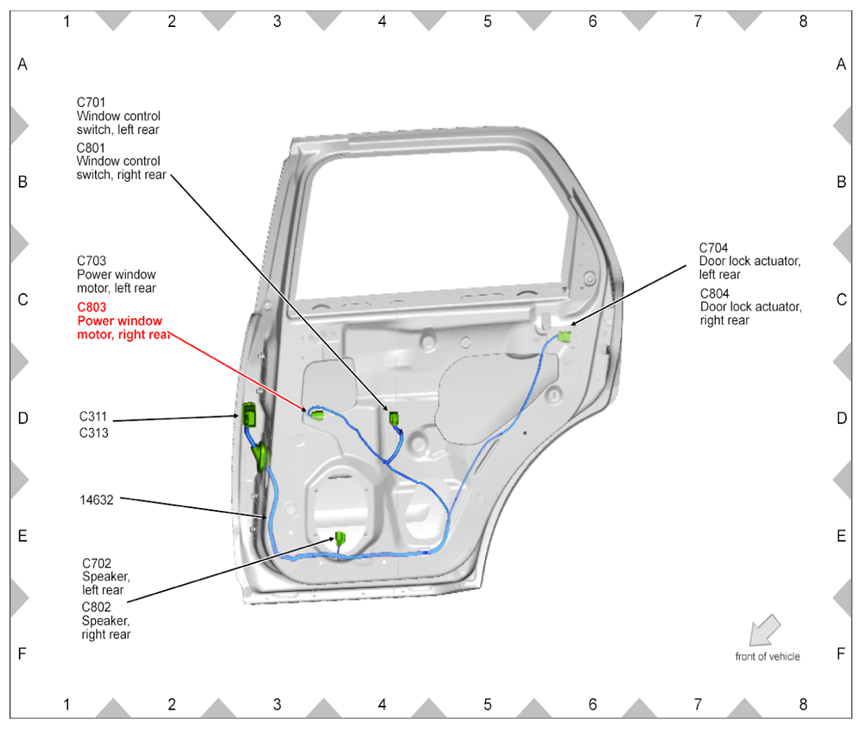

Fig 173: Identifying C803 Power Window Motor, Right Rear Location - In Right Rear Door, Center

Courtesy of FORD MOTOR CO.

Fig 174: Identifying C804 Door Lock Actuator, Right Rear Location - In Right Rear Door, Rear

Courtesy of FORD MOTOR CO.

Fig 175: Identifying C906 Vanity Mirror Lamp, Right Location - Right Front Corner Of Headliner

Courtesy of FORD MOTOR CO.

Fig 176: Identifying C907 Vanity Mirror Lamp, Left Location - Left Front Corner Of Headliner

Courtesy of FORD MOTOR CO.

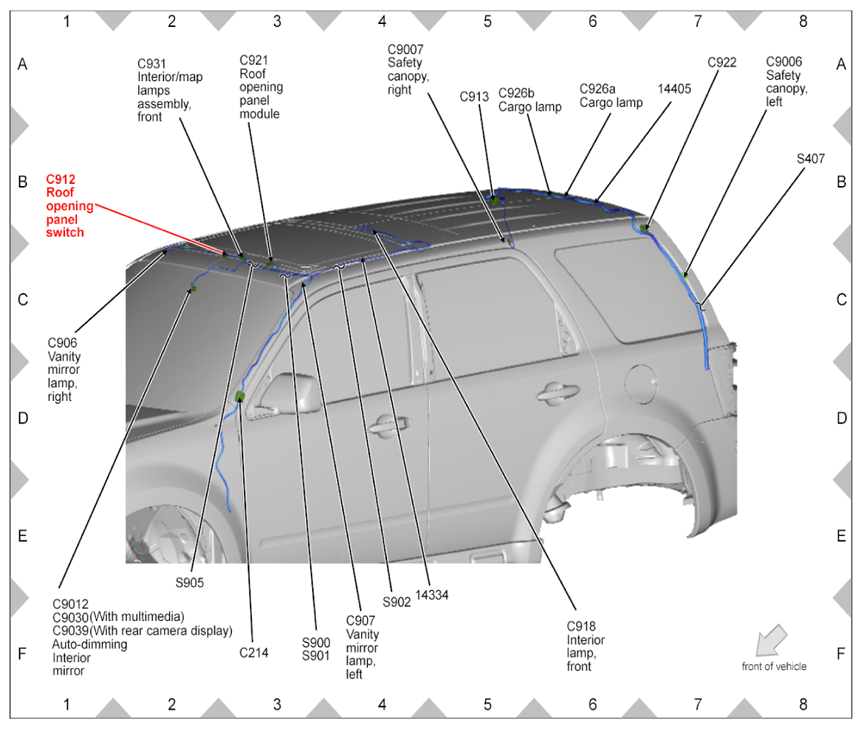

Fig 177: Identifying C912 Roof Opening Panel Switch Location - Center Front Of Headliner

Courtesy of FORD MOTOR CO.

Fig 178: Identifying C913 Connector Location - Right D Pillar

Courtesy of FORD MOTOR CO.

Fig 179: Identifying C914 Connector Location - Top Right Side Of Liftgate

Courtesy of FORD MOTOR CO.

Fig 180: Identifying C918 Interior Lamp, Front Location - Center Of Roof

Courtesy of FORD MOTOR CO.

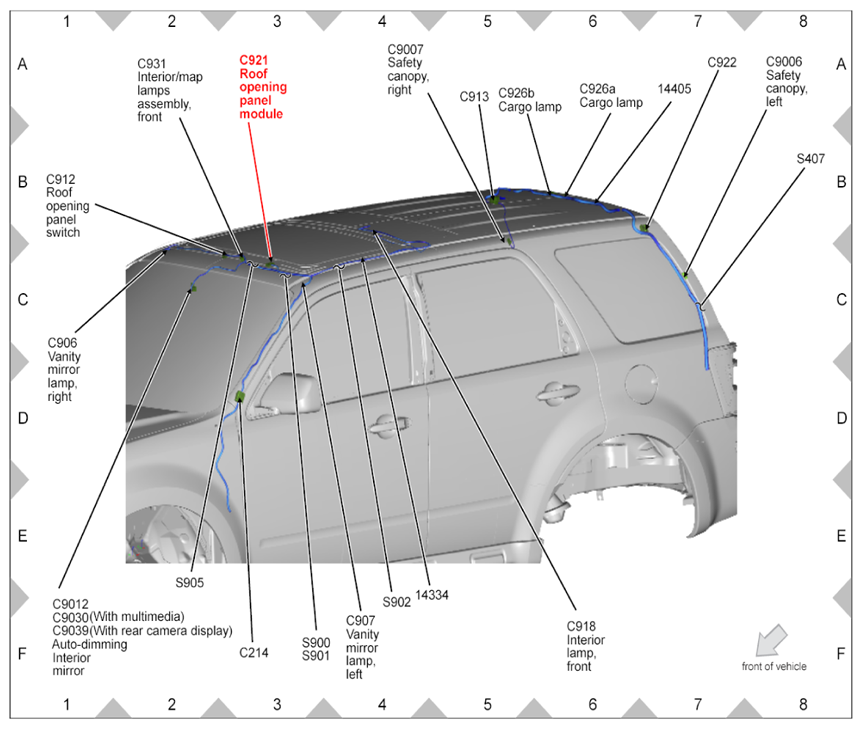

Fig 181: Identifying C921 Roof Opening Panel Module Location - Front Center Of Headliner

Courtesy of FORD MOTOR CO.

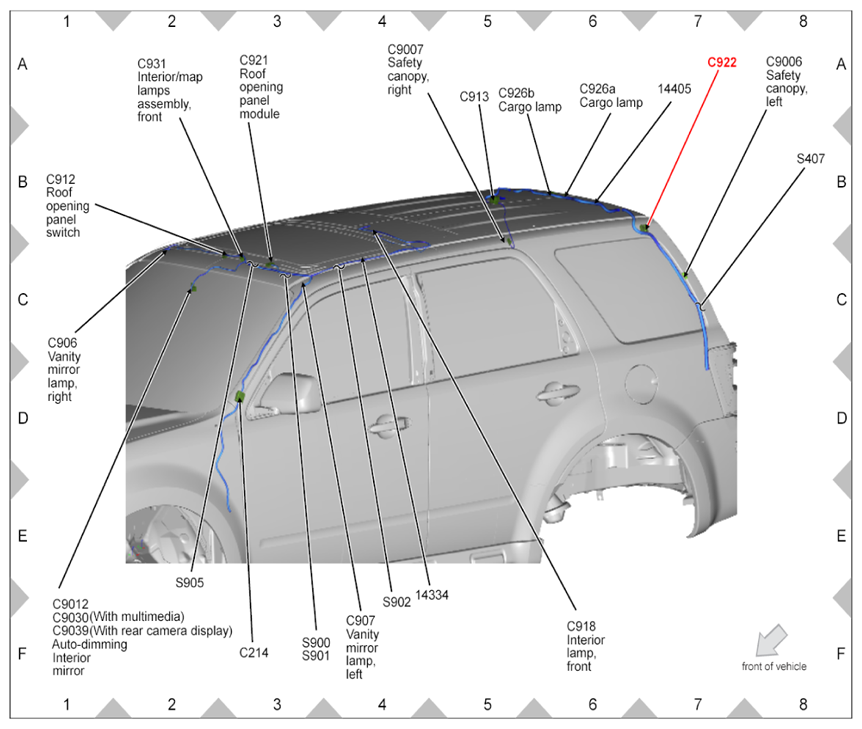

Fig 182: Identifying C922 Connector Location - Left D Pillar

Courtesy of FORD MOTOR CO.

Fig 183: Identifying C926A Cargo Lamp Location - Center Rear Of Headliner

Courtesy of FORD MOTOR CO.

Fig 184: Identifying C926B Cargo Lamp Location - Center Rear Of Headliner

Courtesy of FORD MOTOR CO.

Fig 185: Identifying C931 Interior/Map Lamps Assembly, Front Location - Front Center Of Roof

Courtesy of FORD MOTOR CO.

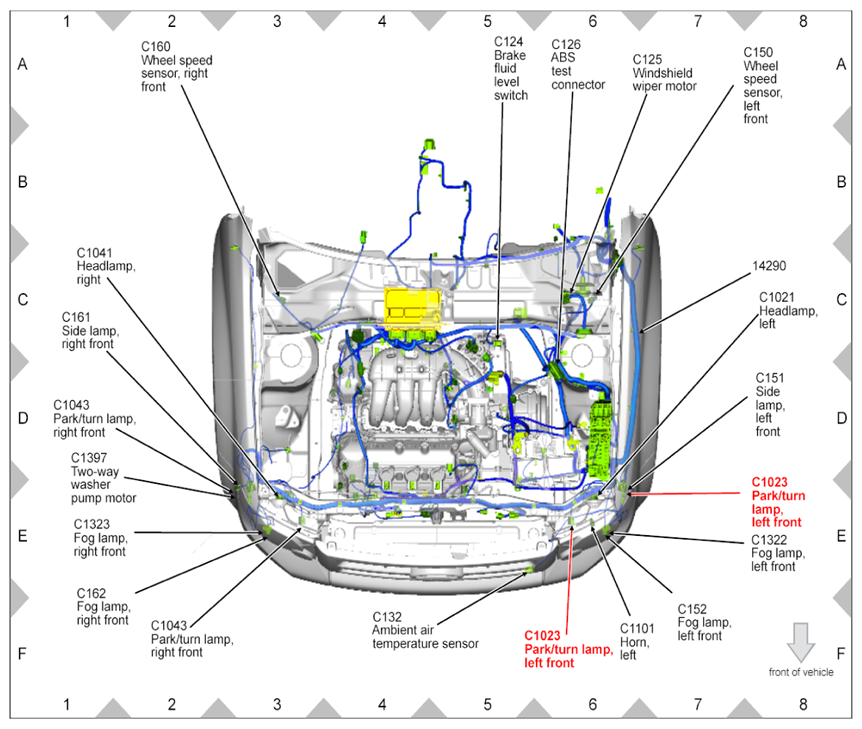

Fig 186: Identifying C1021 Headlamp, Left Location - Left Front Corner Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 187: Identifying C1023 Park/Turn Lamp, Left Front Location - (ESCAPE) Left Front Corner Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 188: Identifying C1023 Park/Turn Lamp, Left Front Location - (MARINER) Left Front Corner Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 189: Identifying C1027 Engine Cooling Fan Resistor Location - Front Center Left Of Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 190: Identifying C1035A Battery Junction Box (BJB) Location - Left Front Corner Of Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 191: Identifying C1035B Connector Location - Left Front Corner Of Engine Compartment On Battery Junction Box (BJB)

Courtesy of FORD MOTOR CO.

Fig 192: Identifying C1035C Connector Location - Left Front Corner Of Engine Compartment On Battery Junction Box (BJB)

Courtesy of FORD MOTOR CO.

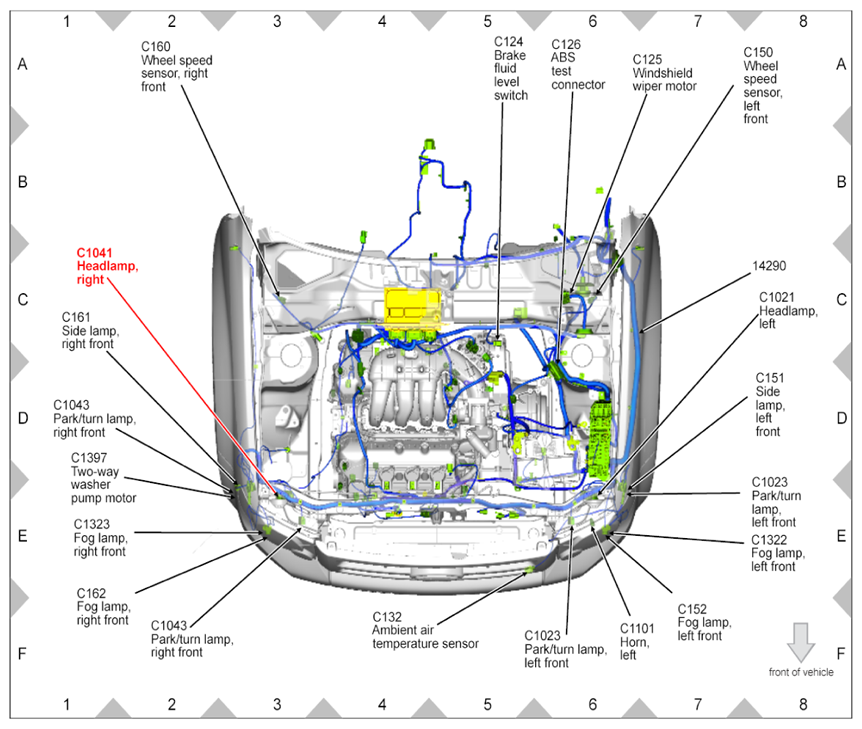

Fig 193: Identifying C1041 Headlamp, Right Location - Right Front Corner Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 194: Identifying C1043 Park/Turn Lamp, Right Front Location - (ESCAPE) Right Front Corner Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 195: Identifying C1043 Park/Turn Lamp, Right Front Location - (MARINER) Right Front Corner Of Vehicle

Courtesy of FORD MOTOR CO.

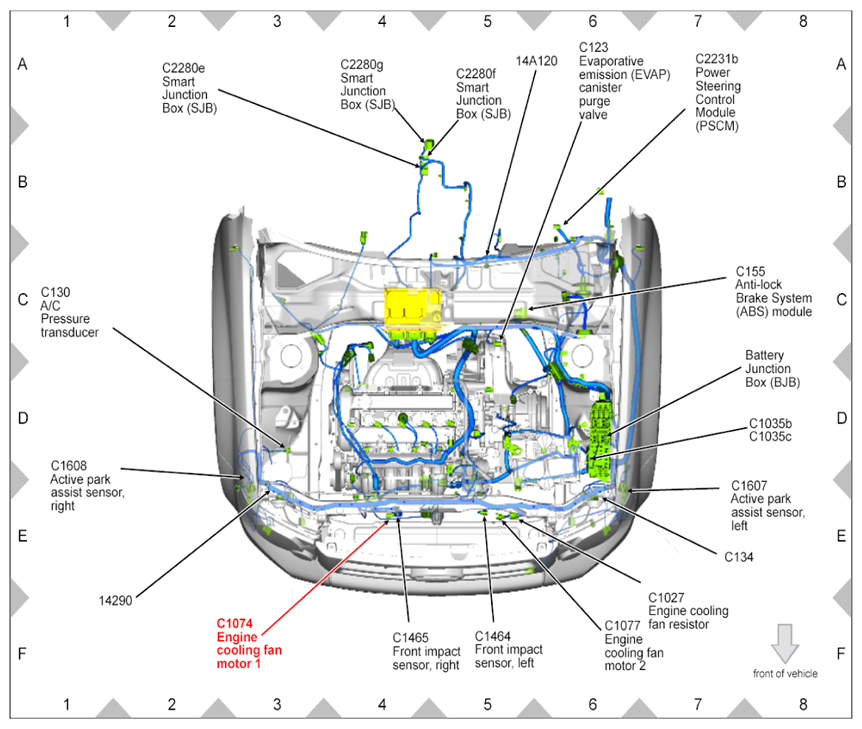

Fig 196: Identifying C1074 Engine Cooling Fan 1 Location - Front Center Right Of Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 197: Identifying C1077 Engine Cooling Fan 2 Location - Front Center Left Of Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 198: Identifying C1087 Manifold Absolute Pressure (MAP) Sensor Location - (2.5L) Left Side Of Engine, Near

Courtesy of FORD MOTOR CO.

Fig 199: Identifying C1100A Battery Location - Left Front Corner Of Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 200: Identifying C1100B Battery Location - Left Front Corner Of Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 201: Identifying C1101 Horn, Left Location - Left Front Corner Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 202: Identifying C1104A Generator Location - Front Of Engine, On Right Side, At Generator

Courtesy of FORD MOTOR CO.

Fig 203: Identifying C1104B Generator Location - Front Of Engine, On Right Side, At Generator

Courtesy of FORD MOTOR CO.

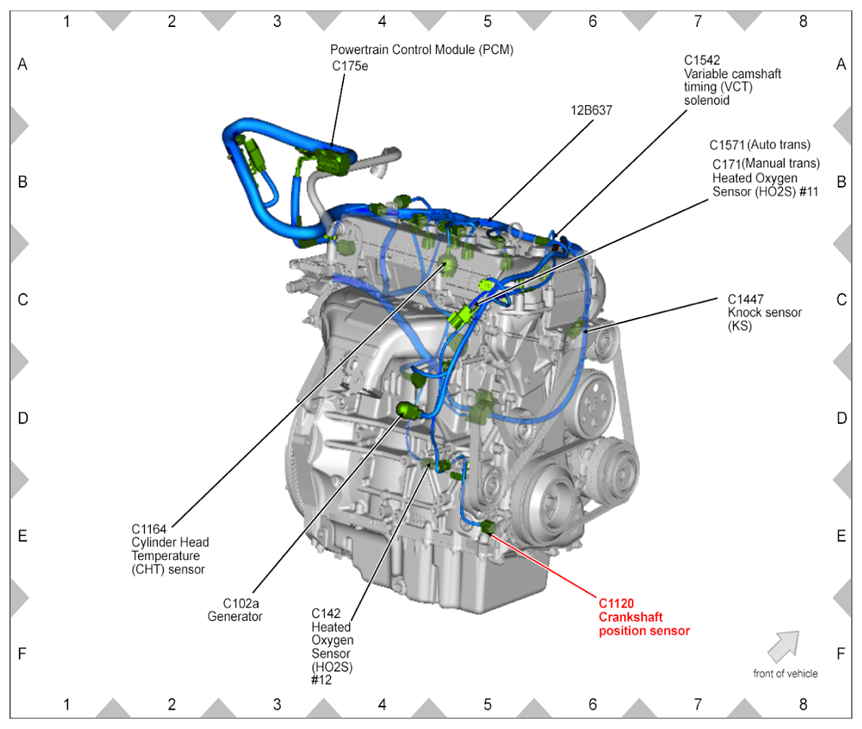

Fig 204: Identifying C1120 Crankshaft Position Sensor Location - (2.5L) Bottom Of Engine, Near Crankshaft Pulley

Courtesy of FORD MOTOR CO.

Fig 205: Identifying C1140 Manifold Absolute Pressure (MAP) Sensor Location - (3.0L) Rear Of Engine Compartment, On Bulkhead

Courtesy of FORD MOTOR CO.

Fig 206: Identifying C1160 EGR Stepper Motor Location - (2.5L) Top Of Engine, At Rear Of Cylinder Head

Courtesy of FORD MOTOR CO.

Fig 207: Identifying C1160 EGR Stepper Motor Location - (3.0L) Left Side Of Engine

Courtesy of FORD MOTOR CO.

Fig 208: Identifying C1164 Cylinder Head Temperature (CHT) Sensor Location - (2.5L) Top Of Engine, On Valve Cover

Courtesy of FORD MOTOR CO.

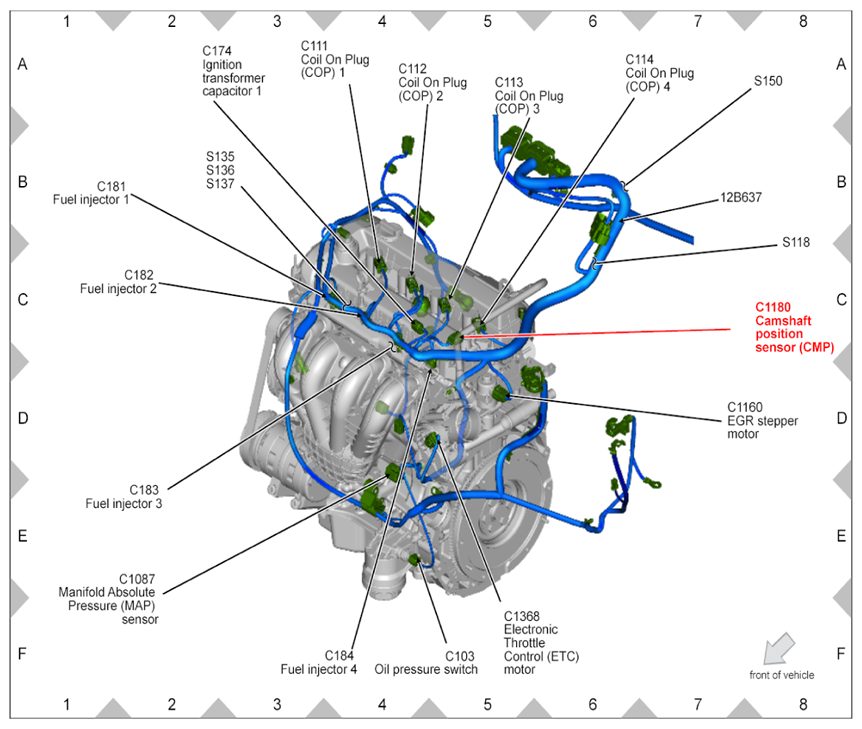

Fig 209: Identifying C1180 Camshaft Position Sensor (CMP) Location - (2.5L) Top Of Engine, On Valve Cover

Courtesy of FORD MOTOR CO.

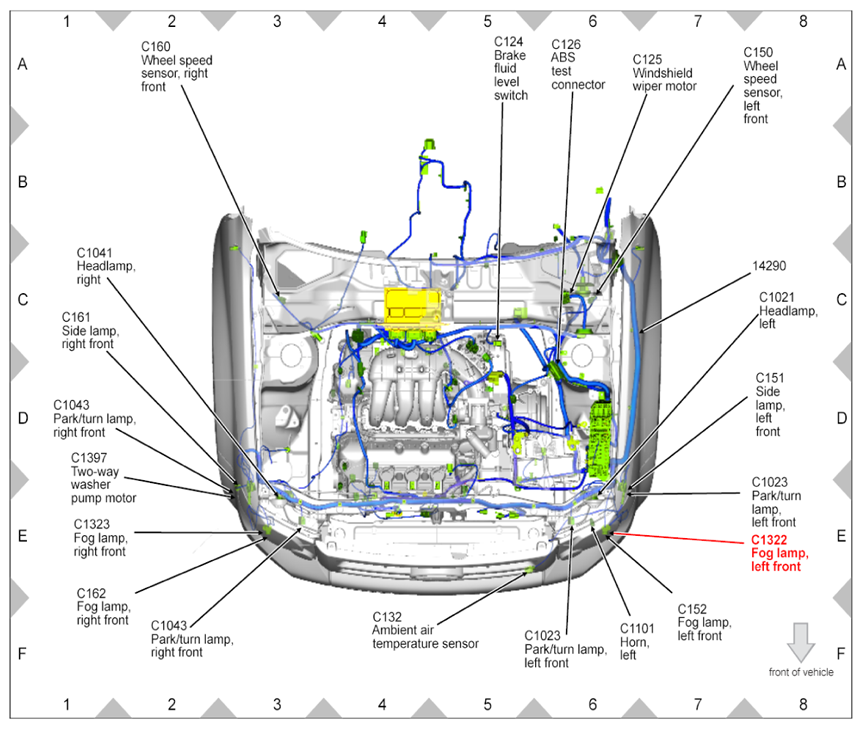

Fig 210: Identifying C1322 Fog Lamp, Left Front Location - (ESCAPE) Left Front Corner Of Vehicle

Courtesy of FORD MOTOR CO.

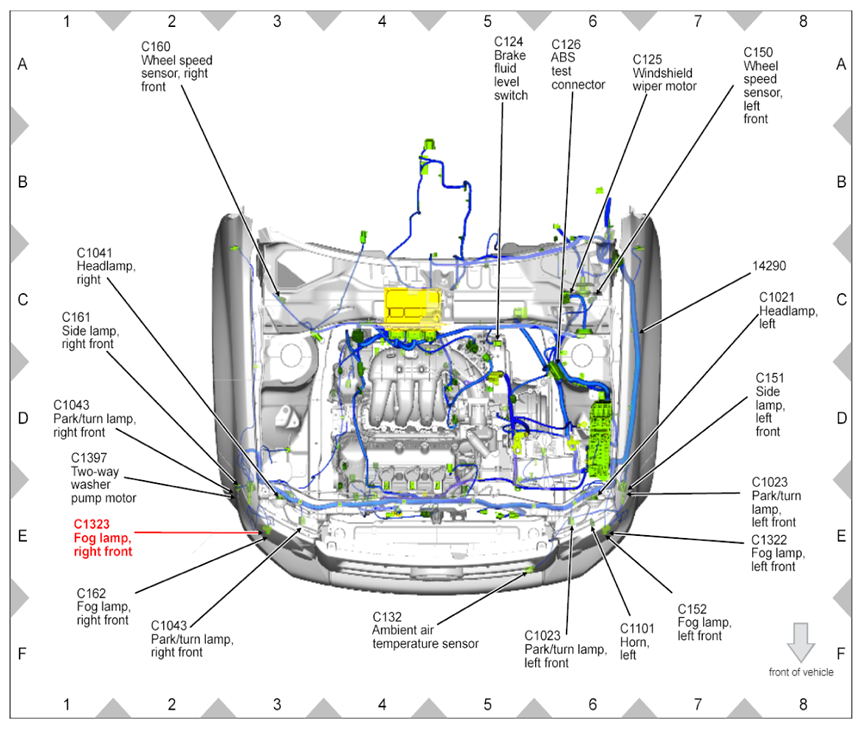

Fig 211: Identifying C1323 Fog Lamp, Right Front Location - (ESCAPE) Right Front Corner Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 212: Identifying C1366 Camshaft Position Sensor 1 (CMP1) Location - Front Of Engine

Courtesy of FORD MOTOR CO.

Fig 213: Identifying C1367 Camshaft Position Sensor 2 (CMP2) Location - Front Of Engine

Courtesy of FORD MOTOR CO.

Fig 214: Identifying C1368 Electronic Throttle Control (ETC) Motor Location - (2.5L) Top Of Engine, On Throttle Body

Courtesy of FORD MOTOR CO.

Fig 215: Identifying C1368 Electronic Throttle Control (ETC) Motor Location - (3.0L) Left Side Of Engine

Courtesy of FORD MOTOR CO.

Fig 216: Identifying C1397 Two-Way Washer Pump Motor Location - Right Front Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 217: Identifying C1447 Knock Sensor (KS) Location - Top Of Engine

Courtesy of FORD MOTOR CO.

Fig 218: Identifying C1451 Variable Camshaft Timing (VCT) Solenoid 1 Location - Top Of Engine

Courtesy of FORD MOTOR CO.

Fig 219: Identifying C1452 Variable Camshaft Timing (VCT) Solenoid 2 Location - Top Of Engine

Courtesy of FORD MOTOR CO.

Fig 220: Identifying C1464 Front Impact Sensor, Left Location - Front Center Left Of Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 221: Identifying C1465 Front Impact Sensor, Right Location - Front Center Right Of Engine Compartment

Courtesy of FORD MOTOR CO.

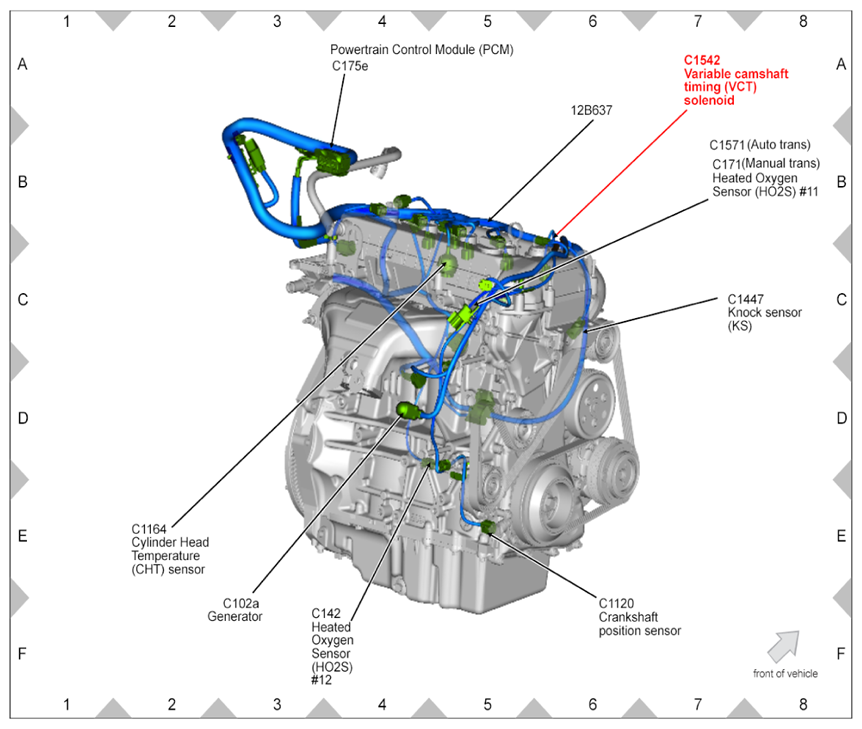

Fig 222: Identifying C1542 Variable Camshaft Timing (VCT) Solenoid Location - Top Of Engine

Courtesy of FORD MOTOR CO.

Fig 223: Identifying C1571 Universal Heated Oxygen Sensor (HO2S) #11 Location - Rear Of Engine

Courtesy of FORD MOTOR CO.

Fig 224: Identifying C1571 Connector Location - (Automatic Transmission)

Courtesy of FORD MOTOR CO.

Fig 225: Identifying C1572 Universal Heated Oxygen Sensor (HO2S) #21 Location - Left Side Of Engine

Courtesy of FORD MOTOR CO.

Fig 226: Identifying C1607 Active Park Assist Sensor, Left Location - Left Front Corner Of Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 227: Identifying C1608 Active Park Assist Sensor, Right Location - Right Front Corner Of Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 228: Identifying C2004 Blower Motor Location - On HVAC Case, Right Side

Courtesy of FORD MOTOR CO.

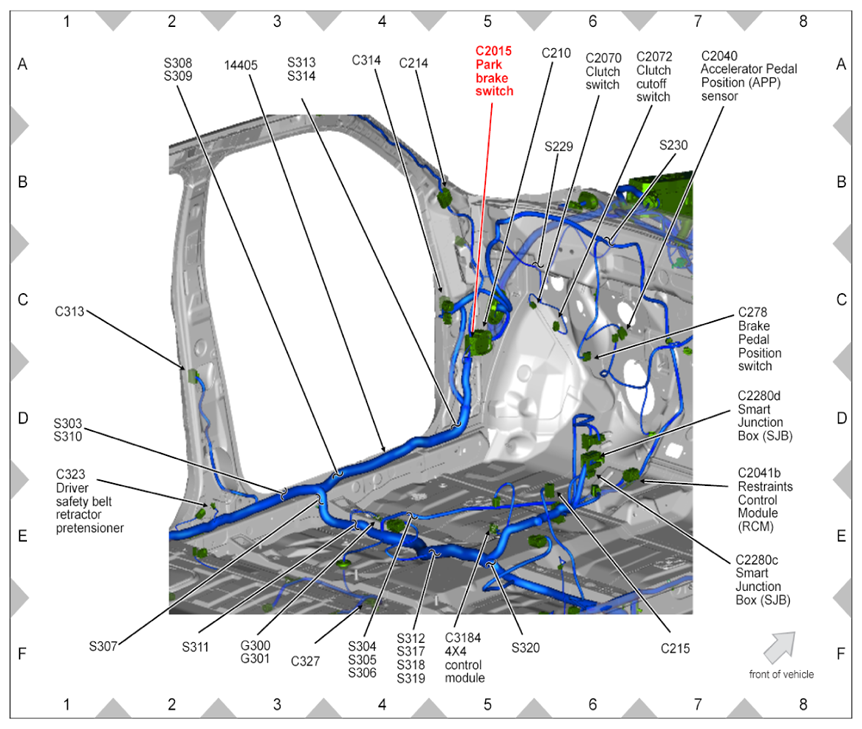

Fig 229: Identifying C2015 Park Brake Switch Location - Under Dash Panel On Park Brake

Courtesy of FORD MOTOR CO.

Fig 230: Identifying C2033 Power Point Location - Behind Instrument Panel Center

Courtesy of FORD MOTOR CO.

Fig 231: Identifying C2035 Active Park Assist Switch Location - Behind Instrument Panel Center

Courtesy of FORD MOTOR CO.

Fig 232: Identifying C2040 Accelerator Pedal Position (APP) Sensor Location - Behind Left Side Of Instrument Panel, Near Pedal Support

Courtesy of FORD MOTOR CO.

Fig 233: Identifying C2041A Restraints Control Module (RCM) Location - Under Center Console

Courtesy of FORD MOTOR CO.

Fig 234: Identifying C2041B Restraints Control Module (RCM) Location - Under Center Of Instrument Panel

Courtesy of FORD MOTOR CO.

Fig 235: Identifying C2065 Illumination Dimmer Location - Behind Instrument Panel Left Side

Courtesy of FORD MOTOR CO.

Fig 236: Identifying C2070 Clutch Switch Location - Behind Left Side Of Instrument Panel, Near Pedal Support

Courtesy of FORD MOTOR CO.

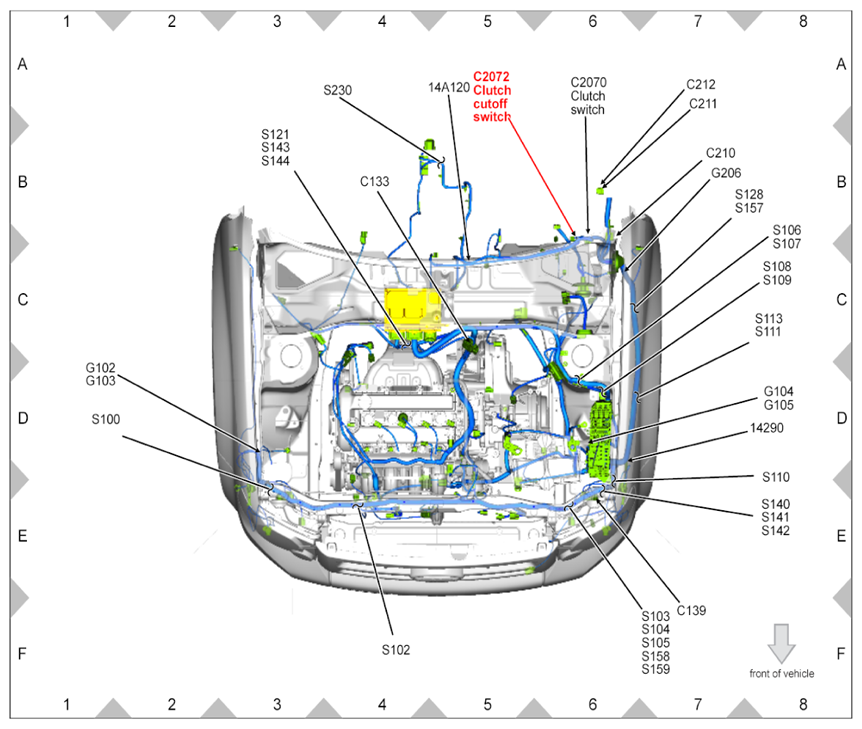

Fig 237: Identifying C2072 Clutch Cutoff Switch Location - Behind Left Side Of Instrument Panel, Near Pedal Support

Courtesy of FORD MOTOR CO.

Fig 238: Identifying C2091 Temperature Blend Door Actuator, Driver Location - On HVAC Case, Bottom

Courtesy of FORD MOTOR CO.

Fig 239: Identifying C2092 Temperature Blend Door Actuator, Passenger Location - On HVAC Case, Top

Courtesy of FORD MOTOR CO.

Fig 240: Identifying C2096 Floor Shifter Location - Under Center Console

Courtesy of FORD MOTOR CO.

Fig 241: Identifying C2123 Front Display Interface Module (FDIM) Location - Behind Instrument Panel Upper Center

Courtesy of FORD MOTOR CO.

Fig 242: Identifying C2231A Power Steering Control Module (PSCM) Location - Behind Instrument Panel Left Side

Courtesy of FORD MOTOR CO.

Fig 243: Identifying C2231B Power Steering Control Module (PSCM) Location - On Steering Column

Courtesy of FORD MOTOR CO.

Fig 244: Identifying C2261 Air Inlet Mode Door Actuator Location - On HVAC Case, Right Side Top

Courtesy of FORD MOTOR CO.

Fig 245: Identifying C2278 Mode Door Actuator Location - On HVAC Case, Left Side

Courtesy of FORD MOTOR CO.

Fig 246: Identifying C2280A Smart Junction Box (SJB) Location - Under Center Of Instrument Panel

Courtesy of FORD MOTOR CO.

Fig 247: Identifying C2280B Smart Junction Box (SJB) Location - Under Center Of Instrument Panel

Courtesy of FORD MOTOR CO.

Fig 248: Identifying C2280C Smart Junction Box (SJB) Location - Under Center Of Instrument Panel

Courtesy of FORD MOTOR CO.

Fig 249: Identifying C2280D Smart Junction Box (SJB) Location - Under Center Of Instrument Panel

Courtesy of FORD MOTOR CO.

Fig 250: Identifying C2280E Smart Junction Box (SJB) Location - Under Center Of Instrument Panel

Courtesy of FORD MOTOR CO.

Fig 251: Identifying C2280F Smart Junction Box (SJB) Location - Under Center Of Instrument Panel

Courtesy of FORD MOTOR CO.

Fig 252: Identifying C2280G Smart Junction Box (SJB) Location - Under Center Of Instrument Panel

Courtesy of FORD MOTOR CO.

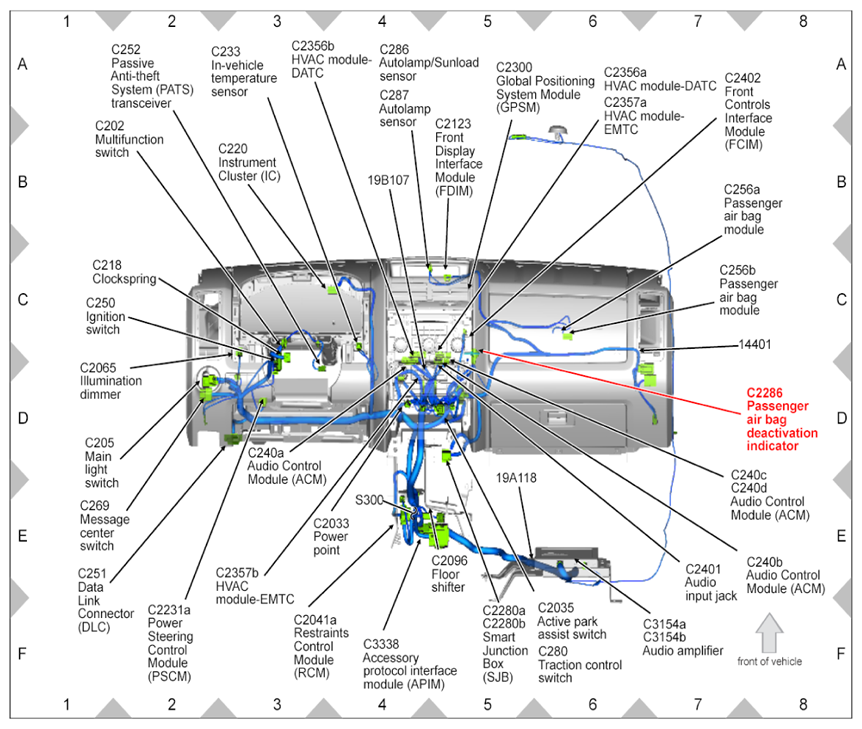

Fig 253: Identifying C2286 Passenger Air Bag Deactivation Indicator Location - Behind Instrument Panel Center

Courtesy of FORD MOTOR CO.

Fig 254: Identifying C2300 Global Positioning System Module (GPSM) Location - Behind Instrument Panel Upper Center

Courtesy of FORD MOTOR CO.

Fig 255: Identifying C2356A HVAC Module-DATC Location - Behind Instrument Panel Center

Courtesy of FORD MOTOR CO.

Fig 256: Identifying C2356B HVAC Module-DATC Location - Behind Instrument Panel Center

Courtesy of FORD MOTOR CO.

Fig 257: Identifying C2357A HVAC Module-EMTC Location - Behind Instrument Panel Center

Courtesy of FORD MOTOR CO.

Fig 258: Identifying C2357B HVAC Module-EMTC Location - Behind Instrument Panel Center

Courtesy of FORD MOTOR CO.

Fig 259: Identifying C2401 Audio Input Jack Location - Behind Instrument Panel Upper Center

Courtesy of FORD MOTOR CO.

Fig 260: Identifying C2402 Front Controls Interface Module (FCIM) Location - Behind Instrument Panel Center

Courtesy of FORD MOTOR CO.

Fig 261: Identifying C3007 Connector Location - Under Center Console, Center

Courtesy of FORD MOTOR CO.

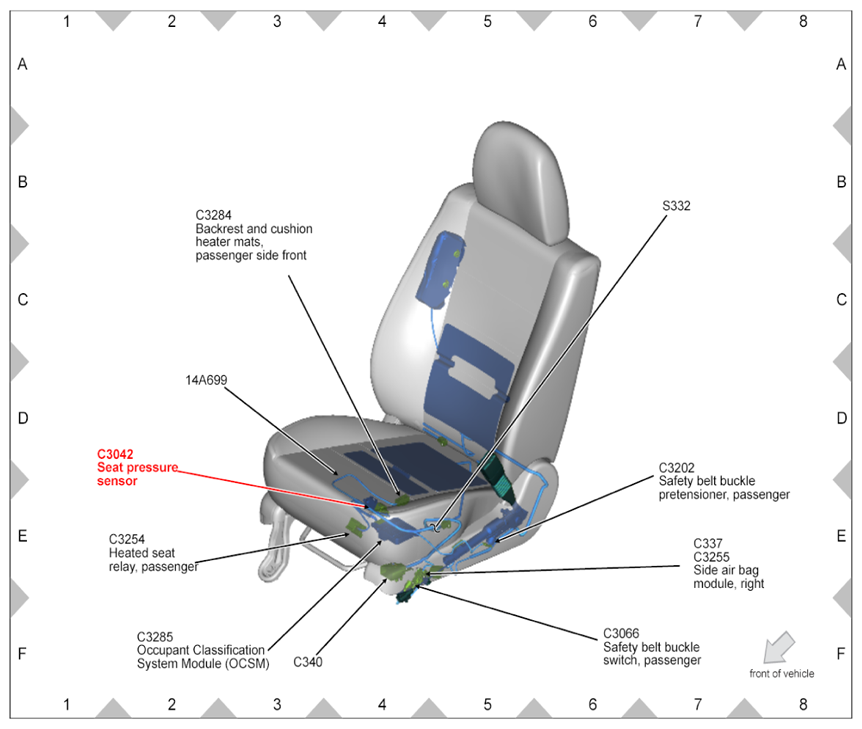

Fig 262: Identifying C3042 Seat Pressure Sensor Location - In Passenger Seat, Center

Courtesy of FORD MOTOR CO.

Fig 263: Identifying C3065 Safety Belt Buckle Switch, Driver Location - In Driver Seat, Right Side

Courtesy of FORD MOTOR CO.

Fig 264: Identifying C3066 Safety Belt Buckle Switch, Passenger Location - In Passenger Seat, Left Side

Courtesy of FORD MOTOR CO.

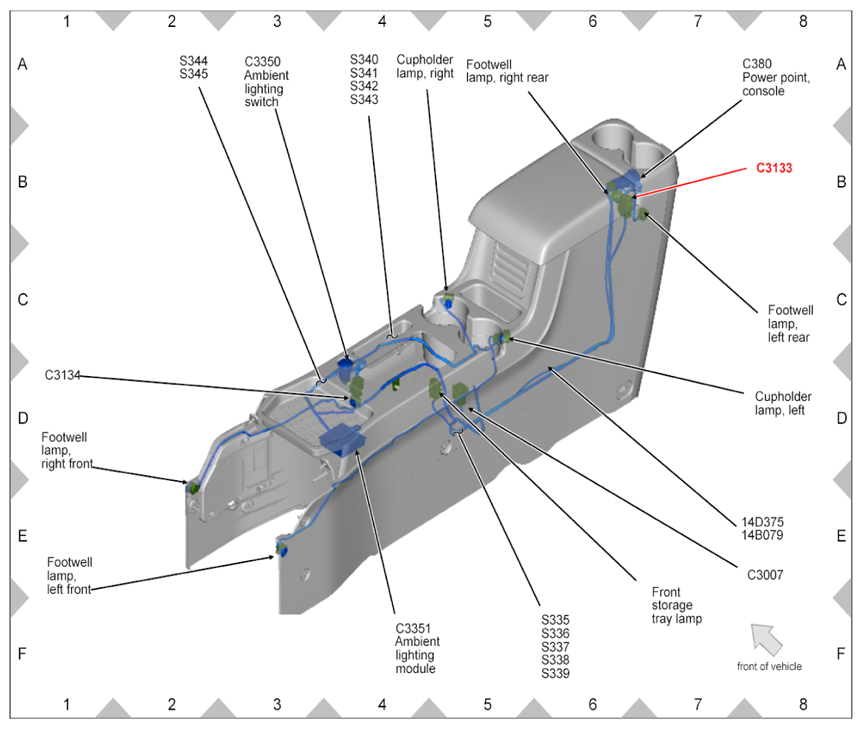

Fig 265: Identifying C3133 Connector Location - Center Console, Rear

Courtesy of FORD MOTOR CO.

Fig 266: Identifying C3134 Connector Location - Under Center Console

Courtesy of FORD MOTOR CO.

Fig 267: Identifying C3154A Audio Amplifier Location - Under Passenger Seat

Courtesy of FORD MOTOR CO.

Fig 268: Identifying C3154B Audio Amplifier Location - Under Passenger Seat

Courtesy of FORD MOTOR CO.

Fig 269: Identifying C3184 4X4 Control Module Location - Under Center Console

Courtesy of FORD MOTOR CO.

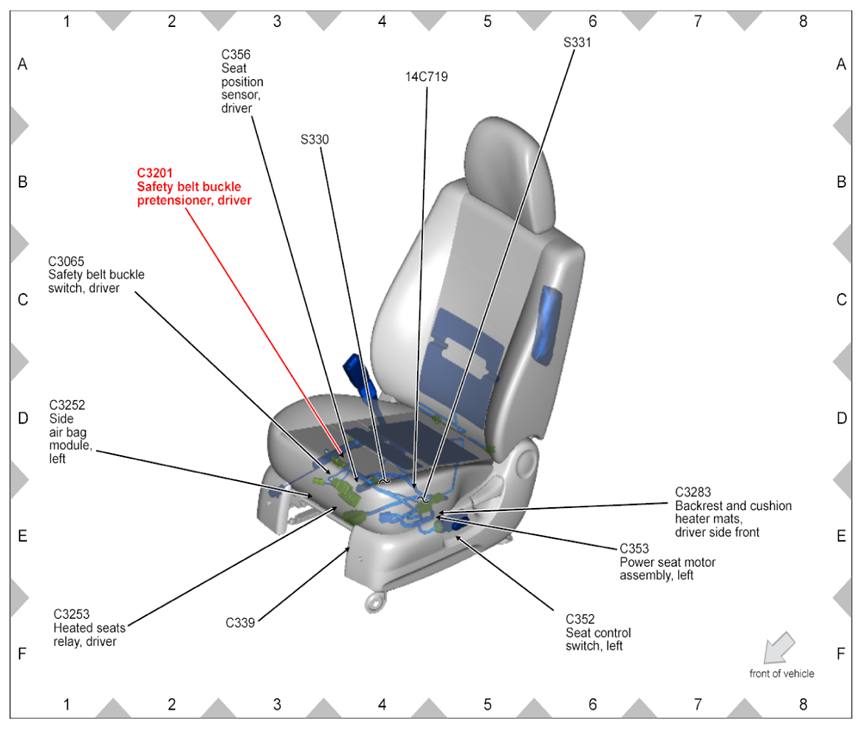

Fig 270: Identifying C3201 Safety Belt Buckle Pretensioner, Driver Location - In Driver Seat, Right Side

Courtesy of FORD MOTOR CO.

Fig 271: Identifying C3202 Safety Belt Buckle Pretensioner, Passenger Location - In Passenger Seat, Left Side

Courtesy of FORD MOTOR CO.

Fig 272: Identifying C3209 Side Impact Sensor, Driver 1 Location - Bottom Left B-Pillar

Courtesy of FORD MOTOR CO.

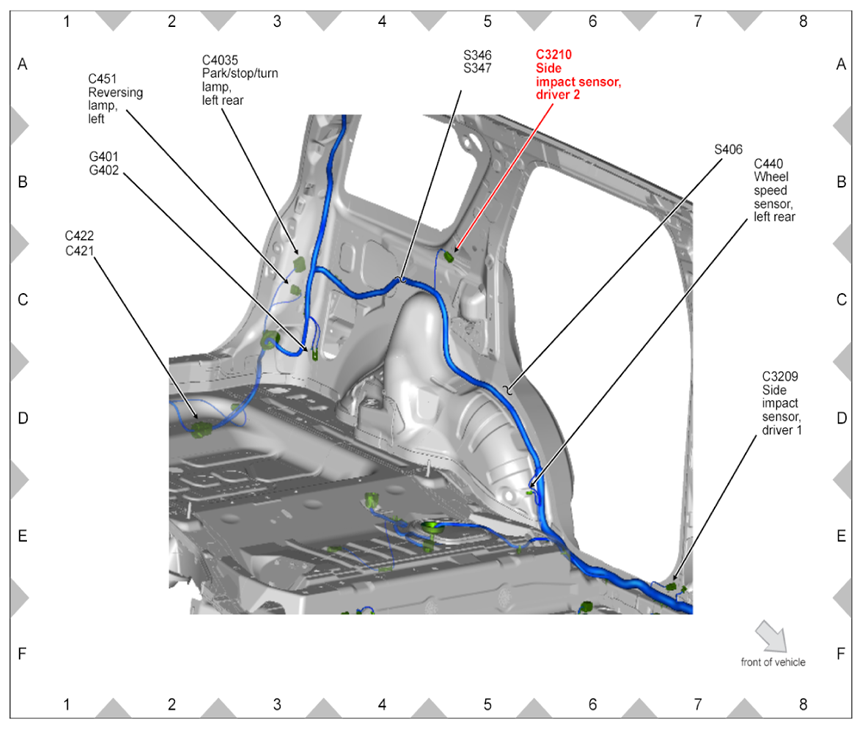

Fig 273: Identifying C3210 Side Impact Sensor, Driver 2 Location - Left Side Of Cargo Area, Near Wheel House

Courtesy of FORD MOTOR CO.

Fig 274: Identifying C3211 Side Impact Sensor, Passenger 1 Location - Bottom Right Side B-Pillar

Courtesy of FORD MOTOR CO.

Fig 275: Identifying C3212 Side Impact Sensor, Passenger 2 Location - Right Side Of Cargo Area, Near Top Of Wheel House

Courtesy of FORD MOTOR CO.

Fig 276: Identifying C3252 Side Air Bag Module, Left Location - In Seat Back

Courtesy of FORD MOTOR CO.

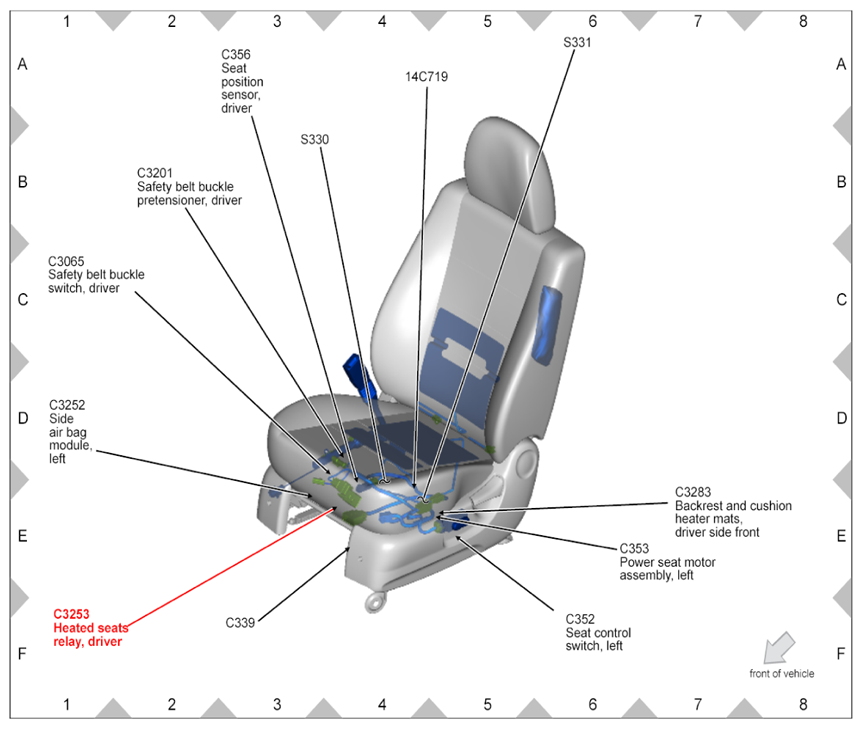

Fig 277: Identifying C3253 Heated Seat Relay, Driver Location - In Driver Seat, Front

Courtesy of FORD MOTOR CO.

Fig 278: Identifying C3254 Heated Seat Relay, Passenger Location - In Passenger Seat, Front

Courtesy of FORD MOTOR CO.

Fig 279: Identifying C3255 Side Air Bag Module, Right Location - In Passenger Seat, Left Side

Courtesy of FORD MOTOR CO.

Fig 280: Identifying C3283 Backrest And Cushion Heater Mats, Driver Side Front Location - In Driver Seat, Left Side

Courtesy of FORD MOTOR CO.

Fig 281: Identifying C3284 Backrest And Cushion Heater Mats, Passenger Side Front Location - In Passenger Seat, Center

Courtesy of FORD MOTOR CO.

Fig 282: Identifying C3285 Occupant Classification System Module (OCSM) Location - In Passenger Seat, Center

Courtesy of FORD MOTOR CO.

Fig 283: Identifying C3338 Accessory Protocol Interface Module (APIM) Location - Under Center Console

Courtesy of FORD MOTOR CO.

Fig 284: Identifying C3350 Ambient Lighting Switch Location - Center Console, Top

Courtesy of FORD MOTOR CO.

Fig 285: Identifying C3351 Ambient Lighting Module Location - Under Center Console

Courtesy of FORD MOTOR CO.

Fig 286: Identifying C3355 Evaporative Emission (EVAP) Canister Purge Valve Location - Under Left Center Of Body

Courtesy of FORD MOTOR CO.

Fig 287: Identifying C4009 Parking Aid Sensor, Outer Left Location - Rear Bumper

Courtesy of FORD MOTOR CO.

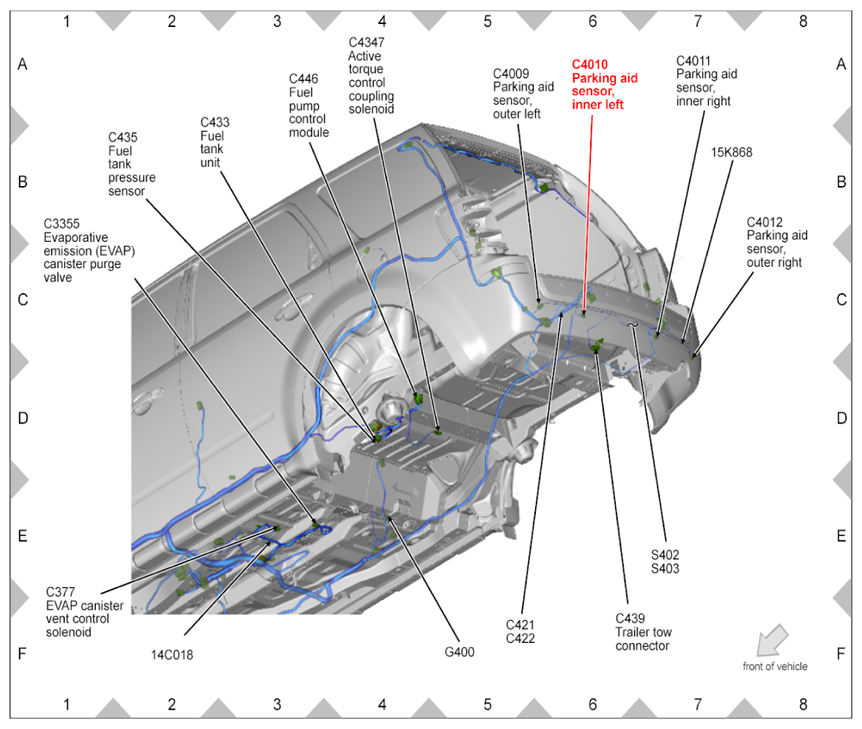

Fig 288: Identifying C4010 Parking Aid Sensor, Inner Left Location - Rear Bumper

Courtesy of FORD MOTOR CO.

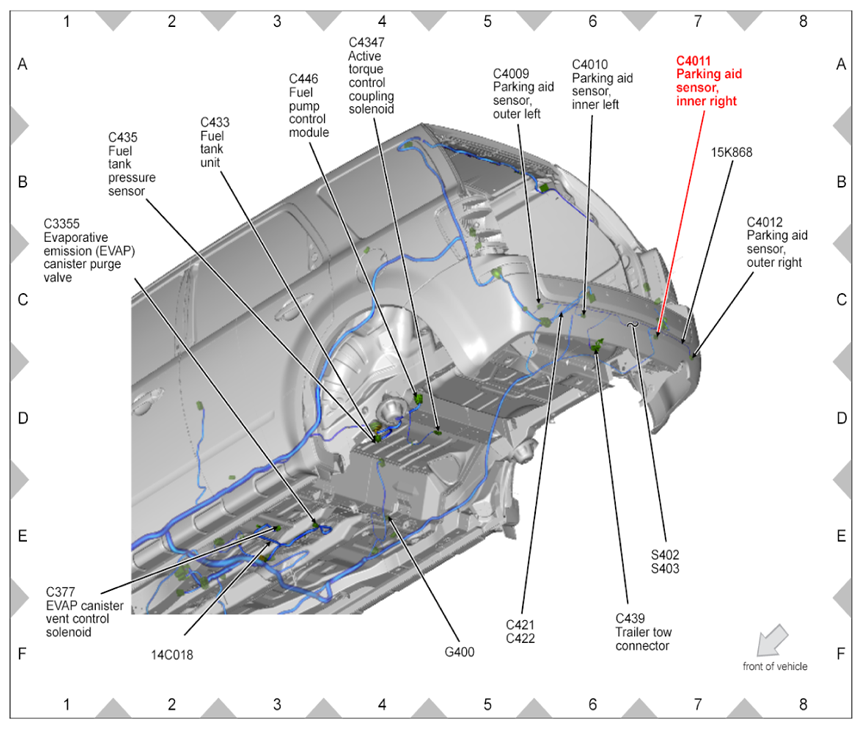

Fig 289: Identifying C4011 Parking Aid Sensor, Inner Right Location - Rear Bumper

Courtesy of FORD MOTOR CO.

Fig 290: Identifying C4012 Parking Aid Sensor, Outer Right Location - Rear Bumper

Courtesy of FORD MOTOR CO.

Fig 291: Identifying C4014 Parking Aid Module (PAM) Location - Right Side Of Cargo Area, Behind Wheel House

Courtesy of FORD MOTOR CO.

Fig 292: Identifying C4015 Parking Aid Speaker Location - Right Side Of Cargo Area, Behind Wheel House

Courtesy of FORD MOTOR CO.

Fig 293: Identifying C4032 Park/Stop/Turn Lamp, Right Rear Location - Right Rear Corner Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 294: Identifying C4035 Park/Stop/Turn Lamp, Left Rear Location - Left Rear Corner Of Vehicle

Courtesy of FORD MOTOR CO.

Fig 295: Identifying C4039 Liftgate Glass Release Switch Location - Center Of Liftgate, Below Rear Window

Courtesy of FORD MOTOR CO.

Fig 296: Identifying C4234 Rear View Camera Location - Center Of Liftgate, Below Rear Window

Courtesy of FORD MOTOR CO.

Fig 297: Identifying C4347 Active Torque Control Coupling Solenoid Location - Under Left Rear Of Body

Courtesy of FORD MOTOR CO.

Fig 298: Identifying C9006 Safety Canopy, Left Location - Left D Pillar

Courtesy of FORD MOTOR CO.

Fig 299: Identifying C9007 Safety Canopy, Right Location - Right D Pillar

Courtesy of FORD MOTOR CO.

Fig 300: Identifying C9012 Auto-Dimming Interior Mirror Location - Front Center Of Headliner

Courtesy of FORD MOTOR CO.

Fig 301: Identifying C9030 Auto-Dimming Interior Mirror Location - Front Center Of Headliner

Courtesy of FORD MOTOR CO.

Fig 302: Identifying C9039 Auto-Dimming Interior Mirror Location - Front Center Of Headliner

Courtesy of FORD MOTOR CO.
