Instrument Panel Dimmer Switch

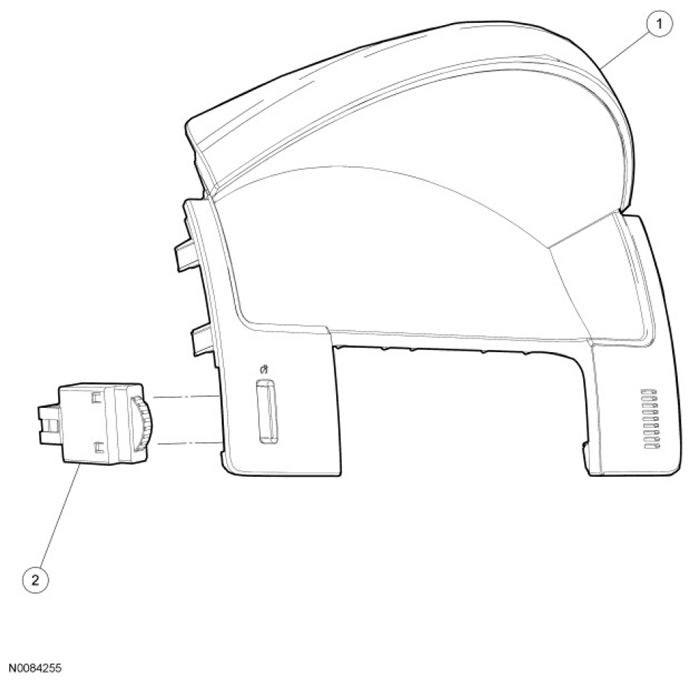

Fig 1: Identifying Instrument Panel Dimmer Switch And Instrument Cluster Finish Panel
G07443136Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 78044D70 Instrument cluster finish panel
2 11691 Instrument panel dimmer switch

Removal and Installation

  1. Remove the instrument cluster finish panel. For additional information, refer to INSTRUMENT PANEL article.
    2. NOTE: The instrument panel dimmer switch is removed by releasing the tabs and pulling from behind.
  2. Release the tabs and remove the instrument panel dimmer switch.
  3. To install, reverse the removal procedure.
