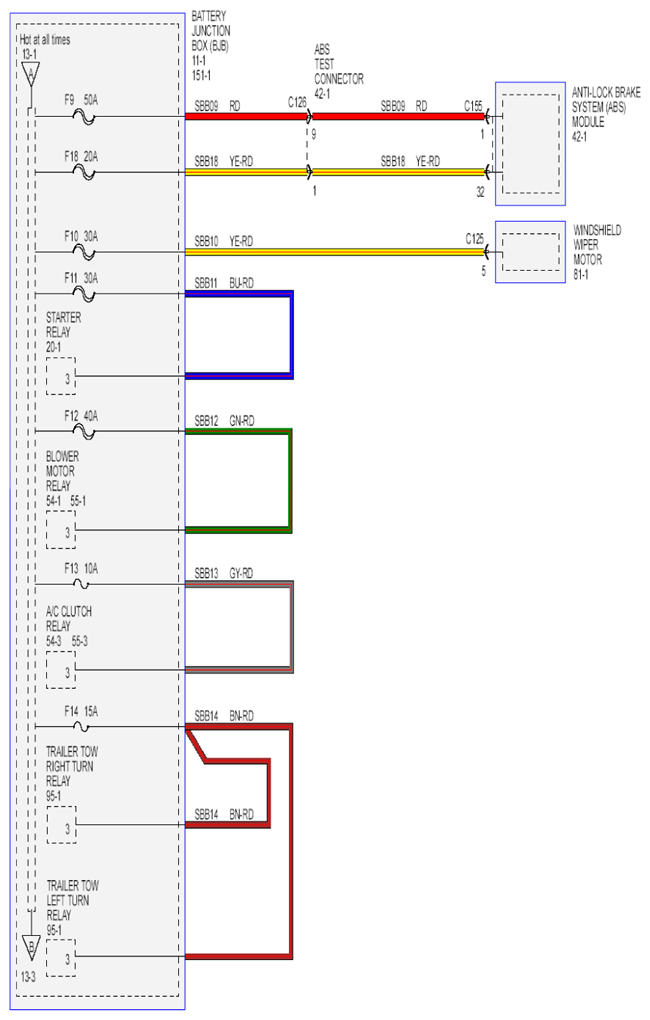

Home >> Ford >> 2011 >> Escape Base, 2.5 7, AWD, Standard >> Repair and Diagnosis (Single Page) >> Electrical >> Body Electrical >> OEM Wiring Diagrams (Except Hybrid) >> Power Distribution_SJB >> F9, F10, F11, F12, F13, F14, F15
