Escape Base, 2.5 7, AWD, Standard
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Body Electrical
>>
OEM Wiring Diagrams (Except Hybrid)
>>
Horn_Cigar Lighter
Horn_Cigar Lighter

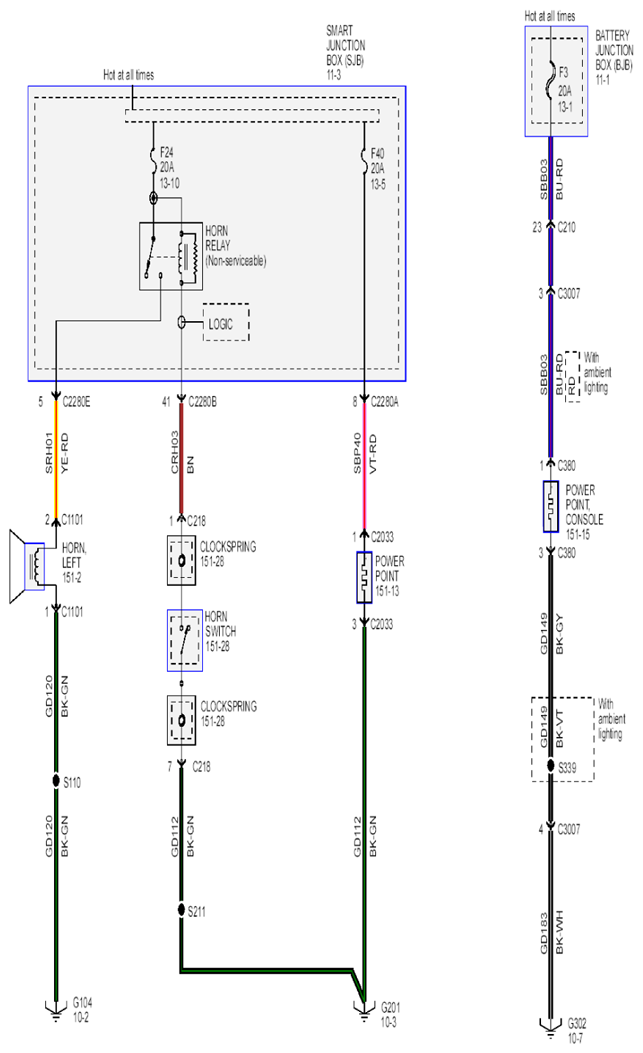

Fig 1: Horn Cigar Lighter Schematic
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
