OEM Wiring Diagrams (Except Hybrid): Headlamps

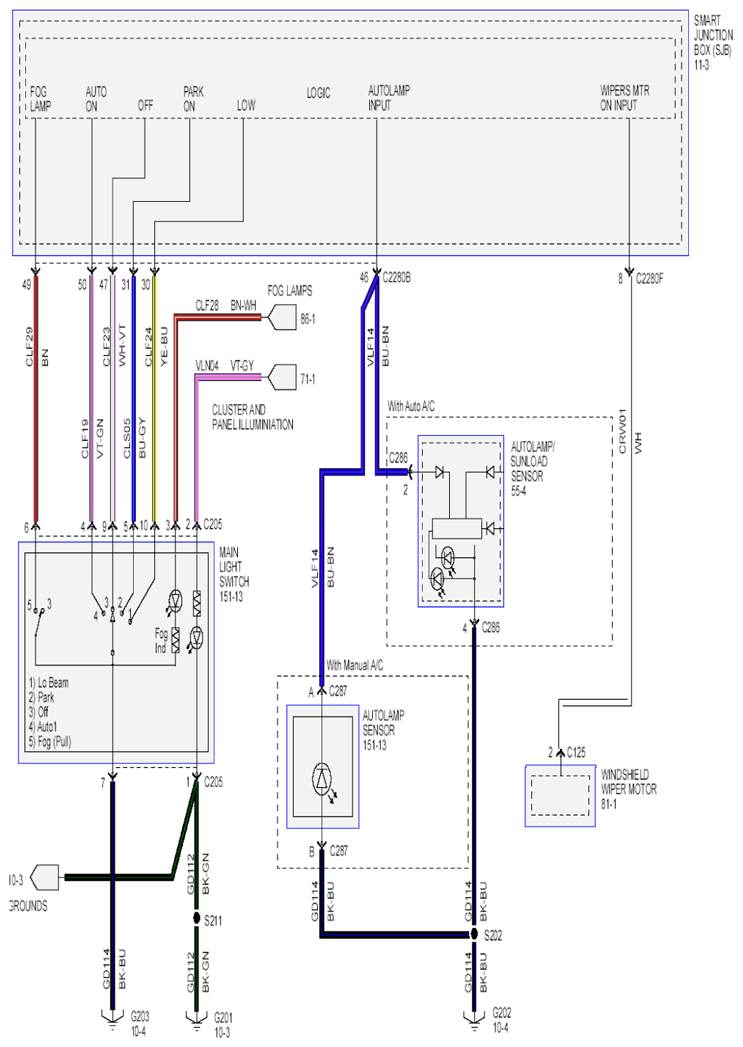

Fig 1: Headlamps Schematic (1 Of 2)

G07855385

Courtesy of FORD MOTOR CO.

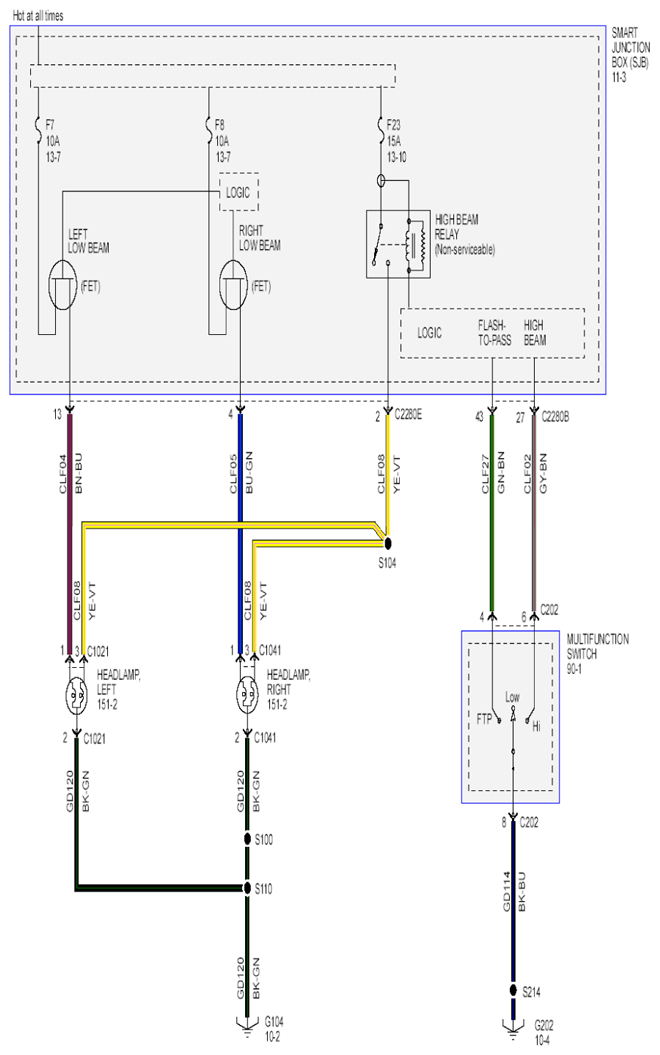

Fig 2: Headlamps Schematic (2 Of 2)

G07855386

Courtesy of FORD MOTOR CO.
