OEM Wiring Diagrams (Except Hybrid): Grounds: G401

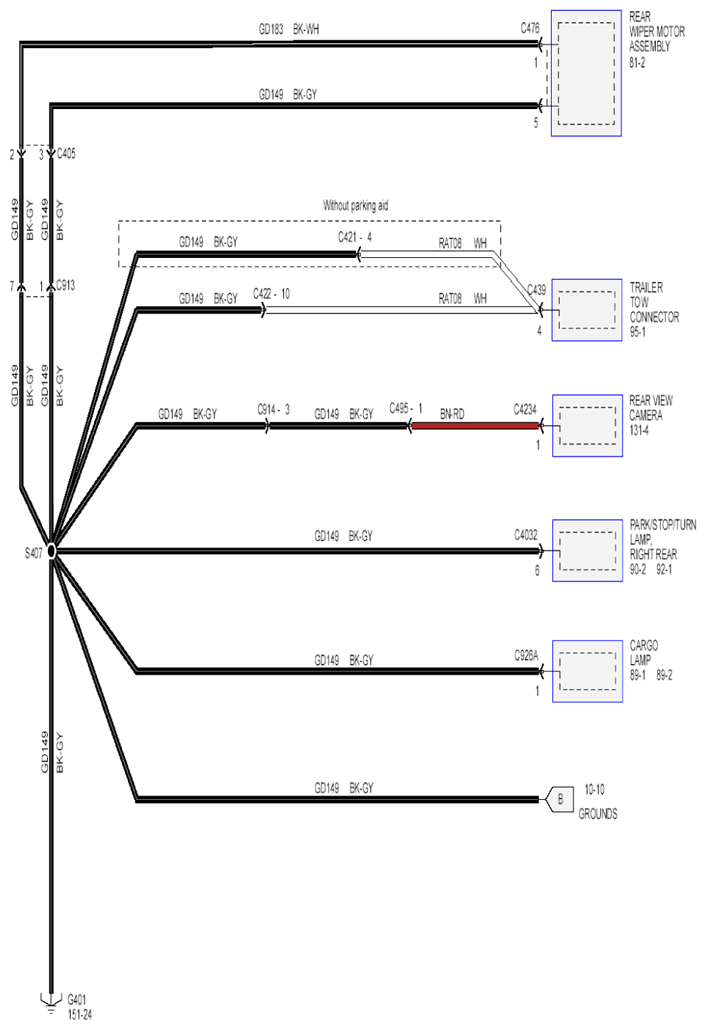

Fig 1: Grounds Schematic - G401 (1 Of 2)

G07855312

Courtesy of FORD MOTOR CO.

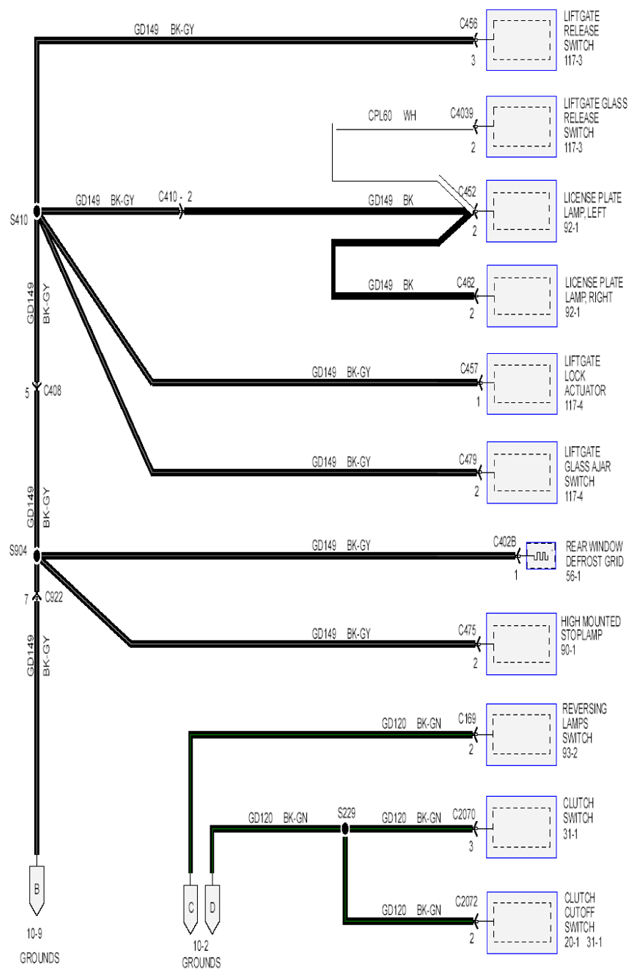

Fig 2: Grounds Schematic - G401 (2 Of 2)

G07855313

Courtesy of FORD MOTOR CO.
