Fog Lamps
Fog Lamps

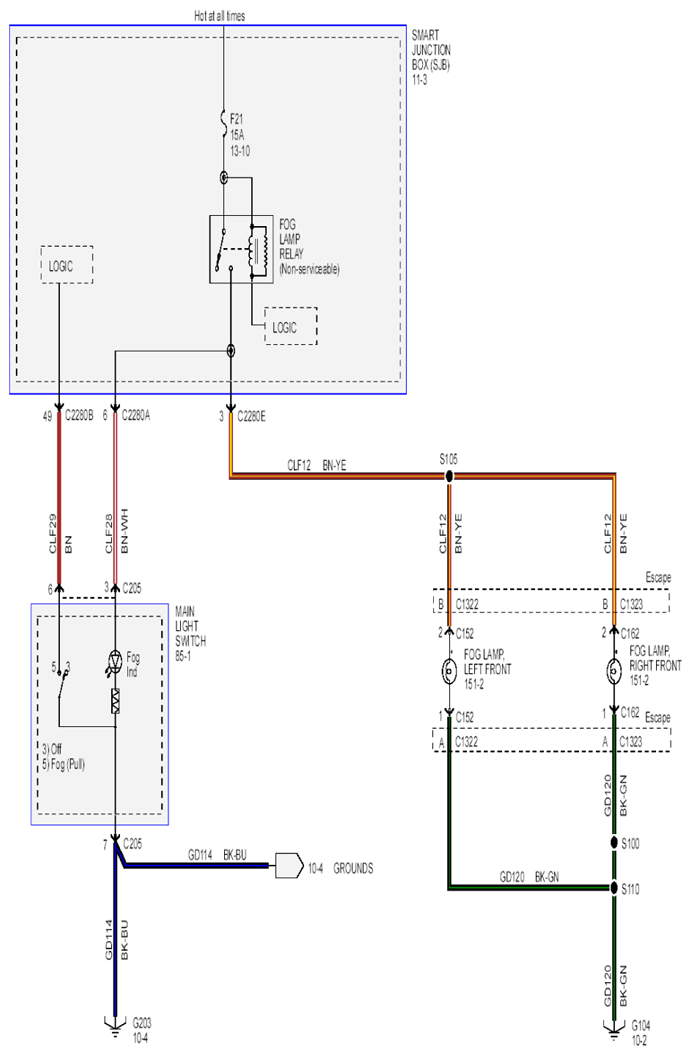

Fig 1: Fog Lamps Schematic
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
