Evaporative Emissions Canister Purge Valve Connector End View (C3355)

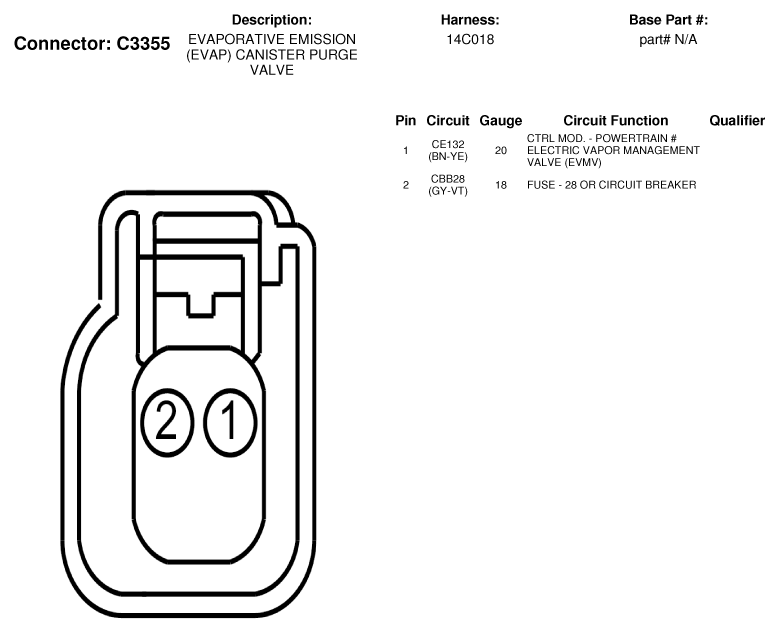

Fig 1: Evaporative Emissions Canister Purge Valve Connector End View (C3355)

G07334098

Courtesy of FORD MOTOR CO.
