Evaporative Emissions Canister Purge Valve Connector End View (C123)

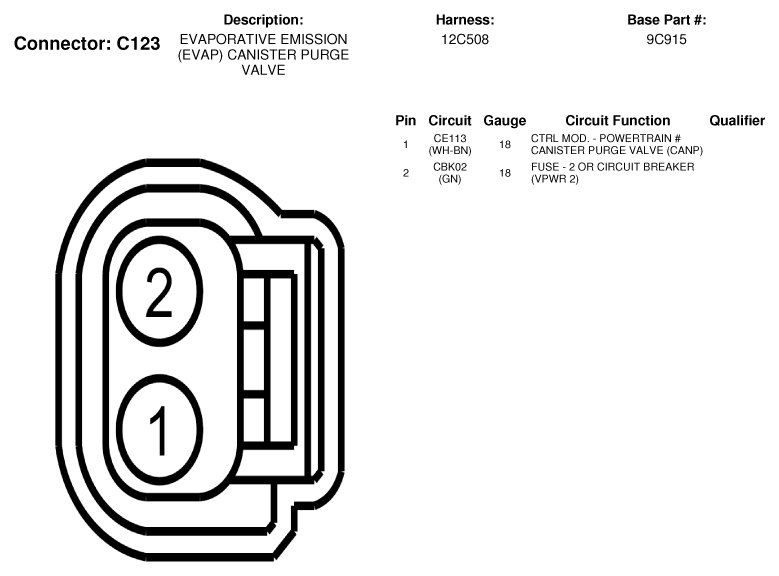

Fig 1: Evaporative Emissions Canister Purge Valve Connector End View (C123)

G07333849

Courtesy of FORD MOTOR CO.
