Pinpoint Test C: DTC C1145 (RF), C1155 (LF), C1165 (RR) Or C1175 (LR)

NOTE: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.
  1. C1 CHECK FOR FAULT REPEATABILITY
    NOTE: The Active Wheel Speed Sensor Tester cannot be used for the rear wheel speed sensors on vehicles equipped with Active Park Assist.
    • Connect the scan tool.
    • Ignition ON.
    • Using the scan tool, clear the Continuous Memory Diagnostic Trouble Codes (CMDTCs).
    • Drive the vehicle at least 16 km/h (10 mph).
    • Enter the following diagnostic mode on the scan tool: Self Test - ABS Module.
    • Is DTC C1145, C1155, C1165 or C1175 retrieved?
    • Yes:  If the Active Wheel Speed Sensor Tester is available, GO to C2  . If the Active Wheel Speed Sensor Tester is not available, GO to  C4.
    • No:  INSPECT the wheel speed sensors, wheel speed sensor wiring and wheel speed sensor tone rings. REPAIR or INSTALL new as necessary. If any other DTCs are retrieved, GO to the ABS MODULE DTC CHART  in this service information.
  2. C2 CHECK THE ABS MODULE OUTPUT USING THE ACTIVE WHEEL SPEED SENSOR TESTER
    • Ignition OFF.
    • Disconnect: Suspect Wheel Speed Sensor.
    • Connect the Active Wheel Speed Sensor Tester to the wheel speed sensor connectors.
    • Ignition ON.
    • Select the correct system polarity on the Active Wheel Speed Sensor Tester and turn the power switch to the ON position.
    • Is the module output LED illuminated?
    • Yes:  GO to C3  .
    • No:  GO to  C7.
  3. C3 CHECK THE WHEEL SPEED SENSOR OUTPUT WITH THE ACTIVE WHEEL SPEED SENSOR TESTER
    • Raise the suspect wheel until it can spin freely. Refer to JACKING & LIFTING article.
    • While monitoring the Active Wheel Speed Sensor Tester, slowly spin the suspect wheel.
    • Do the sensor output LEDs illuminate and flash and is the current overload LED not illuminated?
    • Yes:  The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector. CLEAR the DTCs. REPEAT the self-test.
    • No:  If the current level LED is not illuminated and the sensor output LEDs do not illuminate or if the current level LED is illuminated red, INSTALL a new wheel speed sensor. For the front wheel speed sensor, REFER to WHEEL SPEED SENSOR - FRONT  in this service information. For the rear wheel speed sensor, REFER to WHEEL SPEED SENSOR - REAR  in this service information. CLEAR the DTCs. REPEAT the self-test.

      If the current level LED is not illuminated and the sensor output LEDs illuminate green but do not flash, INSPECT the wheel speed sensor tone ring and INSTALL new if necessary. For the front wheel speed sensor tone ring, REFER to WHEEL SPEED SENSOR RING - FRONT  in this service information. For the rear wheel speed sensor tone ring, REFER to WHEEL SPEED SENSOR RING - REAR  in this service information. If the tone ring is OK, INSTALL a new wheel speed sensor. For the front wheel speed sensor, REFER to WHEEL SPEED SENSOR - FRONT  in this service information. For the rear wheel speed sensor, REFER to WHEEL SPEED SENSOR - REAR  in this service information. CLEAR the DTCs. REPEAT the self-test.

  4. C4 CHECK THE ABS MODULE OUTPUT
    • Connect: ABS Module C155.
    • Ignition ON.
    • For DTC C1145  , measure the voltage between RF wheel speed sensor C160-1, circuit RCA19 (VT), harness side and RF wheel speed sensor C160-2, circuit VCA05 (GY/VT), harness side.
    • For DTC C1155  , measure the voltage between LF wheel speed sensor C150-1, circuit RCA17 (YE), harness side and LF wheel speed sensor C150-2, circuit VCA03 (VT/WH), harness side.
    • For DTC C1165  , measure the voltage between RR wheel speed sensor C426-2, circuit RCA20 (BN), harness side and RR wheel speed sensor C426-1, circuit VCA06 (WH/OG), harness side.
    • For DTC C1175  , measure the voltage between LR wheel speed sensor C440-2, circuit RCA18 (BN/GN), harness side and LR wheel speed sensor C440-1, circuit VCA04 (BU/OG), harness side.
      Fig 1: Measuring Voltage Between RF Wheel Speed Sensor C160-1, Circuit RCA19 (VT) And RF Wheel Speed Sensor C160-2, Circuit VCA05 (GY/VT)
      G07438788Courtesy of FORD MOTOR CO.
    • Are the voltages greater than 10 volts?
    • Yes:  GO to C5  .
    • No:  GO to  C6.
  5. C5 CHECK THE WHEEL SPEED CIRCUITS FOR A SHORT TO VOLTAGE
    NOTE: No measurements should be taken with the wheel speed sensor connected. Damage to the wheel speed sensor can result.
    NOTE: Both circuits must be checked for each DTC.
    • For vehicles equipped with a 3.0L engine  , with the vehicle in NEUTRAL, position it on a hoist. Refer to JACKING & LIFTING article.
    • Ignition OFF.
    • Disconnect: ABS Module C155.
    • Disconnect: Suspect Wheel Speed Sensor.
    • Ignition ON.
    • For DTC C1145  , measure the voltage between ground and:
      • ABS module C155-34, circuit VCA05 (GY/VT), harness side.
      • ABS module C155-33, circuit RCA19 (VT), harness side.
        Fig 2: Measuring Voltage Between Ground And ABS Module C155-34, Circuit VCA05 (GY/VT), Harness Side
        G07438789Courtesy of FORD MOTOR CO.
    • For DTC C1155  , measure the voltage between ground and:
      • ABS module C155-45, circuit VCA03 (VT/WH), harness side.
      • ABS module C155-46, circuit RCA17 (YE), harness side.
        Fig 3: Measuring Voltage Between Ground And ABS Module C155-45, Circuit VCA03 (VT/WH), Harness Side
        G07438790Courtesy of FORD MOTOR CO.
    • For DTC C1165  , measure the voltage between ground and:
      • ABS module C155-43, circuit VCA06 (WH/OG), harness side.
      • ABS module C155-42, circuit RCA20 (BN), harness side.
        Fig 4: Measuring Voltage Between Ground And ABS Module C155-43, Circuit VCA06 (WH/OG), Harness Side
        G07438791Courtesy of FORD MOTOR CO.
    • For DTC C1175  , measure the voltage between ground and:
      • ABS module C155-36, circuit VCA04 (BU/OG), harness side.
      • ABS module C155-37, circuit RCA18 (BN/GN), harness side.
        Fig 5: Measuring Voltage Between Ground And ABS Module C155-36, Circuit VCA04 (BU/OG), Harness Side
        G07438792Courtesy of FORD MOTOR CO.
    • Is any voltage present?
  6. C6 CHECK THE WHEEL SPEED CIRCUITS FOR A SHORT TO GROUND
    NOTE: Both circuits must be checked for each DTC.
    • Ignition OFF.
    • For DTC C1145  , measure the resistance between ground and:
      • ABS module C155-34, circuit VCA05 (GY/VT), harness side.
      • ABS module C155-33, circuit RCA19 (VT), harness side.
        Fig 6: Measuring Resistance Between Ground And ABS Module C155-34, Circuit VCA05 (GY/VT), Harness Side
        G07438793Courtesy of FORD MOTOR CO.
    • For DTC C1155  , measure the resistance between ground and:
      • ABS module C155-45, circuit VCA03 (VT/WH), harness side.
      • ABS module C155-46, circuit RCA17 (YE), harness side.
        Fig 7: Measuring Resistance Between Ground And ABS Module C155-45, Circuit VCA03 (VT/WH), Harness Side
        G07438794Courtesy of FORD MOTOR CO.
    • For DTC C1165  , measure the resistance between ground and:
      • ABS module C155-43, circuit VCA06 (WH/OG), harness side.
      • ABS module C155-42, circuit RCA20 (BN), harness side.
        Fig 8: Measuring Resistance Between Ground And ABS Module C155-43, Circuit VCA06 (WH/OG), Harness Side
        G07438795Courtesy of FORD MOTOR CO.
    • For DTC C1175  , measure the resistance between ground and:
      • ABS module C155-36, circuit VCA04 (BU/OG), harness side.
      • ABS module C155-37, circuit RCA18 (BN/GN), harness side.
        Fig 9: Measuring Resistance Between Ground And ABS Module C155-37, Circuit RCA18 (BN/GN), Harness Side
        G07438796Courtesy of FORD MOTOR CO.
    • Are the resistances greater than 10,000 ohms?
    • Yes:  GO to C7  .
    • No:  REPAIR the affected circuit(s). CLEAR the DTCs. REPEAT the self-test.
  7. C7 CHECK THE WHEEL SPEED CIRCUITS FOR AN OPEN
    NOTE: Both circuits must be checked for each DTC.
    • For vehicles equipped with a 3.0L engine  , with the vehicle in NEUTRAL, position it on a hoist. Refer to JACKING & LIFTING article.
    • Ignition OFF.
    • Disconnect: ABS Module C155 (if not previously disconnected).
    • Disconnect: Suspect Wheel Speed Sensor (if not previously disconnected).
    • Measure the resistance between the ABS module connector, harness side and the suspect wheel speed sensor connector, harness side as indicated in the following chart:
      CIRCUIT REFERENCE CHART

      ABS Module Circuit Wheel Speed Sensor
      DTC C1145 - Wheel Speed Sensor RF Input Circuit Failure
      C155-34 VCA05 (GY/VT) C160-2
      C155-33 RCA19 (VT) C160-1
      DTC C1155 - Wheel Speed Sensor LF Input Circuit Failure
      C155-45 VCA03 (VT/WH) C150-2
      C155-46 RCA17 (YE) C150-1
      DTC C1165 - Wheel Speed Sensor RR Input Circuit Failure
      C155-43 VCA06 (WH/OG) C426-1
      C155-42 RCA20 (BN) C426-2
      DTC C1175 - Wheel Speed Sensor LR Input Circuit Failure
      C155-36 VCA04 (BU/OG) C440-1
      C155-37 RCA18 (BN/GN) C440-2

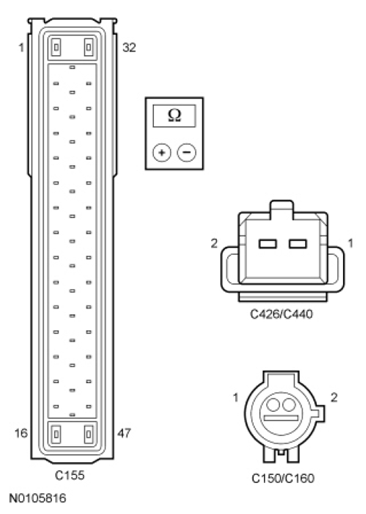

      Fig 10: Checking The Wheel Speed Circuits For An Open
      G07438797Courtesy of FORD MOTOR CO.
    • Are the resistances less than 5 ohms?
    • Yes:  GO to C8  .
    • No:  REPAIR the affected circuit(s). CLEAR the DTCs. REPEAT the self-test.
  8. C8 CHECK WHEEL SPEED SENSOR CIRCUITS FOR A SHORT TOGETHER
    • For DTC C1145  , measure the resistance between RF wheel speed sensor C160-1, circuit RCA19 (VT), harness side and RF wheel speed sensor C160-2, circuit VCA05 (GY/VT), harness side.
    • For DTC C1155  , measure the resistance between LF wheel speed sensor C150-1, circuit RCA17 (YE), harness side and LF wheel speed sensor C150-2, circuit VCA03 (VT/WH), harness side.
    • For DTC C1165  , measure the resistance between RR wheel speed sensor C426-2, circuit RCA20 (BN), harness side and RR wheel speed sensor C426-1, circuit VCA06 (WH/OG), harness side.
    • For DTC C1175  , measure the resistance between LR wheel speed sensor C440-2, circuit RCA18 (BN/GN), harness side and LR wheel speed sensor C440-1, circuit VCA04 (BU/OG), harness side.

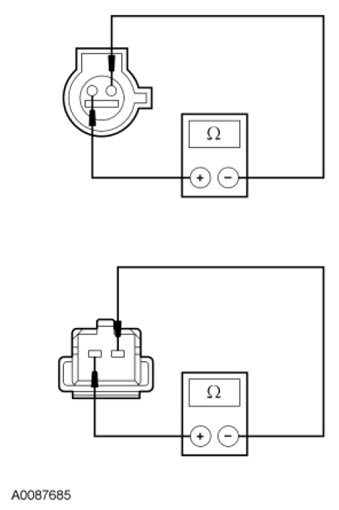

      Fig 11: Checking For Shorted Wheel Speed Sensor Circuits
      G07438798Courtesy of FORD MOTOR CO.
    • Are the resistances greater than 10,000 ohms?
    • Yes:  GO to C9  .
    • No:  REPAIR the affected circuit(s). CLEAR the DTCs. REPEAT the self-test.
  9. C9 CHECK FOR CORRECT ABS MODULE OPERATION
    • Disconnect: ABS Module C155.
    • Check ABS module C155 for:
      • corrosion.
      • pushed-out pins.
      • spread terminals.
    • Connect: ABS Module C155.
    • Connect: Suspect Wheel Speed Sensor.
    • Make sure the connector seats correctly, then operate the system and verify the concern is still present.
    • Is the concern still present?
    • Yes:  INSTALL a new ABS module. REFER to ANTI-LOCK BRAKE SYSTEM (ABS) MODULE  in this service information. TEST the system for normal operation.
    • No:  The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector. CLEAR the DTCs. REPEAT the self-test.
