Removal and Installation

  1. Remove the Instrument Cluster (IC). For additional information, refer to INSTRUMENT CLUSTER (IC)  in this service information.
  2. Remove the 2 IC  lens and mask assembly screws.
  3. Release the 10 tabs on the lens and mask assembly and remove the lens and mask assembly from the IC  .

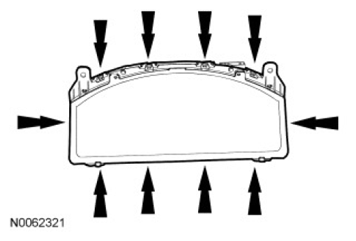

    Fig 1: Locating Tabs On Lens And Mask Assembly
    G07440324Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
